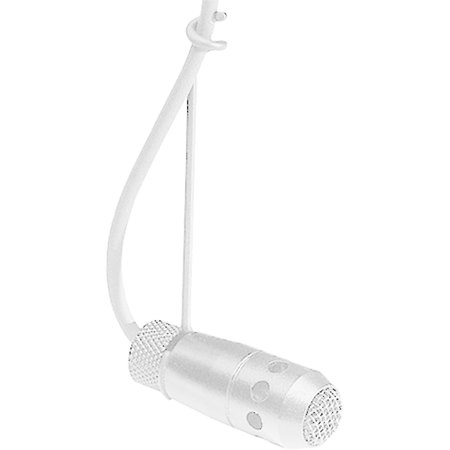

Electro-Voice RE90H Cardioid Hanging Choir Condenser Microphone, White

SKU: EVRE9HW MFR: F.01U.117.404
Earn VIP Reward Points

Key Features

  • Capture pristine audio with this Electro-Voice hanging choir condenser microphone.
  • Ensure clear vocal pickup with the RE90H's cardioid polar pattern, reducing background noise.
  • Achieve optimal sound quality for choirs and ensembles with its wide frequency response.
  • Enjoy easy installation; includes a 25' cable and steel wire hanger for quick setup.
  • Rely on durable performance; this condenser microphone is built to last for years.
  • Experience low-noise operation, perfect for recording or live sound reinforcement.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice RE90H Specifications

  • Color

    RE90HW Low-Gloss White

  • Generating Element

    Condenser, back electret

  • Frequency Response

    75Hz to 15,000Hz

  • Polar Patterns

    Cardioid

  • Sensitivity

    Open Circuit Voltage, 1kHz: 20mV/Pascal

  • Clipping Level (1% THD)

    120dB SPL

  • Equivalent Noise

    25dB SPL "A" weighted (0 dB=20 micropascals)

  • Dynamic Range

    95dB

  • Output Impedance, 1 kHz

    200 Ohms

  • Power Requirements

    Phantom, 9-52VDC

  • Current Consumption

    <5 mA with P48 supply

  • Polarity

    Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm

  • Environmental Conditions

    Relative Humidity 0 to 50%: -20 Degree F to 165 Degree F (-29 Degree C to 74 Degree C)
    Relative Humidity 0 to 95%: -20 Degree F to 135 Degree F (-29 Degree C to 57 Degree C)

  • Cable Length

    25' (7.6m)

  • Dimensions (Dia. x L)

    Transducer: 0.4 x 1.45" (12.7 x 36.8mm)
    Electronics Module: 0.75 x 3.7" (19 x 94mm)

  • Weight

    5.5 oz (157g)

  • UPC Code

    800549985468

About Electro-Voice RE90H

Why choose the Electro-Voice RE90H for your audio needs This premium cardioid hanging choir condenser microphone is a standout member of the RE Series Architectural Microphone Group, renowned for its exceptional sound quality and discreet appearance. The RE90H is meticulously engineered with Electro-Voice's exclusive RF Shield technology, ensuring that your recordings are protected from RFI/GSM interference, delivering crystal-clear audio every time.

Crafted for superior sound reinforcement, the RE90H boasts a back-electret condenser design that captures an extended, flat frequency response, ensuring that every nuance of your choir, instrumental ensemble, or theatrical performance is reproduced with precision. The controlled cardioid polar pattern of this microphone is expertly designed to focus on sound sources directly in front of it, minimizing background noise and feedback, and providing a pure, uncolored sound.

The RE90H is not only acoustically exceptional but also aesthetically versatile. Its sleek white transducer and cable are designed to blend seamlessly into the background, maintaining the visual integrity of your venue or performance space. The microphone's low self-noise and high-output signal level work in concert to deliver a high-quality, low-noise audio experience, ideal for both sound reinforcement and recording applications.

With its exceptionally high sensitivity and uniform cardioid polar response, the RE90H excels in capturing distant sound sources, making it the perfect choice for hanging above choirs, stages, or orchestras. The microphone is powered by any phantom source supplying 9 to 52 volts, offering flexibility in various setups.

Installation is a breeze with the included 25 feet of miniature braided shielded cable, which is designed to maintain the microphone's horizontal stability without additional support. The steel wire hanger and holding nut provided allow for precise aiming of the microphone, ensuring optimal pickup patterns. The wire hanger can be easily adjusted for vertical aiming, while the holding nut enables secure positioning on the horizontal plane.

For fixed installations, it is recommended to allow the microphone cable to hang for at least 24 hours to relax fully, ensuring that the microphone remains accurately positioned for your specific audio requirements. With the Electro-Voice RE90H, you can expect a professional-grade audio solution that captures every detail of your performance with clarity and definition.

Electro-Voice RE90H Features

  • RF Shield provides superior RFI/GSM shielding
  • Cardioid polar pattern
  • Low-gloss white (RE90HW) with matching cable
  • Shielded pre-amp is highly-resistant to electrical noise and radio frequency interference
  • 25' braided, shielded cable maintains microphone's position (not rotation)
  • Three-pin male XLR-type output connector fits with female bulkhead XLR-type connector

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Capture pristine audio with this Electro-Voice hanging choir condenser microphone.
  • Ensure clear vocal pickup with the RE90H's cardioid polar pattern, reducing background noise.
  • Achieve optimal sound quality for choirs and ensembles with its wide frequency response.
  • Enjoy easy installation; includes a 25' cable and steel wire hanger for quick setup.
  • Rely on durable performance; this condenser microphone is built to last for years.
  • Experience low-noise operation, perfect for recording or live sound reinforcement.

What's in the box:

  • Electro-Voice RE90H Cardioid Hanging Choir Condenser Microphone (White)
  • 25' Microphone Cable
  • Steel Wire Hanger & Holding Nut
  • Electro-Voice 3 Year Limited Warranty
