Electro-Voice S-40 Specifications

  • Chassis Size

    133.35mm / 5.25"

  • Directivity Index

    9.8 dB (+3.8/-3.6 dB), 2 - 20,000 Hz

  • Input Connections

    Spring Terminal

  • Frequency Response

    85 - 20000 Hz +/-3 dB

  • Sensitivity 1 W/1 m

    85 dB

  • Max. SPL/1m (calc)

    113 dB

  • Coverage (Nominal -6 dB) H

    100 deg.

  • Coverage (Nominal -6 dB) V

    100 deg.

  • System Power Handling

    Short Term/Long Term: 120/480 Watts (Continuous/Program/Peak)

  • LF Transducer

    5.25" / 13.33cm

  • HF Transducer

    1" / 2.54cm softdome

  • Crossover Frequency

    3500 Hz

  • Nominal Impedance (Passive)

    4 Ohms

  • Minimum Impedance

    3.7 Ohms

  • Dimensions (H x W x D)

    249 x 178 x 150mm / 9.8 x 7.01 x 5.91"

  • Weight

    2.6kg / 5.73lbs

About Electro-Voice S-40

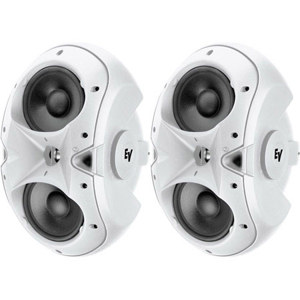

The Electro-Voice S-40 Ultra-Compact 5.25" 160W 2-Way Full-Range White Loudspeaker (Pair) is ideal for both distributed and near-field applications requiring high-quality sound. The two-way short-throw system is housed in an optimally vented, high-impact polystyrene enclosure that is suited for installation both indoors and out. Lows are handled by a 5.25" direct-radiating woofer with a polypropylene cone, while the high-frequency section is a one-inch direct-radiating soft-dome tweeter that is ferrofluid cooled.

Built-in automatic power limiting independently protects each driver from unsafe transients. With mounting options that are flexible enough for virtually any application, the Electro-Voice S-40 is perfect for anything from background and foreground music in restaurants and clubs to near-field monitoring in control rooms and broadcast studios.

Electro-Voice S-40 Features

  • High power-handling, ultra-linear frequency response
  • Vented trapezoidal enclosure of high-impact polystyrene
  • Passive crossover with power protection for both woofer and tweeter
  • OmniMount(R)-compatible 0.25 inch suspension points (2)

Key Features

  • High power-handling, ultra-linear frequency response
  • Vented trapezoidal enclosure of high-impact polystyrene
  • Passive crossover with power protection
  • OmniMount(R)-compatible 0.25 inch suspension points (2)

What's in the box:

  • Electro-Voice S-40 Ultra-Compact 5.25 " 160W 2-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Warranty
