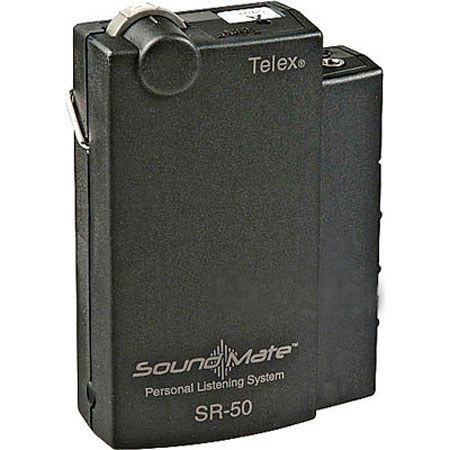

Electro-Voice SR-50 Single Frequency Assistive Listening Receiver, B: 72.2MHz
See all Electro-Voice items

Electro-Voice SR-50 Single Frequency Assistive Listening Receiver with Belt Clip, Band B: 72.2MHz

SKU: EVSR50B

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice SR-50 Specifications

  • Frequency Band

    B: 72.2MHz

  • Working Range

    Approx. 300' / 91.44m

  • Audio Frequency Response

    <3 dB Variation (100 Hz-10 KHz)

  • Signal-to-Noise Ratio

    Greater than 60 dB at 1 mV input

  • Number of Channels

    1 Fixed Channel (Channel 031)

  • Type of Output

    (Recessed) 3.5mm Mini Jack

  • Headphone Monitoring

    Yes, 3.5mm Audio Output (This Jack Also Serves as the Charger Input)

  • Sensitivity

    5Mu V typical/1Mu V maximum (12 dB SINAD at 25 kHz Deviation)

  • Adjacent Channel Rejection

    More than 35 dB Down at +/- 200 kHz

  • Image and Spurious Rejection

    More than 50 dB Down

  • Distortion

    Less than 2%

  • Supply Voltage

    2-3 Volts, (2) AA Batteries

  • Quiescent Current

    20 mA

  • Power Requirements

    2x AA batteries, Alkaline, NiMH or NICAD
    30 hours Alkaline, 20 hours NiMH, 10 hours NICAD

  • Audio Output

    Into 8 Ohms: 2.0V / 15mW 3.0V / 80mV
    Into 32 Ohms: 2.0V / 10mW 3.0V / 50mW
    (at 10% distortion)

  • Controls

    Volume/On/Off Switch

  • Visual Indicators

    Red LED On Indicator

  • Charger Contacts

    Bottom of unit

  • Display

    Backlit On/Tuning Indicator

  • Mounting Options

    Belt or Pocket

  • Antenna Type

    Omnidirectional in earphone cord

  • Temperature Range

    0 to 50 deg. C / 32 to 122 deg. F

  • FCC

    Complies with Part 15

  • Dimensions (H x W x D)

    4 x 2.75 x 1" / 101.60 x 69.85 x 25.40mm

  • UPC Code

    800549306720

About Electro-Voice SR-50

The SR-50 Single Channel Receiver provides clear reception and the simplicity of a fixed channel. This economical receiver operates on one of 17 fixed narrow-band frequencies in the 72-76 MHz band. Ergonomic raised volume control knob make level adjustments easily accessible by feel. Recessed headphone jack provides extra protection for earphone connections. Two AA batteries give up to 30 hours continuous battery life.

Operating Features

Volume OFF/ON Control
This thumbwheel control serves as both an off/on switch and as a volume control. The Receiver is turned off when the control is in the extreme counterclockwise position, when viewed from the rear and the volume is loudest when the control is in the extreme clockwise position as indicated on the volume control.

Headphone Jack
The headphone jack accepts a 0.140-inch (3.5 mm) diameter miniature mono or stereo phone plug. A variety of accessory units can be plugged into this jack for reception of the desired channel(s) being transmitted.

Belt Clip
The belt clip supplied is detachable by spreading the wire apart at the tops and removing one side of the clip from the case and then the other.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Electro-Voice SR-50 Single Frequency Assistive Listening Receiver
  • Belt Clip
  • Electro-Voice 3 Year Limited Warranty
