Electro-Voice ST-300 Specifications

  • Audio Input

    Balanced Female XLR

  • Frequency Range

    72 - 76MHz

  • Mic Selected

    2kOhms input impedance/0.5 mV-70 mV input range

  • Operating Range

    300' / 91.44m

  • 600Ohms Selected

    300kOhms input impedance/70 mV-7V input range

  • 70V Line Selected

    150kOhms input impedance 7V-70V input range

  • Unbalanced Audio Input

    10kOhms input impedance/10 mV-1.0 VRMS input range

  • RF Power Switch

    80,000 muV/m at 3m in "Hi", approx. 25,000 muV/m at 3m in "Low"

  • AGC Range

    30dB

  • Signal-to-noise Ratio

    Normal: 58dB
    EDR Enabled: 77dB

  • Pre-Emphasis

    115muS

  • Maximum Deviation

    +/- 25kHz

  • Frequency Control Crystal

    +/- 0.005% tolerance

  • Maximum Transmitter Output Power

    80 mV/m at 3m

  • Controls and Indicators

    1x Power Switch
    2x Up/Down Increment Buttons
    1x Set Button
    1x Headphone Monitor Volume Control Knob
    1x Backlit LCD Display

  • Connectors

    1x 3-pin XLR Female, Balanced Input
    1x 1/4" TS Phone, Unbalanced Input
    1x Screw-In BNC Antenna Connector
    1x 1/4" Stereo Headphone Out

  • Antenna

    1x Detachable Telescoping 1/4 Wave

  • Power Requirements

    12-15V, AC or DC at 300mA

  • FCC License

    Part 15, B5DM508

  • Dimensions (W x H x D)

    7.50 x 1.75 x 6.87" / 190.50 x 44.45 x 174.50mm

  • UPC Code

    800549423540

About Electro-Voice ST-300

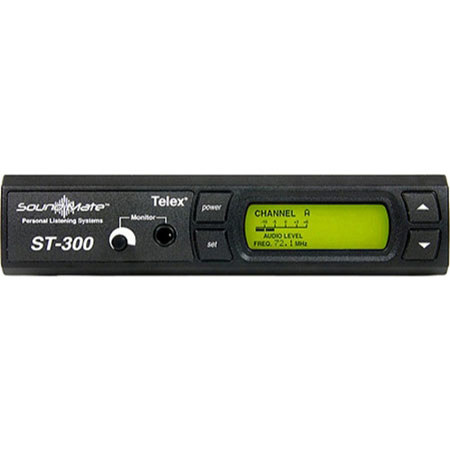

The ST-300 Base Transmitter features 17 user selectable frequencies digitally controlled from the front panel control buttons, a headphone jack with adjustable level for input signal monitoring and a backlit LCD display that shows Channel, Frequency and Audio Input Level. On the back of the unit is a balanced XLR-3F as well as an unbalanced 1/4" input. Front panel controls and LCD display allow the user to select mic, line and 70 volt input options, attenuate the input levels and change hi/low RF transmit power. A new feature called Enhanced Dynamic Range (E.D.R.) works with the SR-400 receiver to provide clearer, more dynamic audio.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Electro-Voice ST-300 VHF Wireless Personal Listening System Transmitter
  • 12V Power Supply
  • Detachable 1/4 Wave Antenna
  • Owner's Manual
  • Electro-Voice 3 Year Warranty
