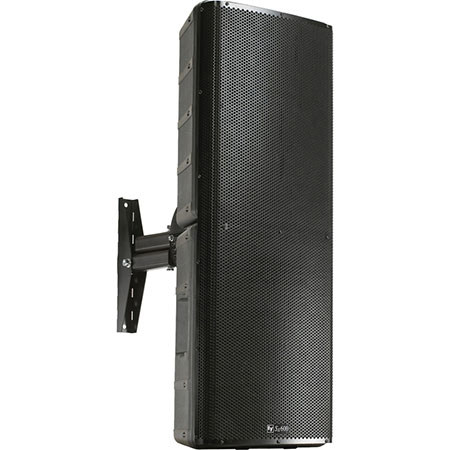

Electro-Voice Sx600PI High Power Dual 12" 2-Way Full-Range Loudspeaker, 4 Ohms Nominal Impedance, 105dB Sensitivity, 65x65deg.Coverage, Weather Resistant, Single

SKU: EVSX600PI MFR: F.01U.265.571
Earn VIP Reward Points

Key Features

  • Experience powerful, full-range sound with this dual 12" Electro-Voice PA speaker.
  • Achieve optimal audio clarity with a wide 65x65 degree coverage from this PA speaker.
  • This durable PA speaker is weather-resistant, perfect for indoor/outdoor events.
  • Enjoy versatile mounting options with the SuperSAM system for precise sound direction.
  • Get peak performance with 2400W power handling for impactful sound reinforcement.
  • High sensitivity (105dB) ensures efficient sound projection for your PA system needs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice Sx600PI Specifications

  • Frequency Range

    -3 dB: 100 Hz-14 kHz
    -10 dB: 70 Hz-16 kHz

  • Max Calculated SPL

    139 dB

  • Coverage

    Horizontal: 65 deg. nominal
    Vertical: 65 deg. nominal

  • Power Handling

    600 W continuous., 2400 W peak

  • Sensitivity (SPL 1W / 1m)

    105 dB

  • Impedance

    4 Ohms nominal, 3.5 Ohms minimum

  • Crossover Frequency

    1.8 kHz, LF/MB Overlap: 200-600 Hz

  • Connectors

    SJO Cable with Gland Nut

  • Enclosure Material

    High Density Polymer

  • Internal Transformer

    600 Watt Power
    70V Tap = 8 Ohms Z nominal
    100V Tap = 17 Ohms Z nominal
    140V Tap = 33 Ohms Z nominal
    200V Tap = 65 Ohms Z nominal

  • Mounting

    SuperSAM, 5 deg. Increments over60 deg. Vertical
    180 deg. Horizontal, can be bolted orstrapped

  • Grille

    Powder coated stainless steel

  • Weather Resistance

    IEC 529 IP 44, Mil Spec 810 humidity, salt spray, temperature, and UV

  • Dimensions (H x W x D)

    45.8 x 16.9 x 12.3" / 116.33 x 42.92 x 31.24cm

  • Weight

    98lbs / 44.45kg (with bracket)

  • UPC Code

    00800549682442

About Electro-Voice Sx600PI

The Electro-Voice SX600PI High Power Dual 12" 2-Way Full-Range Loudspeaker (Single) is a higher power extension of the popular SX-series of weather-resistant indoor/outdoor speaker systems. It features a dual 12", Two-element vertical array based on the powerful Neodymium woofer developed for x-Array. Mid-bass and low frequency energy is augmented by an overlapping DL series woofer to produce vertical pattern control and intelligibility superior to conventional horn systems.

The HF section features the DH2t compression driver coupled to a molded-in 65deg. X 65deg. Constant Directivity horn using EV's unique Varipath throat geometry. An EV exclusive SuperSAM mounting system allows 60deg.of vertical adjustment and 180deg. of horizontal pan with simple adjustment. The molded polymer enclosure combined with aluminum and neodymium components provide a lightweight, easy to handle system. A multilayer stainless steel grille protects against rain, sprayed water and dust to IEC 529 IP 44 Mil Spec 810 humidity, salt spray and UV specifications. The SX600PIX features a special internally mounted 600 Watt line transformer for operation on 70, 100, 140 and 200 volt distributed line systems.

Electro-Voice Sx600PI Features

  • Indoor/Outdoor Sound Reinforcement
  • 600W Continuous Power Handling
  • Dual 12" Woofers, 2" Titanium HF Driver
  • High Sensitivity, High Maximum SPL

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience powerful, full-range sound with this dual 12" Electro-Voice PA speaker.
  • Achieve optimal audio clarity with a wide 65x65 degree coverage from this PA speaker.
  • This durable PA speaker is weather-resistant, perfect for indoor/outdoor events.
  • Enjoy versatile mounting options with the SuperSAM system for precise sound direction.
  • Get peak performance with 2400W power handling for impactful sound reinforcement.
  • High sensitivity (105dB) ensures efficient sound projection for your PA system needs.

What's in the box:

  • Electro-Voice Sx600PI High Output Dual 12 " 2-Way Full-Range Loudspeaker
  • SuperSAM Mounting System
  • Electro-Voice 3 Year Limited Warranty
