26% Off

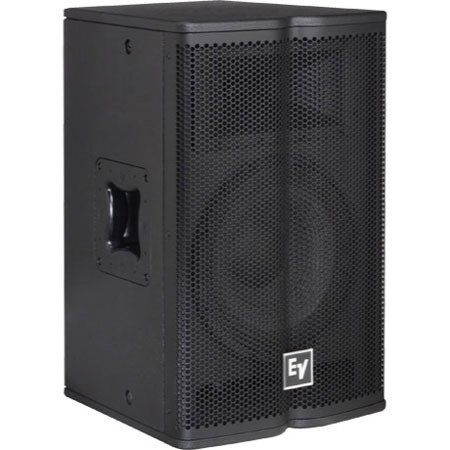

Electro-Voice TX1122 500W 12" 2-Way Full-Range Loudspeaker, 90x50deg. Horn Pattern, 60Hz-20kHz Frequency Response, 8 Ohms Nominal Impedance, SMX2120 Woofer, Single

SKU: EVTX1122 MFR: F.01U.302.272
Earn VIP Reward Points

Key Features

  • Experience powerful, full-range sound with this Electro-Voice 12" PA speaker.
  • Achieve crystal-clear audio with a frequency response of 60Hz-20kHz for live sound.
  • This durable PA speaker handles 500W continuous power, perfect for any venue.
  • Enjoy flexible setup with 90x50 degree horn coverage from this PA loudspeaker.
  • Easily connect using 2x Neutrik Speakon NL4's for reliable PA system integration.
  • Lightweight and portable at 44.5lbs, this PA speaker is great for mobile DJs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice TX1122 Specifications

  • Frequency Response

    - 3 dB: 60Hz - 20kHz

  • Frequency Range

    - 10 dB: 45Hz - 20kHz

  • Rec. Hipass Frequency

    45 Hz

  • Axial Sensitivity

    97 dB (1W/1m)

  • Max. Calculated SPL

    130 dB

  • Coverage

    Horizontal: 90 deg.
    Vertical: 50 deg.

  • Power Handling

    500W Continuous, 2000W Peak

  • LF Transducer

    SMX2120, 12" (305mm) Driver

  • HF Transducer

    DH3, 1.25" (32mm) Diaphragm Compression Driver

  • Crossover Frequency

    1750 Hz

  • Impedance

    Nominal: 8 Ohms
    Minimum: 5.4 Ohms

  • Connectors

    2x Neutrik Speakon NL4's

  • Enclosure Material

    Plywood and MDF with EVCoat

  • Suspension

    6x 3/8" Threaded Points - 2 on Each Side and 2 on the Rear of Enclosure

  • Grille

    16 GA Steel, Black Powdercoat, with Rotatable Logo

  • Dimensions (H x W x D)

    24.3 x 15 x 15" / 61.72 x 38.1 x 38.1cm

  • Weight

    44.5lbs / 20.18kg

  • UPC Code

    800549769211

About Electro-Voice TX1122

Overwhelm your senses with the Electro-Voice TX1122, a single, high-powered, 2-way full-range loudspeaker system designed for superior sound reinforcement. This lightweight audio marvel is perfect for diverse applications demanding high-quality sound in a portable package.

Engineered with a high-output 1.25" titanium DH3 compression driver, the TX1122 is paired with a Constant Directivity 90x50 degree horn. This dynamic duo ensures a smooth frequency response up to 20kHz, providing excellent pattern control for short to medium throw applications.

At the heart of this loudspeaker is the SMX2120, a 12" woofer with an FEA-optimized magnet structure. This advanced design minimizes distortion and maximizes intelligibility, even at high sound pressure levels (SPL).

The TX1122's crossover boasts steep 24 dB/octave slopes with equalization, delivering a smooth response in the vocal range and extended high frequencies. A built-in protection circuit ensures long-term reliability, making this loudspeaker a sound investment.

Designed for versatility, the Electro-Voice TX1122 is ideal for both portable and fixed installation applications. Its trapezoidal enclosure, crafted from a robust combination of plywood and MDF, is coated with EVCoat for maximum strength and durability. Despite its strength, the TX1122 remains lightweight for easy transport.

The unique grille design is not only strong and dent-resistant but also features a rotatable logo for customizable branding. Four-way handles offer multiple gripping options, while a pole mount provides the flexibility to position the TX1122 on a subwoofer or tripod.

The TX1122 also features six 3/8" threaded points for versatile suspension options. A recessed input panel with dual NL4 connectors keeps the connectors discreetly hidden. This feature also allows the TX1122 to be paired with the TX1181 subwoofer for extended sub-bass on a single amplifier channel, without the need for additional processing.

Experience the Electro-Voice TX1122, a 500W 12" 2-way full-range loudspeaker that redefines high-quality sound reinforcement.

Electro-Voice TX1122 Features

  • High-output 1.25" DH3 titanium compression driver for crystal-clear highs
  • Constant Directivity horn with 90x50 degree coverage for optimal sound dispersion
  • SMX2120 12" woofer with FEA-optimized magnet for low distortion at high SPLs
  • Advanced crossover design with 24 dB/octave slopes for smooth vocal reproduction
  • Lightweight, durable enclosure with EVCoat, ideal for portable and fixed installations
  • Dual NL4 connectors and versatile mounting options for easy integration and setup

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience powerful, full-range sound with this Electro-Voice 12" PA speaker.
  • Achieve crystal-clear audio with a frequency response of 60Hz-20kHz for live sound.
  • This durable PA speaker handles 500W continuous power, perfect for any venue.
  • Enjoy flexible setup with 90x50 degree horn coverage from this PA loudspeaker.
  • Easily connect using 2x Neutrik Speakon NL4's for reliable PA system integration.
  • Lightweight and portable at 44.5lbs, this PA speaker is great for mobile DJs.

What's in the box:

  • Electro-Voice TX1122 500W 12 " 2-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
