18% Off

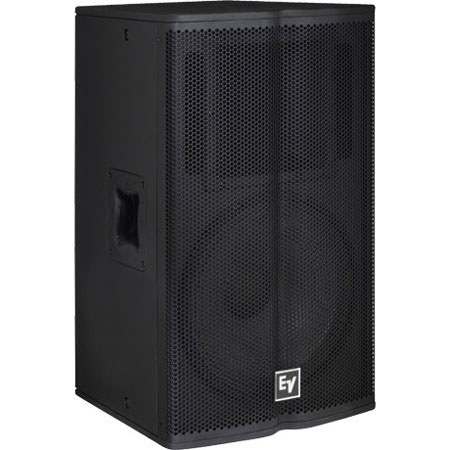

Electro-Voice TX1152 500W 15" 2-Way Full-Range Loudspeaker, 60x40deg. Horn Pattern, 55Hz-20kHz Frequency Response, 8 Ohms Nominal Impedance, SMX2151 Woofer, Single

SKU: EVTX1152 MFR: F.01U.302.273
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 500W PA speaker, perfect for live music events.
  • This durable PA speaker features a robust 15" woofer for clear, deep bass response.
  • Get wide sound coverage with the 60x40 degree horn, ideal for venues of all sizes.
  • Enjoy high-quality audio with a frequency response of 55Hz-20kHz in this PA system.
  • Easily connect your audio setup using the dual Neutrik Speakon connectors on this speaker.
  • The rugged enclosure and steel grille ensure lasting durability for all your sound needs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice TX1152 Specifications

  • Frequency Response

    - 3 dB: 55Hz - 20kHz

  • Frequency Range

    - 10 dB: 40Hz - 20kHz

  • Rec. Hipass Frequency

    40 Hz

  • Axial Sensitivity

    100 dB (1W/1m)

  • Max. Calculated SPL

    133 dB

  • Coverage

    Horizontal: 60 deg. or 40 deg.
    Vertical: 40 deg. or 60 deg.

  • Power Handling

    500W Continuous, 2000W Peak

  • LF Transducer

    SMX2151, 15" (381mm) Driver

  • HF Transducer

    DH3, 1.25" (32mm) Diaphragm Compression Driver

  • Crossover Frequency

    1650 Hz

  • Impedance

    Nominal: 8 Ohms
    Minimum: 5.6 Ohms

  • Connectors

    2x Neutrik Speakon NL4's

  • Enclosure Material

    Plywood and MDF with EVCoat

  • Suspension

    6x 3/8" Threaded Points - 2 on Each Side and 2 on the Rear of Enclosure

  • Grille

    16 GA Steel, Black Powdercoat, with Rotatable Logo

  • Dimensions (H x W x D)

    30.6 x 17.5 x 17.5" / 77.72 x 44.45 x 44.45cm

  • Weight

    61.2lbs / 27.75kg

  • UPC Code

    800549769228

About Electro-Voice TX1152

An embodiment of superior sound technology, the Electro-Voice TX1152 Single is a high-powered, 2-way full-range loudspeaker system, designed to deliver high-quality sound reinforcement in a compact, lightweight package. This versatile loudspeaker is ideal for a multitude of applications, from live concerts to festivals, and other large-scale events, ensuring a powerful audio experience every time.

The TX1152 is engineered with the DH3, a high-output 1.25" titanium compression driver, seamlessly paired with a Constant Directivity 60x40 degree horn. This dynamic duo ensures a smooth frequency response up to 20kHz, offering excellent pattern control for short to medium throw applications.

At the heart of this loudspeaker is the SMX2151, a 15" woofer with an FEA-optimized magnet structure. This feature ensures minimal distortion and maximum intelligibility, even at high Sound Pressure Levels (SPL), making it a reliable choice for any high-demand audio environment.

The advanced crossover in the TX1152 employs steep 24 dB/octave slopes with equalization, resulting in an incredibly smooth response in the vocal range, extended high frequencies, and a protection circuit for long-term reliability.

Constructed from a robust combination of plywood and MDF, the trapezoidal enclosure of the TX1152 is coated with EVCoat for maximum strength and durability, while maintaining a lightweight design. Its unique grille design is not only strong and dent-resistant but also features a rotatable logo for added versatility.

The TX1152 is designed with user convenience in mind, featuring four-way handles for easy handling and a pole mount for flexible placement options. The six 3/8" threaded points allow for versatile suspension positions, while the recessed input panel with dual NL4 connectors keeps the connectors hidden, enhancing its sleek design.

Furthermore, the TX1152 can be seamlessly paired with the TX1181 subwoofer for extended sub-bass on a single amplifier channel, requiring no additional processing. This makes the Electro-Voice TX1152 Single a comprehensive solution for all your high-quality sound reinforcement needs.

Electro-Voice TX1152 Features

  • High-powered, 2-way full-range loudspeaker system for superior sound reinforcement
  • Features DH3 high-output 1.25" titanium compression driver and Constant Directivity 60x40 degree horn for smooth frequency response
  • Equipped with SMX2151 15" woofer for low distortion and high intelligibility at high SPL
  • Advanced crossover with 24 dB/octave slopes and equalization for smooth vocal range response and extended high frequencies
  • Robust, lightweight design with EVCoat-coated plywood and MDF trapezoidal enclosure
  • Versatile handling and placement options with four-way handles, pole mount, and six 3/8" threaded points for suspension

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience powerful sound with this 500W PA speaker, perfect for live music events.
  • This durable PA speaker features a robust 15" woofer for clear, deep bass response.
  • Get wide sound coverage with the 60x40 degree horn, ideal for venues of all sizes.
  • Enjoy high-quality audio with a frequency response of 55Hz-20kHz in this PA system.
  • Easily connect your audio setup using the dual Neutrik Speakon connectors on this speaker.
  • The rugged enclosure and steel grille ensure lasting durability for all your sound needs.

What's in the box:

  • Electro-Voice TX1152 500W 15 " 2-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
