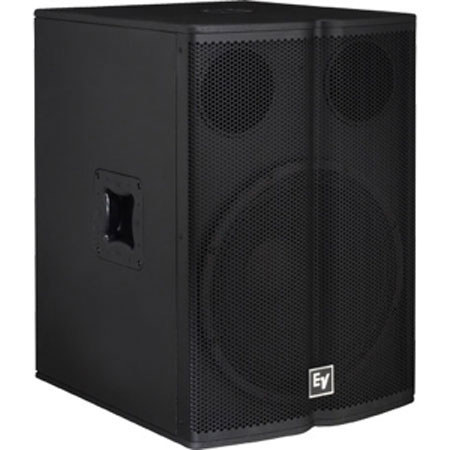

Electro-Voice TX1181 500W 18" Direct-Radiating Subwoofer, 50Hz-160Hz Frequency Response at -3dB, 8 Ohms Nominal Impedance, 100dB Sensitivity, Single

SKU: EVTX1181

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Electro-Voice TX1181 Specifications

  • Frequency Response

    - 3 dB: 50Hz - 160Hz

  • Frequency Range

    - 10 dB: 45Hz - 700Hz

  • Rec. Hipass Frequency

    30 Hz

  • Axial Sensitivity

    100 dB (1W/1m)

  • Max. Calculated SPL

    132 dB

  • Coverage

    Horizontal: Omnidirectional
    Vertical: Omnidirectional

  • Power Handling

    500W Continuous, 2000W Peak

  • LF Transducer

    EVS-18S, 18" (457mm) Driver

  • Impedance

    Nominal: 8 Ohms
    Minimum: 7.5 Ohms

  • Connectors

    2x Neutrik Speakon NL4's

  • Enclosure Material

    Plywood and MDF with EVCoat

  • Grille

    16 GA Steel, Black Powdercoat, with Rotatable Logo

  • Dimensions (H x W x D)

    30.3 x 20 x 23.3" / 76.96 x 50.8 x 59.18cm

  • Weight

    74.5lbs / 33.79kg

  • UPC Code

    800549769242

About Electro-Voice TX1181

The Electro-Voice TX1181 (Single) is a high power subwoofer that can be used to extend the low frequency performance of the TX1122 and TX1152 loudspeaker systems. The TX1181 uses the EVS-18S, a high excursion 18" woofer, coupled to well braced enclosure with large, low distortion ports, to add high impact bass response to any full range loudspeaker. An integrated low pass filter allows the TX1181 to be connected in parallel with a TX1122 or TX1152 on a single amplifier channel, eliminating the need for additional amplifier channels and processing.

The Electro-Voice TX1181 has many features that make it a versatile subwoofer system. The enclosure is constructed out of a combination of MDF and plywood and coated with EVCoat for maximum strength and durability. The unique grille design is very strong, dent resistant and features a rotatable logo. Four way handles allow for gripping the TX1181 in a variety of positions. The recessed input panel with dual NL4 connectors keeps the connectors hidden and allows for closer placement to a wall or other boundary. An integrated pole mount allows for elevating a TX1122 or TX1152 and integrated mounting points on the rear of the enclosure allow the optional TX-W1 wheel kit to be attached for easy portability.

Electro-Voice TX1181 Features

  • Integrated Low Pass Filter with 6 dB/Octave Slope
  • Pole Mount to Elevate a Two-Way Loudspeaker

Key Features

  • Integrated Low Pass Filter
  • Integrated Low Pass Filter with 6 dB/Octave Slope
  • Pole Mount to Elevate a Two-Way Loudspeaker

What's in the box:

  • Electro-Voice TX1181 500W 18 " Direct-Radiating Subwoofer
  • Electro-Voice 3 Year Warranty
