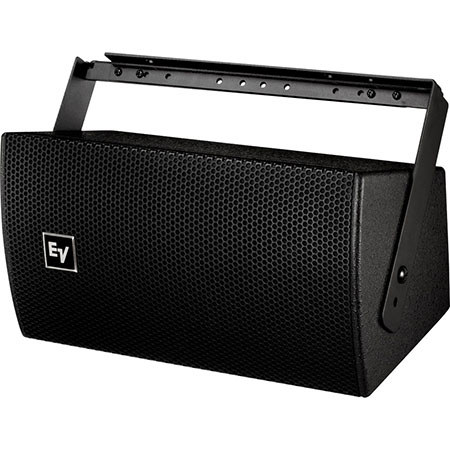

Electro-Voice EVU-1062/95 6.5" 2-Way Ultracompact Woofer, 8 Ohms Nominal Impedance, 92 dB Axial Sensitivity, 90x50deg. Rotatable Waveguide, Single, Black

SKU: EVU106295BLK MFR: F.01U.216.249
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 2-way PA speaker.
  • Achieve optimal audio coverage with the 90x50 rotatable waveguide PA speakers.
  • This passive PA speaker delivers 160W continuous power for clear audio output.
  • Enjoy versatile connectivity with 4-pin Phoenix/Euroblock PA speaker terminals.
  • Durable hardwood PA speaker enclosure ensures long-lasting performance and reliability.
  • Perfect for installations with M8 threaded points for secure PA speaker mounting.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVU-1062/95 Specifications

  • Axial Sensitivity (SPL, 1 W at 1 m)

    92 dB

  • Finish

    Textured paint

  • Nominal Impedance

    8 Ohms

  • Waveguide

    6" x 6", rotatable

  • Frequency Response (-3 dB)

    110 - 16000 Hz Half space

  • Frequency Response (-10 dB)

    65 - 20000 Hz Half space

  • Recommended High-Pass Frequency

    90 Hz

  • Max. SPL/1m (calc)

    Continuous: 114, Peak: 120 dB

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    50 deg.

  • System Power Handling

    160/640 Watts EIA RS-426A (eight hours) (Continuous/Program/Peak)

  • LF Transducer

    One 6.5" (165 mm) ICT-6.5-8 woofer

  • HF Transducer

    One 1.3" (33 mm) diaphragm ICT-1-8 compression driver

  • Minimum Impedance

    6 Ohms

  • Connector Type

    4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)

  • Enclosure Material

    9-ply hardwood plywood

  • Grill

    18-gauge steel with cloth behind

  • Suspension

    (6) M8 threaded points

  • Dimensions (W x H x D)

    14.57 x 8.23 x 8.15" / 37.00 x 20.90 x 20.70cm

  • Weight

    14.4lbs / 6.53kg

  • UPC Code

    800549622738

About Electro-Voice EVU-1062/95

An embodiment of high-quality audio engineering, the Electro-Voice EVU-1062/95 is a 6.5" 2-Way Ultracompact Woofer that delivers powerful sound in a compact and stylish package. This single woofer is housed in the most compact enclosure, measuring just over 8" in height and 14" in width, making it a sleek and space-saving addition to your audio setup.

Despite its compact size, the EVU-1062/95 doesn't compromise on power or performance. It boasts a high system power-handling capacity of 160 W continuous, ensuring reliable and consistent audio output during prolonged use. With an impressive 92 dB Axial Sensitivity, this woofer guarantees clear and vibrant sound even at 1 W/1 m, making it an ideal choice for both installations and live performances.

One of the standout features of this Electro-Voice woofer is its 90x50deg. Rotatable Waveguide. This unique feature allows for enhanced directional control, enabling you to tailor your sound to your specific needs and environment.

Crafted with an 8 Ohms Nominal Impedance, the EVU-1062/95 ensures optimal resistance for a balanced and high-quality sound output. This Ultracompact Woofer is designed to produce a wide range of sound frequencies, offering you a versatile and dynamic audio experience.

In conclusion, the Electro-Voice EVU-1062/95 6.5" 2-Way Ultracompact Woofer is a durable, high-quality, and powerful audio solution that combines innovative features with a sleek and compact design. Whether you're a professional looking for reliable audio equipment or an audiophile seeking superior sound quality, this woofer is designed to exceed your expectations.

Electro-Voice EVU-1062/95 Features

  • Sonically matched to all EV-Innovation lines
  • Sophisticated 18-dB-octave passive crossover/EQ networks
  • Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
  • OmniMount(R)-compatible rear mounting points
  • Ultracompact 8 x 14.5" enclosure
  • 90deg. x 50deg. rotatable waveguide
  • Ultra-high power handling for size: 160 W continuous
  • 120 dB Max SPL
  • Asymmetrical trapezoidal enclosure design
  • Compatible with OmniMount

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 2-way PA speaker.
  • Achieve optimal audio coverage with the 90x50 rotatable waveguide PA speakers.
  • This passive PA speaker delivers 160W continuous power for clear audio output.
  • Enjoy versatile connectivity with 4-pin Phoenix/Euroblock PA speaker terminals.
  • Durable hardwood PA speaker enclosure ensures long-lasting performance and reliability.
  • Perfect for installations with M8 threaded points for secure PA speaker mounting.

What's in the box:

  • Electro-Voice EVU-1062/95 6.5 " 2-Way Ultracompact Woofer
  • U-Bracket
  • Electro-Voice 3 Year Limited Warranty
