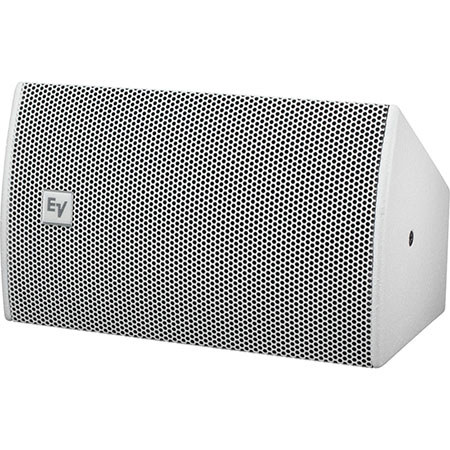

Electro-Voice EVU-1082/95 8" 2-Way Ultracompact Woofer, 8 Ohms Nominal Impedance, 95dB Axial Sensitivity, 90x50deg. Rotatable Waveguide, Single, White

SKU: EVU108295WHT MFR: F.01U.216.254
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 8" PA speaker.
  • Enjoy versatile placement; install this passive PA speaker with ease using U-Bracket.
  • The 90x50 rotatable waveguide ensures optimal audio coverage for any venue.
  • Durable hardwood plywood enclosure protects your investment for years to come.
  • Achieve powerful performance with 175W continuous power handling for clear audio.
  • Perfect for installations, this compact speaker delivers exceptional clarity.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVU-1082/95 Specifications

  • Axial Sensitivity (SPL, 1 W at 1 m)

    95 dB

  • Finish

    Textured paint

  • Nominal Impedance

    8 Ohms

  • Waveguide

    6" x 6", rotatable

  • Frequency Response (-3 dB)

    110 - 16000 Hz Half space

  • Frequency Response (-10 dB)

    65 - 20000 Hz Half space

  • Recommended High-Pass Frequency

    90 Hz

  • Max. SPL/1m (calc)

    Continuous: 117, Peak: 123 dB

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    50 deg.

  • System Power Handling

    175//700 Watts EIA RS-426A (eight hours) (Continuous/Program/Peak)

  • LF Transducer

    One 8" (203 mm) ICT-8-8 woofer

  • HF Transducer

    One 1.3" (33 mm) diaphragm ICT-1-8 compression driver

  • Minimum Impedance

    6 Ohms

  • Connector Type

    4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)

  • Enclosure Material

    9-ply hardwood plywood

  • Grill

    18-gauge steel with cloth behind

  • Suspension

    (6) M8 threaded points

  • Dimensions (W x H x D)

    16.1 x 9.72 x 9.33" / 40.89 x 24.68 x 23.69cm

  • Weight

    16.31lbs / 7.39kg

About Electro-Voice EVU-1082/95

Make your audio experience exceptional with the Electro-Voice EVU-1082/95 2-Way White Ultracompact Woofer. This high-quality, durable speaker is designed to deliver superior sound performance, with twice the maximum output of its 6.5-inch counterpart. Measuring approximately 10" high and 16" wide, this stylish and reliable woofer offers a significant boost in sound output without taking up much space.

Engineered by Electro-Voice, a reputable brand known for its innovative audio equipment, this woofer features an 8 Ohms Nominal Impedance and a 95dB Axial Sensitivity. These features ensure that the woofer can handle high sound pressure levels without distortion, providing clear, high-fidelity sound for all your audio needs.

The EVU-1082/95 also boasts a 90x50deg. Rotatable Waveguide, a unique feature that allows for precise sound direction and coverage. This makes it an ideal choice for a variety of applications, from live performances and public address systems to sound reinforcement in large venues.

Whether you're setting up for an indoor event or an outdoor gathering, this 2-Way Ultracompact Woofer is designed to deliver a full range of sound, handling both low and high frequencies with ease. Experience the difference in audio quality with the Electro-Voice EVU-1082/95 2-Way White Ultracompact Woofer.

Electro-Voice EVU-1082/95 Features

  • Sonically matched to all EV-Innovation lines
  • Sophisticated 18-dB-octave passive crossover/EQ networks
  • Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
  • One 1.3" (33 mm) diaphragm I compression driver
  • OmniMount(R)-compatible rear mounting points
  • Ultracompact 10 x 16" enclosure
  • 90deg. x 50deg. rotatable waveguide
  • Ultra-high power handling for size: 175 W continuous
  • 123 dB Max SPL
  • Asymmetrical trapezoidal enclosure design
  • Compatible with OmniMount

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 8" PA speaker.
  • Enjoy versatile placement; install this passive PA speaker with ease using U-Bracket.
  • The 90x50 rotatable waveguide ensures optimal audio coverage for any venue.
  • Durable hardwood plywood enclosure protects your investment for years to come.
  • Achieve powerful performance with 175W continuous power handling for clear audio.
  • Perfect for installations, this compact speaker delivers exceptional clarity.

What's in the box:

  • Electro-Voice EVU-1082/95 8 " 2-Way Ultracompact Woofer
  • U-Bracket
  • Electro-Voice 3 Year Limited Warranty
