Electro-Voice EVU-2062/95 Dual 6.5" 2-Way Ultracompact Woofers, 8 Ohms Nominal Impedance, 94 dB Axial Sensitivity, 90x50deg. Rotatable Waveguide, Black

SKU: EVU206295BLK MFR: F.01U.216.251
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with dual 6.5" Electro-Voice PA speakers.
  • Enjoy flexible PA system setup with a rotatable waveguide for optimized audio.
  • This durable PA speaker is perfect for permanent installs with M8 suspension points.
  • Get powerful audio coverage with 300W continuous power handling for live sound.
  • Achieve clear sound with a frequency response of 70 Hz - 20 kHz in your PA system.
  • This compact PA speaker delivers peak performance at 125dB for impactful sound.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JONATHAN A : referral from friend

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVU-2062/95 Specifications

  • Axial Sensitivity (SPL, 1 W at 1 m)

    94 dB (1W/1M)

  • Finish

    Textured paint

  • Nominal Impedance

    8 Ohms

  • Waveguide

    6" x 6", rotatable

  • Frequency Response (-3 dB)

    100 - 16000 Hz Half Space

  • Frequency Response (-10 dB)

    70 - 20000 Hz Half Space

  • Recommended High-Pass Frequency

    90 Hz

  • Max. SPL/1m (calc)

    Continuous: 119, Peak: 125 dB

  • Coverage (Nominal -6 dB) H

    90 deg.

  • Coverage (Nominal -6 dB) V

    50 deg.

  • System Power Handling

    300/1200 Watts EIA RS-426A (eight hours) (Continuous/Program/Peak)

  • LF Transducer

    2x One 6.5" (165 mm) ICT-6.5-8 woofer

  • HF Transducer

    One 1.3" (33 mm) diaphragm ICT-1-8 compression driver

  • Minimum Impedance

    6 Ohms

  • Connector Type

    4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)

  • Enclosure Material

    9-ply hardwood plywood

  • Grill

    18-gauge steel with cloth behind

  • Suspension

    (6) M8 threaded points

  • Dimensions (W x H x D)

    20.98 x 8.23 x 8.15" / 53.28 x 20.90 x 20.70cm

  • Weight

    31.31lbs / 14.20kg

About Electro-Voice EVU-2062/95

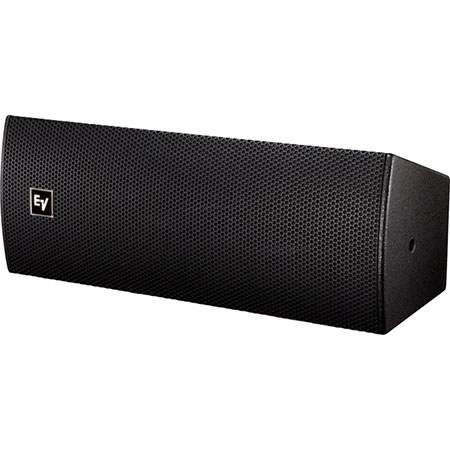

The Electro-Voice EVU-2062/95 (Black) is a compact two-way ultracompact woofers that can be used in a variety of applications where high quality sound reinforcement is required in an ultra-compact lightweight enclosure. The enclosure design utilizes asymmetric angles to maintain tight clearances to wall and ceilings while providing optimal coverage patterns making it ideal to blend into surroundings. This design was optimized for wall, stage lip and under balcony applications.

The EVU-2062/95 incorporates the ICT-1-8, a high-output 1.3" diaphragm titanium compression driver coupled to a Constant Directivity 90deg. X 50deg. rotatable waveguide. The ICT-6.5-16 woofer was developed using FEA optimization to provide the highest sensitivity while achieving the highest level of speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response and a protection circuit for long term reliability.

Electro-Voice EVU-2062/95 Features

  • Sonically matched to all EV-Innovation lines
  • Sophisticated 18-dB-octave passive crossover/EQ networks
  • Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
  • One 1.3" (33 mm) diaphragm compression driver
  • OmniMount(R)-compatible rear mounting points
  • Ultracompact 8 x 21" enclosure
  • 90 deg. x 50 deg. rotatable waveguide
  • Ultra-high power handling for size: 300 W continuous
  • 125 dB Max SPL
  • Asymmetrical trapezoidal enclosure design

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with dual 6.5" Electro-Voice PA speakers.
  • Enjoy flexible PA system setup with a rotatable waveguide for optimized audio.
  • This durable PA speaker is perfect for permanent installs with M8 suspension points.
  • Get powerful audio coverage with 300W continuous power handling for live sound.
  • Achieve clear sound with a frequency response of 70 Hz - 20 kHz in your PA system.
  • This compact PA speaker delivers peak performance at 125dB for impactful sound.

What's in the box:

  • Electro-Voice EVU-2062/95 Dual 6.5 " 2-Way Ultracompact Woofers
  • U-Bracket
  • Electro-Voice 3 Year Limited Warranty
