Electro-Voice Zx1-90 Specifications

  • Frequency Response (-3 dB)

    60 Hz - 20 kHz

  • Frequency Response (-10 dB)

    48 Hz - 20 kHz

  • Recommended Hi-Pass Frequency

    40 Hz

  • Max Calculated SPL

    123 dB

  • Horizontal Coverage

    90 deg. or 50 deg.

  • Vertical Coverage

    50 deg. or 90 deg.

  • Rated System Power

    200W Continuous, 400W Prog., 800W Peak

  • LF Transducer

    EV8L, 8" (203mm) Driver

  • HF Transducer

    DH2005, 1" (25.4mm) Exit Compression Driver

  • Crossover Frequency

    1.7 kHz

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Connectors

    Neutrik Speakon NL4

  • Enclosure Material

    High Impact Polymer

  • Grille

    Polyester Powder Coated, 18GA Galvanized Steel

  • Dimensions (H x W x D)

    457 x 282 x 264mm (17.99 x 11.10 x 10.39")

  • Weight

    8.4 kg (18.51 lbs)

  • UPC Code

    800549682473

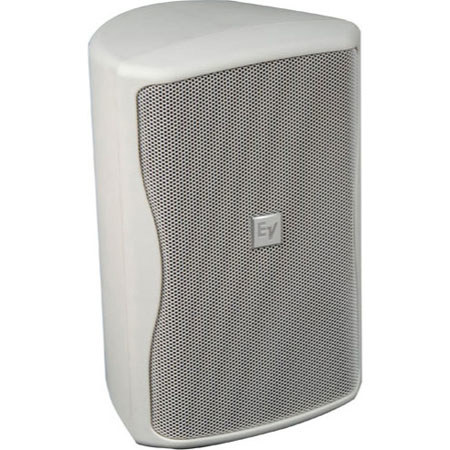

About Electro-Voice Zx1-90

The Electro-Voice ZX1-90 200 Watt 8" 2-Way Indoor/Outdoor White Portable Loudspeaker is the new standard of no compromise audio performance and versatility for compact sound reinforcement. The high-tech enclosure uses injection-molded high-impact polypropylene to make the ZX1-90 extremely durable. The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small loudspeakers and enables exceptional low frequency response without vent noise.

The ZX1-90's long excursion, high output 8" woofer with a weatherized treated cone delivers smooth low frequency performance with exceptional reliability. A sophisticated crossover network integrates it with the DH2005, a 1.25" voice coil titanium diaphragm true compression driver for maximum output with extended frequency response. Full-bandwidth overload protection is provided for reliable, long term operation without audible effect.

The horn features 90deg. X 50deg. coverage with the important added benefit of rotation, allowing the ZX1-90 to be oriented either horizontally or vertically for the ultimate in coverage flexibility. The ZX1-90's molded polymer enclosure is inherently water resistant. The enclosure features an integrated pole mount, a pocket handle and a wedge-angle design allowing for use as a stage monitor.

Electro-Voice Zx1-90 Features

  • Extremely Smooth, Wide Frequency Response
  • Attractive, Clean Design with Full Grille
  • EV8L 8" High-Output LF Transducer
  • DH2005 1" Exit True Compression Driver
  • 90deg. x 50deg. Coverage Pattern
  • Rotatable Horn Design
  • Integral Monitor Angle on Enclosure
  • 200W Cont., 800W Peak Power Handling
  • High Sensitivity, 123 dB Maximum SPL
  • Built-In Pole Mount
  • Integral Handle Pocket for Easy Carrying

Key Features

  • Extremely Smooth, Wide Frequency Response
  • Attractive, Clean Design
  • EV8L 8" High-Output LF Transducer
  • DH2005 1" Exit True Compression Driver
  • 90deg. x 50deg. Coverage Pattern
  • Rotatable Horn Design

What's in the box:

  • Electro-Voice Zx1-90 200 Watt 8 " 2-Way Indoor/Outdoor Portable Loudspeaker
  • Mounting Hardware
  • Product Instructions
  • Electro-Voice 5 Year Warranty
