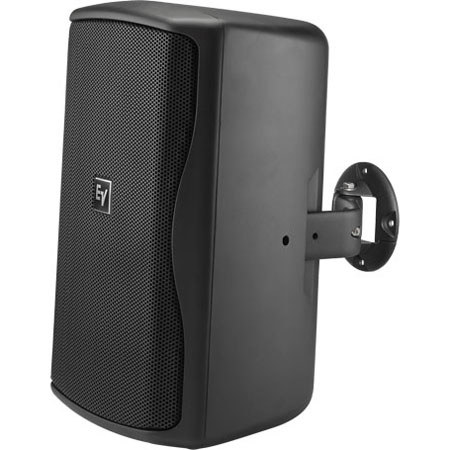

Electro-Voice ZX1i-100t 2-Way 8" 200W In/Outdoor Weatherized Installation Speaker, 100x100deg., 60Hz-20kHz, 4-pin Phoenix Connector, DH2005 1" Driver, Single, Black

SKU: EVZX1I100T MFR: F.01U.265.579
Earn VIP Reward Points

Key Features

  • Experience exceptional sound quality with this Electro-Voice 8" PA speaker.
  • This durable PA speaker delivers 200W continuous power for reliable performance.
  • Enjoy wide 100x100 degree coverage, ensuring everyone hears the clear audio.
  • Weatherized design makes this PA speaker perfect for indoor/outdoor installations.
  • Integrated QuickSAM mount allows for easy and secure PA speaker placement.
  • Versatile PA speaker with multiple wattage taps for 70V/100V systems.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice ZX1i-100t Specifications

  • Frequency Response (-3dB)

    60 Hz - 20 kHz

  • Frequency Response (-10dB)

    48 Hz - 20 kHz

  • Recommended High-Pass Frequency

    40Hz

  • Axial Sensitivity

    92 dB (1W/1m)

  • Maximum Calculated SPL

    121 dB

  • Horizontal Coverage

    100 deg.

  • Vertical Coverage

    100 deg.

  • Enclosure Rotation

    +/-35 deg.

  • Enclosure Sweep

    +/-45 deg.

  • Rated System Power

    200W continuous
    400W Program
    800W Peak

  • LF Transducer

    EV8L, 8 in (203mm) Driver

  • HF Transducer

    DH2005, 1 in. (25.4mm) Exit Compression Driver

  • Crossover Frequency

    1.7kHz

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohm

  • Wattage Taps

    70V- 6, 12.5, 25, 50, 100, 8Ohm bypass
    100V- 12.5, 25, 50, 100, 8Ohm bypass

  • Overload Protection

    Full protection

  • Connector

    4-pin Phoenix

  • Enclosure Material

    High Impact Polystyrene

  • Suspension

    Integrated QuickSAM Heavy duty strong arm mountong bracket

  • Grill

    Polyester Powder Coated, 18GA Galvanized Steel

  • Dimensions (H x W x D)

    17.75 x 11.12 x 10.35" / 451 x 282.44 x 263mm

  • Weight

    Without Transformer: 8.4kg / 18.51lbs
    With Transformer: 10.4kg / 22.92lbs

  • UPC Code

    00800549682527

About Electro-Voice ZX1i-100t

Overcome the limitations of traditional sound reinforcement with the Electro-Voice ZX1i-100t 2-Way 200W 8" Black In/Outdoor Installation Speaker. This compact, high-performance audio device is designed for both indoor and outdoor use, offering unparalleled versatility and durability.

Constructed with injection-molded high-impact polypropylene, the ZX1i-100t's enclosure is not only robust but also engineered for maximum rigidity and acoustic performance. The unique enclosure geometry and velocity compensated port design allow for exceptional low-frequency response, overcoming the common limitations of small cabinet loudspeakers without vent noise.

Installation is a breeze with the included QuickSAM mounting system. This innovative, integrated mounting bracket is virtually foolproof, allowing for easy speaker attachment and adjustment to the desired position.

The ZX1i-100t is equipped with a special circuit that re-configures to a current actuated Hi-Pass filter at the transformer primary when in transformer mode. This feature gently rolls off the lowest frequencies to maintain a safe amplifier load without affecting the higher vocal frequencies, ensuring uninterrupted audio performance.

Designed for durability, the ZX1i-100t's molded polymer enclosure is water-resistant, and its multilayer grille with hydrophobic cloth and weatherized components allow it to perform under various environmental conditions.

The speaker features a long excursion, high output 8" woofer with a weatherized treated cone for smooth low-frequency performance and exceptional reliability. It is integrated with the DH2005, a 1.25" voice coil true compression driver, through a sophisticated crossover network for maximum output and extended frequency response.

The ZX1i-100t also boasts full-bandwidth overload protection for reliable, long-term operation without any audible effect. Its 100deg. X 100deg. rotatable horn design allows for broad, even dispersion, making it ideal for many distributed audio applications. The rotatable design also offers the flexibility to orient the speaker either horizontally or vertically.

Finally, the speaker's Automatic Saturation Compensation (ASC) feature protects your amplifier from transformer saturation, especially at low frequencies. This unique circuit adjusts the characteristics of the transformer that the amplifier sees to create a "stable" load even at very high power levels, virtually eliminating the risk of the amplifier going into protect mode or getting damaged.

In summary, the Electro-Voice ZX1i-100t 2-Way 200W 8" Black In/Outdoor Installation Speaker offers a no-compromise solution for those seeking high-quality audio performance, durability, and easy installation.

Electro-Voice ZX1i-100t Features

  • 8" Woofer, 1.25" Titanium HF Driver
  • Indoor/Outdoor Sound Reinforcement
  • Internal Crossover & 100W Transformer
  • ASC Technology Prevents LF Saturation

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience exceptional sound quality with this Electro-Voice 8" PA speaker.
  • This durable PA speaker delivers 200W continuous power for reliable performance.
  • Enjoy wide 100x100 degree coverage, ensuring everyone hears the clear audio.
  • Weatherized design makes this PA speaker perfect for indoor/outdoor installations.
  • Integrated QuickSAM mount allows for easy and secure PA speaker placement.
  • Versatile PA speaker with multiple wattage taps for 70V/100V systems.

What's in the box:

  • Electro-Voice ZX1i-100t 2-Way 200W 8 " In/Outdoor Installation Speaker
  • QuickSAM Mount
  • Electro-Voice 5 Year Limited Warranty
