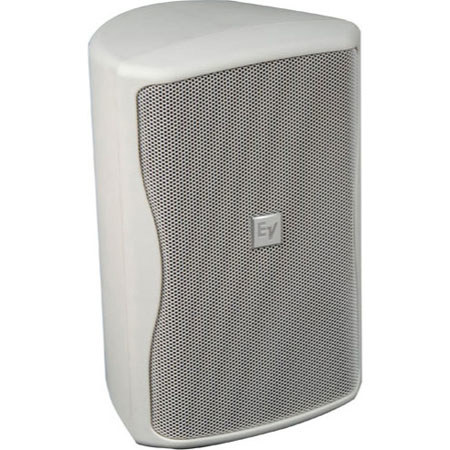

Telex ZX1i-100t 2-Way 8" 200W In/Outdoor Weatherized Installation Speaker, 1100x100deg., 60Hz-20kHz, 4-pin Phoenix Connector, DH2005 1" Driver, Single,White

SKU: EVZX1I100TW MFR: F.01U.265.580
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this 2-way, 200W PA speaker system.
  • This durable PA speaker is weatherized for worry-free in/outdoor installations.
  • Achieve optimal audio coverage with wide 100x100 degree dispersion from this speaker.
  • Enjoy versatile connectivity options with the 4-pin Phoenix connector on this speaker.
  • The integrated QuickSAM mount makes installing your PA speakers quick and easy.
  • This installation speaker delivers powerful, clear audio for various applications.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Telex ZX1i-100t Specifications

  • Frequency Response (-3dB)

    60 Hz - 20 kHz

  • Frequency Response (-10dB)

    48 Hz - 20 kHz

  • Recommended High-Pass Frequency

    40Hz

  • Axial Sensitivity

    92 dB (1W/1m)

  • Maximum Calculated SPL

    121 dB

  • Horizontal Coverage

    100 deg.

  • Vertical Coverage

    100 deg.

  • Enclosure Rotation

    +/-35 deg.

  • Enclosure Sweep

    +/-45 deg.

  • Rated System Power

    200W continuous
    400W Program
    800W Peak

  • LF Transducer

    EV8L, 8 in (203mm) Driver

  • HF Transducer

    DH2005, 1 in. (25.4mm) Exit Compression Driver

  • Crossover Frequency

    1.7kHz

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohm

  • Wattage Taps

    70V- 6, 12.5, 25, 50, 100, 8Ohm bypass
    100V- 12.5, 25, 50, 100, 8Ohm bypass

  • Overload Protection

    Full protection

  • Connector

    4-pin Phoenix

  • Enclosure Material

    High Impact Polystyrene

  • Suspension

    Integrated QuickSAM Heavy duty strong arm mountong bracket

  • Grill

    Polyester Powder Coated, 18GA Galvanized Steel

  • Dimensions (H x W x D)

    17.75 x 11.12 x 10.35" / 451 x 282.44 x 263mm

  • Weight

    Without Transformer: 8.4kg / 18.51lbs
    With Transformer: 10.4kg / 22.92lbs

About Telex ZX1i-100t

Are you seeking exceptional audio performance and versatility in a compact, easy-to-install package Look no further than the Electro-Voice ZX1i-100t 2-Way 200W 8" White In/Outdoor Installation Speaker. This high-quality speaker sets a new standard in sound reinforcement, delivering no-compromise audio performance in a stylish and durable package.

Constructed with an injection-molded high-impact polypropylene enclosure, the ZX1i-100t is designed for maximum rigidity and acoustic performance. This advanced design ensures exceptional low-frequency response without vent noise, overcoming the limitations of many small cabinet loudspeakers.

Installation is a breeze with the included QuickSAM mounting system. This unique, integrated bracket allows for quick and easy installation, simply snap the speaker onto the bracket and adjust to your desired position.

The ZX1i-100t features a special circuit that re-configures to a current actuated Hi-Pass filter at the transformer primary when in transformer mode. This gently rolls off the lowest frequencies to maintain a safe load on the amplifier without affecting the higher (vocal) frequencies, ensuring uninterrupted audio performance.

Designed with durability in mind, the ZX1i-100t's molded polymer enclosure is water-resistant, and its multilayer grille with hydrophobic cloth and weatherized components allow it to perform under various environmental conditions. Its high-output 8" woofer with a weatherized treated cone delivers smooth low-frequency performance with exceptional reliability.

Integrated with the DH2005, a 1.25" voice coil true compression driver, the ZX1i-100t provides maximum output with extended frequency response. Full-bandwidth overload protection is provided for reliable, long-term operation without audible effect.

The 100deg. X 100deg. horn provides broad, even dispersion needed in many distributed audio applications. An added benefit is the rotatable horn design, allowing the ZX1i-100t cabinet to be oriented either horizontally or vertically for ultimate design flexibility.

Equipped with Automatic Saturation Compensation (ASC), the ZX1i-100t protects your amplifier from transformer saturation, especially at low frequencies. This feature virtually eliminates the possibility of the amplifier going into protect mode or even damaging the amplifier, ensuring reliable and high-quality audio performance.

Telex ZX1i-100t Features

  • High-quality 2-Way 200W 8" White In/Outdoor Installation Speaker for exceptional audio performance
  • Injection-molded high-impact polypropylene enclosure for maximum rigidity and acoustic performance
  • QuickSAM mounting system for easy installation and positioning
  • Special circuit for maintaining a safe load on the amplifier and ensuring uninterrupted audio performance
  • Durable, water-resistant design with weatherized components for reliable outdoor use
  • Automatic Saturation Compensation (ASC) to protect your amplifier from transformer saturation

Key Features

  • Experience superior sound quality with this 2-way, 200W PA speaker system.
  • This durable PA speaker is weatherized for worry-free in/outdoor installations.
  • Achieve optimal audio coverage with wide 100x100 degree dispersion from this speaker.
  • Enjoy versatile connectivity options with the 4-pin Phoenix connector on this speaker.
  • The integrated QuickSAM mount makes installing your PA speakers quick and easy.
  • This installation speaker delivers powerful, clear audio for various applications.

What's in the box:

  • Electro-Voice ZX1i-100t 2-Way 200W 8 " In/Outdoor Installation Speaker
  • QuickSAM Mount
  • Electro-Voice 5 Year Warranty
