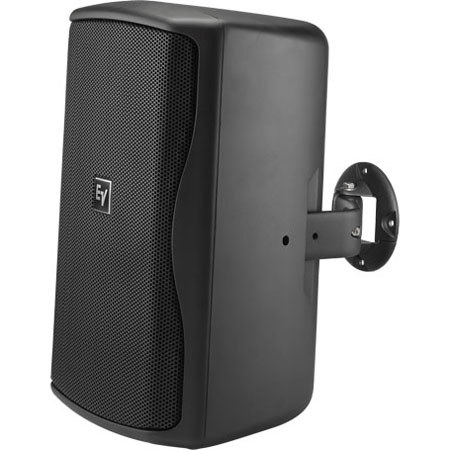

Electro-Voice ZX1i-90t 2-Way 8" 200W Weatherized Indoor/Outdoor Install Loudspeaker, 90x90deg., 8 Ohm Nominal Impedance, 94dB, 60Hz-20 kHz, Single, Black

SKU: EVZX1I90T MFR: F.01U.265.581
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 8" PA speaker.
  • This durable PA speaker is weatherized for indoor/outdoor installations.
  • Achieve optimal audio with 200W continuous power for clear, crisp sound.
  • Enjoy flexible mounting with the integrated QuickSAM bracket system.
  • Perfect for background music or vocals, this PA speaker delivers every time.
  • Benefit from wide 90x90deg. coverage, ensuring sound reaches every corner.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice ZX1i-90t Specifications

  • Frequency Response (-3dB)

    60 Hz - 20 kHz

  • Frequency Response (-10dB)

    48 Hz - 20 kHz

  • Recommended High-Pass Frequency

    40Hz

  • Axial Sensitivity

    94 dB (1W/1m)

  • Maximum Calculated SPL

    123 dB

  • Horizontal Coverage

    90 deg.

  • Vertical Coverage

    90 deg.

  • Enclosure Rotation

    +/-35 deg.

  • Enclosure Sweep

    +/-45 deg.

  • Rated System Power

    200W continuous
    400W Program
    800W Peak

  • LF Transducer

    EV8L, 8 in (203mm) Driver

  • HF Transducer

    DH2005, 1 in. (25.4mm) Exit Compression Driver

  • Crossover Frequency

    1.7kHz

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6Ohm

  • Wattage Taps

    70V- 6, 12.5, 25, 50, 100, 8Ohm bypass
    100V- 12.5, 25, 50, 100, 8Ohm bypass

  • Overload Protection

    Full protection

  • Connector

    4-pin Phoenix

  • Enclosure Material

    High Impact Polystyrene

  • Suspension

    Integrated QuickSAM Heavy duty strong arm mountong bracket

  • Grill

    Polyester Powder Coated, 18GA Galvanized Steel

  • Dimensions (H x W x D)

    17.75 x 11.12 x 10.35" / 451 x 282.44 x 263mm

  • Weight

    Without Transformer: 8.4kg / 18.51lbs
    With Transformer: 104kg / 22.92lbs

  • UPC Code

    00701001031566

About Electro-Voice ZX1i-90t

Just when you thought outdoor audio couldn't get any better, the Electro-Voice ZX1i-90t 2-Way 8" 200W Black Weatherized Indoor/Outdoor Install Loudspeaker redefines excellence in sound reinforcement. This compact yet powerful loudspeaker delivers no-compromise audio performance, making it an ideal choice for discerning audio professionals and enthusiasts alike.

Crafted with a high-impact polypropylene enclosure, the ZX1i-90t boasts a stylish and durable design that ensures maximum rigidity and outstanding acoustic performance. The advanced velocity-compensated port technology surpasses the limitations of smaller cabinet loudspeakers, offering exceptional low-frequency response without the unwanted vent noise.

Installation is a breeze with the innovative QuickSAM mounting system, which allows for secure and precise positioning. For those looking to create an immersive audio experience, the optional array bracket kit enables seamless array mounting for versatile configurations.

The ZX1i-90t is not just robust in design but also intelligent in functionality. Featuring a unique circuit that transforms into a current-actuated Hi-Pass filter in transformer mode, it maintains a consistent load on the amplifier while preserving vocal frequencies and overall sound integrity. This technology also prevents low-frequency saturation, ensuring the longevity and reliability of the system.

Weather resistance is paramount in an outdoor loudspeaker, and the ZX1i-90t excels in this regard. Its molded polymer enclosure is naturally water-resistant, complemented by a multilayer grille with hydrophobic cloth and weatherized components, allowing it to withstand diverse environmental conditions.

The heart of the ZX1i-90t's acoustic prowess lies in its long-excursion, high-output 8" woofer with a weather-treated cone, ensuring smooth low-frequency performance and unwavering reliability. Paired with the DH2005, a 1.25" voice coil true compression driver, the loudspeaker achieves maximum output with an extended frequency response, while full-bandwidth overload protection guarantees consistent, long-term operation.

Flexibility in installation is a key feature, with the rotatable waveguide allowing the ZX1i-90t to be oriented horizontally or vertically, adapting to any space or design requirement. The 90x90 degree horn provides broad, even dispersion, essential for distributed audio applications.

Moreover, the Automatic Saturation Compensation (ASC) safeguards your amplifier from the risks of transformer saturation, especially at low frequencies. This innovative feature adjusts the transformer's characteristics, ensuring a stable load even at high power levels and virtually eliminating the risk of amplifier damage.

In summary, the Electro-Voice ZX1i-90t is a stylish, durable, high-quality, powerful, and reliable loudspeaker that stands out for its superior sound quality, ease of installation, and robust weatherized construction. It's the perfect choice for anyone seeking professional-grade audio performance in both indoor and outdoor settings.

Electro-Voice ZX1i-90t Features

  • Patented ASC (Automatic Saturation Compensation)
  • Also available in 70/100 volt transformer version
  • Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 8" PA speaker.
  • This durable PA speaker is weatherized for indoor/outdoor installations.
  • Achieve optimal audio with 200W continuous power for clear, crisp sound.
  • Enjoy flexible mounting with the integrated QuickSAM bracket system.
  • Perfect for background music or vocals, this PA speaker delivers every time.
  • Benefit from wide 90x90deg. coverage, ensuring sound reaches every corner.

What's in the box:

  • Electro-Voice ZX1i-90t 2-Way 200W 8 " Weatherized Indoor/Outdoor Install Loudspeaker
  • QuickSAM Mount
  • Electro-Voice 5 Year Limited Warranty
