28% Off

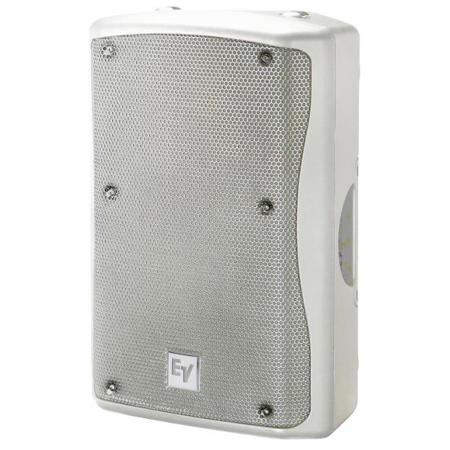

Electro-Voice Zx3-90 600 Watts 12" 2-Way Passive Loudspeaker, 90x50deg., 58Hz-15kHz, 8 Ohms Nominal Impedance, 131 dB Sensitivity, 2x Neutrik Speakon, Single, White

SKU: EVZX390W MFR: F.01U.265.584
Earn VIP Reward Points

Key Features

  • Experience powerful, crystal-clear audio with this 600W PA speaker for any venue.
  • Achieve exceptional sound quality with the Zx3-90's wide 58Hz-15kHz frequency response.
  • Enjoy versatile connectivity with dual Neutrik Speakon connectors on this PA loudspeaker.
  • This durable PA speaker's structural foam enclosure ensures years of reliable performance.
  • Easily suspend your PA system with integrated anchor plates and M8 suspension points.
  • The Electro-Voice Zx3-90 offers portability and high power output for mobile DJs.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice Zx3-90 Specifications

  • Frequency Response (-3 dB)

    58 Hz - 15 kHz

  • Frequency Response (-10 dB)

    48 Hz - 20 kHz

  • Recommended Hi-pass Frequency

    50 Hz

  • Max. Calculated SPL

    131 dB

  • Horizontal Coverage

    90 deg.

  • Vertical Coverage

    50 deg.

  • Power Handling (Passive)

    600W Continuous, 2400W Peak

  • LF Power Handling (Biamp)

    500W Continuous, 2000W Peak

  • HF Power Handling (Biamp)

    40W Continuous, 160W Peak

  • LF Transducer

    DVX3121, 12" (305mm) Driver

  • HF Transducer

    ND2, 1" (25.4mm) exit Neodymium Compression Driver

  • Crossover Frequency

    2 kHz

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6.2 Ohms

  • Connectors

    (2) Neutrik Speakon NL4's

  • Enclosure Material

    Polypropylene Structural Foam

  • Suspension

    Enclosure has locations for 4 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts - 2 on Top, 2 on Bottom, 2 on Side, and 1 on Rear of Enclosure

  • Grille

    Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo

  • Dimensions (H x W x D)

    613 x 397 x 362mm (24.13 x 15.62 x 14.25")

  • Weight

    19.8 kg (43.65 lbs)

About Electro-Voice Zx3-90

The Electro-Voice ZX3-90 600 Watts 12" 2-Way Passive White Loudspeaker is the new standard of no compromise audio performance and versatility in a simple to use, compact package. At its heart are the transducers. First is the DVX3121 high performance low frequency transducer. EV used advanced computer aided design techniques to create forced air, directional voice coil cooling for high power and efficiency. Finite element analysis was used to optimize the suspension and magnetic structure for long, linear travel to provide low distortion and greater LF extension. These features and details, such as forged magnetic components and special materials, provide reliability with a 500W power rating in a lightweight transducer. Next is the ND2, a 2" voice coil compression driver based on neodymium motor structure to allow for maximum output while reducing size and weight to a minimum. Its precision phasing plug and titanium diaphragm provide better HF performance, while the integral heatsink provides cooling for high power output.

The high tech enclosure uses injection-molded high-impact polypropylene structural foam to make the ZX3-60 incredibly durable. The enclosure geometry elements have been carefully designed to provide maximum rigidity and bass response. By design the ZX3-60 is also a perfect solution for stage monitors by allowing two angles (45deg. or 55deg.) without any additional accessories.

The ZX3-60 is equipped with two anchor plates for rigging with single stud-fittings, along with two more possible anchor plate attachment points on the bottom. For permanent suspension or attaching brackets, the ZX3-60 also has two M8 inserts on the top and bottom, two under the handle and one on the back of the enclosure, for a total of 7.

Electro-Voice Zx3-90 Features

  • DVX3121 12" LF Transducer with Forced Air Cooling
  • ND2 2" Voice Coil, 1" Exit Neodymium Compression Driver
  • 90deg. x 50deg. Coverage Pattern
  • 600W Continuous (2400W Peak) Power Handling
  • High Sensitivity, 131 dB Maximum SPL
  • Adjustable Monitor Angle (45deg. or 55deg.)
  • 2 Anchor Plates for Single Stud Fittings and 7 Integral Suspension Points
  • Passive/Biamp Selectable

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience powerful, crystal-clear audio with this 600W PA speaker for any venue.
  • Achieve exceptional sound quality with the Zx3-90's wide 58Hz-15kHz frequency response.
  • Enjoy versatile connectivity with dual Neutrik Speakon connectors on this PA loudspeaker.
  • This durable PA speaker's structural foam enclosure ensures years of reliable performance.
  • Easily suspend your PA system with integrated anchor plates and M8 suspension points.
  • The Electro-Voice Zx3-90 offers portability and high power output for mobile DJs.

What's in the box:

  • Electro-Voice Zx3-90 600 Watts 12 " 2-Way Passive Loudspeaker
  • 3x Anchor Plates
  • 10x M8 Metric Suspension Insert Points
  • Electro-Voice 5 Year Limited Warranty
