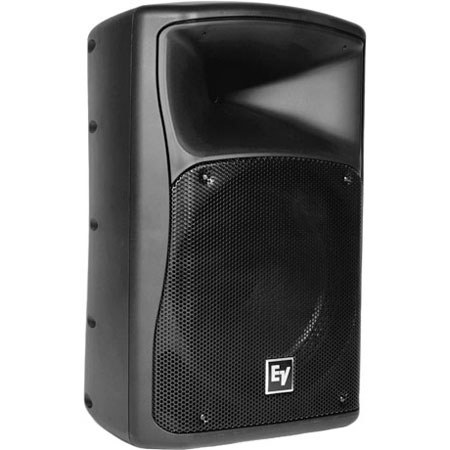

Electro-Voice Zx4 400 Watts 15" 2-Way Passive Loudspeaker, 90x50deg., 60Hz-20kHz, 132 dB Sensitivity, 8 Ohms Nominal Impedance, 2x Neutrik Speakon, Single, Black

SKU: EVZX4 MFR: F.01U.265.605
Earn VIP Reward Points

Key Features

  • Experience powerful, crystal-clear audio with this Electro-Voice 15" PA speaker.
  • Achieve optimal sound with a broad 90x50 degree coverage, perfect for live sound.
  • This passive PA speaker delivers 400W continuous power for robust performance.
  • Durable polypropylene build ensures this PA loudspeaker withstands rigorous use.
  • Enjoy flexible connectivity with dual Neutrik Speakon connectors on this PA speaker.
  • Lightweight design at 44.53 lbs makes PA system setup and transport a breeze.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice Zx4 Specifications

  • Frequency Response (-3 dB)

    60 Hz - 20 kHz

  • Frequency Response (-10 dB)

    42 Hz - 20 kHz

  • Recommended Hi-pass Frequency

    42 Hz

  • Axial Sensitivity

    100 dB (1W/1m)

  • Max. Calculated SPL

    132 dB

  • Horizontal Coverage

    90 deg.

  • Vertical Coverage

    50 deg.

  • Power Handling

    400W Continuous, 1600W Peak

  • LF Transducer

    EVS15-SF, 15" (381mm) Driver

  • HF Transducer

    DH3, 1" (25.4mm) exit Compression Driver

  • Crossover Frequency

    1.5 kHz

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6.5 Ohms

  • Connectors

    (2) Neutrik Speakon NL4's

  • Enclosure Material

    Polypropylene Structural Foam

  • Suspension

    Enclosure has locations for 3 Single-Stud Attachment Plates and 8 Forged Steel Eyebolts - 2 on Top, 2 on Side, and 4 on Rear of Enclosure

  • Grille

    Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo

  • Dimensions (H x W x D)

    692 x 446 x 411mm (27.24 x 17.55 x 16.18")

  • Weight

    20.2 kg (44.53 lbs)

About Electro-Voice Zx4

Why settle for anything less than the Electro-Voice ZX4 400-Watt 15" 2-Way Passive Loudspeaker when you can have a blend of durability, high-quality sound, and professional-grade features This robust loudspeaker is engineered for both portable main mix and monitor applications, making it an ideal choice for DJs, live bands, and general entertainment needs.

Crafted with a stylish black design, the ZX4 not only delivers exceptional audio performance but also adds an aesthetic touch to any venue. Despite its formidable capabilities, it remains incredibly portable at a weight of just 20.2 kg (44.53 lbs), allowing for effortless transport and setup.

Experience every nuance of your music with the ZX4's expansive frequency response range of 60Hz-20kHz, ensuring that from the extended highs to the powerful lows, your sound is reproduced with clarity and depth. The DH3 compression driver, featuring a pure titanium diaphragm, works in harmony with the large 90x50deg. horn to offer exceptional intelligibility and precise pattern control.

The EVS15-SF 15" low-frequency driver delivers tight, low bass and remarkable power handling capacity, ensuring that your audience feels every beat. As a fully capable standalone system, the ZX4 excels in delivering high sensitivity of 132 dB and consistent audio quality with its 8 Ohms nominal impedance.

Designed for versatility, the ZX4 includes an integral pole mount, making it ready for main mix applications. Its retractable monitor feet allow for use as a stage monitor at either a 45deg. or 55deg. angle, adapting to various stage setups with ease.

The high-tech, injection-molded high-impact polypropylene structural foam enclosure is not only durable but also contributes to the ZX4's reliable performance. The enclosure's geometry has been meticulously designed to provide maximum rigidity and enhanced bass response, ensuring that this loudspeaker stands up to the demands of live performances.

With dual Neutrik Speakon connectors, the ZX4 offers secure and reliable connections, making it a top choice for professionals seeking a powerful, high-quality, and reliable passive loudspeaker system. Whether it's for a concert hall, a bustling nightclub, or an intimate event, the Electro-Voice ZX4 is engineered to exceed expectations and elevate your audio experience.

Electro-Voice Zx4 Features

  • EVS15-SF 15" LF Transducer
  • DH3 1.25" Voice Coil, 1" Exit Compression Driver
  • 90deg. x 50deg. Coverage Pattern
  • 400W Continuous (1600W) Power Handling
  • Adjustable Monitor Angle (45deg. or 55deg.)
  • High Sensitivity, 132 dB Maximum SPL
  • Integral Pole Mount

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience powerful, crystal-clear audio with this Electro-Voice 15" PA speaker.
  • Achieve optimal sound with a broad 90x50 degree coverage, perfect for live sound.
  • This passive PA speaker delivers 400W continuous power for robust performance.
  • Durable polypropylene build ensures this PA loudspeaker withstands rigorous use.
  • Enjoy flexible connectivity with dual Neutrik Speakon connectors on this PA speaker.
  • Lightweight design at 44.53 lbs makes PA system setup and transport a breeze.

What's in the box:

  • Electro-Voice Zx4 400-Watt 15 " 2-Way Passive Loudspeaker
  • Electro-Voice 5 Year Limited Warranty
