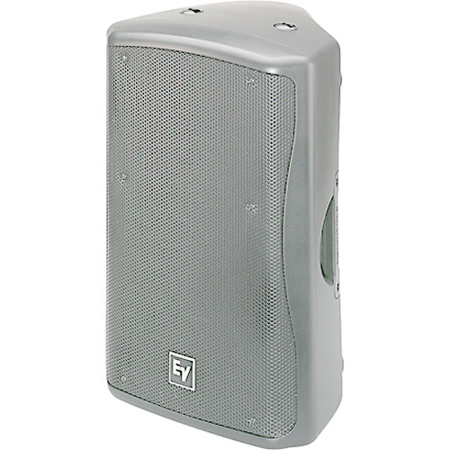

Electro-Voice Zx5-60 600W 15" 2-Way Full-Range Loudspeaker, 60x60deg., 8 Ohms Nominal Impedance, 98 dB Sensitivity, 58Hz-18kHz, 2x Neutrik Speakon, Single, White

SKU: EVZX560W MFR: F.01U.265.601
Earn VIP Reward Points

Key Features

  • Experience powerful, full-range sound with this 600W Electro-Voice PA loudspeaker.
  • Achieve optimal audio clarity with a frequency response of 58 Hz - 18 kHz in this speaker.
  • Enjoy wide sound dispersion with 60x60 degree coverage, perfect for live sound events.
  • This durable PA speaker features a polypropylene enclosure and steel grille for longevity.
  • Easily suspend this loudspeaker using multiple attachment points for versatile setups.
  • Connect effortlessly with Neutrik Speakon connectors for reliable PA system integration.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice Zx5-60 Specifications

  • Frequency Response (-3 dB)

    58 Hz - 18 kHz

  • Frequency Response (-10 dB)

    39 Hz - 20 kHz

  • Recommended Hi-pass Frequency

    36 Hz

  • Axial Sensitivity

    98 dB (1W/1m)

  • Max. Calculated SPL

    132 dB

  • Horizontal Coverage

    60 deg.

  • Vertical Coverage

    60 deg.

  • Power Handling (Passive)

    600W Continuous, 2400W Peak

  • LF Power Handling (Biamp)

    500W Continuous, 2000W Peak

  • HF Power Handling (Biamp)

    40W Continuous, 160W Peak

  • LF Transducer

    DVX3150, 15" (381mm) Driver

  • HF Transducer

    ND2, 1" (25.4mm) exit Neodymium Compression Driver

  • Crossover Frequency

    1.5 kHz

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6.5 Ohms

  • Connectors

    (2) Neutrik Speakon NL4's

  • Enclosure Material

    Polypropylene Structural Foam

  • Suspension

    Enclosure has locations for 5 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts - 2 on Top, 2 on Bottom, 2 on Side, and 4 on Rear of Enclosure

  • Grille

    Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo

  • Environmental

    IEC 529 IP24

  • Dimensions (H x W x D)

    692 x 446 x 411mm (27.24 x 17.55 x 16.18")

  • Weight

    22.2 kg (49.0 lbs)

  • UPC Code

    00800549682718

About Electro-Voice Zx5-60

Under the umbrella of superior audio performance and versatility, the Electro-Voice ZX5-60 600W 15" 2-Way Full-Range Loudspeaker in stylish white stands as a testament to uncompromising quality and innovation. This compact, easy-to-use loudspeaker is powered by advanced transducers, the heart of its high-quality sound production.

The DVX3150, a high-performance low-frequency transducer, is the first of these. Utilizing advanced computer-aided design techniques, Electro-Voice has engineered a forced air, directional voice coil cooling system for enhanced power and efficiency. The suspension and magnetic structure have been optimized through finite element analysis, ensuring long, linear travel, reduced distortion, and extended low-frequency response. The result is a reliable, powerful loudspeaker with a 500W power rating, housed in a lightweight transducer, thanks to the use of forged magnetic components and special materials.

The second transducer is the ND2, a 2" voice coil compression driver. Its neodymium motor structure allows for maximum output while minimizing size and weight. The precision phasing plug and titanium diaphragm enhance high-frequency performance, while the integral heatsink ensures cooling for high power output.

The ZX5-60's enclosure is a marvel of modern design, crafted from injection-molded high-impact polypropylene structural foam for exceptional durability. The enclosure's geometry has been meticulously designed to maximize rigidity and bass response. The ZX5-60 also doubles as a perfect stage monitor, offering two angles (45 degrees or 55 degrees) without the need for additional accessories.

Equipped with three anchor plates for rigging with single stud-fittings and two additional anchor plate attachment points on the bottom, the ZX5-60 is ready for any setup. For permanent suspension or bracket attachment, the ZX5-60 also features two M8 inserts on the top and bottom, two under the handle, and four on the back of the enclosure, totaling 10 attachment points.

In summary, the Electro-Voice ZX5-60 600W 15" 2-Way Full-Range Loudspeaker is a powerful, reliable, and high-quality audio solution, designed to deliver superior sound performance in a variety of settings.

Electro-Voice Zx5-60 Features

  • DVX3150 15" LF Transducer with Forced Air Cooling
  • ND2 2" Voice Coil, 1" Exit Neodymium Compression Driver
  • 60deg. x 60deg. Coverage Pattern
  • 600W Continuous (2400W) Power Handling
  • High Sensitivity, 132 dB Maximum SPL
  • Adjustable Monitor Angle (45deg. or 55deg.)
  • 3 Anchor Plates for Single Stud Fittings and 10 Integral Suspension Points
  • Passive/Biamp Selectable

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience powerful, full-range sound with this 600W Electro-Voice PA loudspeaker.
  • Achieve optimal audio clarity with a frequency response of 58 Hz - 18 kHz in this speaker.
  • Enjoy wide sound dispersion with 60x60 degree coverage, perfect for live sound events.
  • This durable PA speaker features a polypropylene enclosure and steel grille for longevity.
  • Easily suspend this loudspeaker using multiple attachment points for versatile setups.
  • Connect effortlessly with Neutrik Speakon connectors for reliable PA system integration.

What's in the box:

  • Electro-Voice Zx5-60 600W 15 " 2-Way Full-Range Loudspeaker
  • 3x Anchor Plates
  • 10x M8 Metric Suspension Insert Points
  • Electro-Voice 5 Year Limited Warranty
