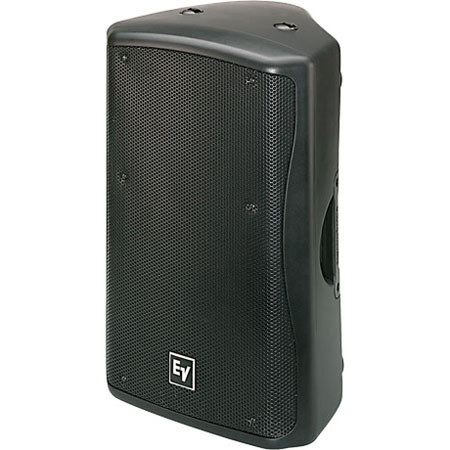

Electro-Voice Zx5-90PI 600W 15" 2-Way Full-Range Loudspeaker, 90x50deg., 8 Ohms Nominal Impedance, 98 dB Sensitivity, 58Hz-18kHz, 2x Neutrik Speakon, Single, Black

The Electro-Voice ZX5-90PI 600W 15" 2-Way Black Full-Range Loudspeaker is the new standard of no compromise audio performance and versatility in a simple to use, compact package. At its heart are the transducers. First is the DVX3150 high performance low frequency transducer. EV used advanced computer aided design techniques to create forced air, directional voice coil cooling for high power and efficiency. Finite element analysis was used to optimize the suspension and magnetic structure for long, linear travel to provide low distortion and greater LF extension. These features and details, such as forged magnetic components and special materials, provide reliability with a 500W power rating in a lightweight transducer. Next is the ND2, a 2" voice coil compression driver based on neodymium motor structure to allow for maximum output while reducing size and weight to a minimum. Its precision phasing plug and titanium diaphragm provide better HF performance, while the integral heatsink provides cooling for high power output.

The high tech enclosure uses injection-molded high-impact polypropylene structural foam to make the ZX5-90PI incredibly durable. The enclosure geometry elements have been carefully designed to provide maximum rigidity and bass response. By design the ZX5-90PI is also a perfect solution for stage monitors by allowing two angles (45deg. or 55deg.) without any additional accessories. The ZX5-90PI is equipped with three anchor plates for rigging with single stud-fittings, along with two more possible anchor plate attachment points on the bottom. For permanent suspension or attaching brackets, the ZX5-90PI also has two M8 inserts on the top and bottom, two under the handle and four on the back of the enclosure, for a total of 10.
