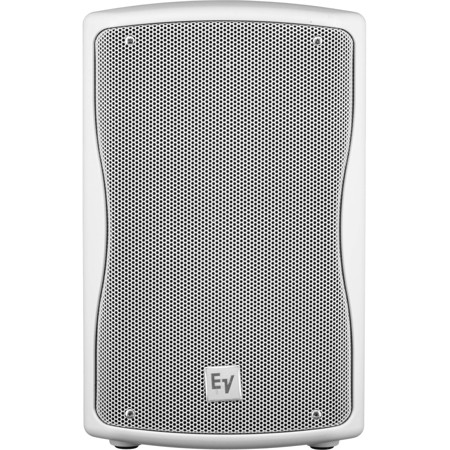

Electro-Voice ZXA1-90 8" 2-Way 120V Powered Full-Range Speaker, White, Single
Electro-Voice at NAMM 2012
Electro-Voice ZXA1-90: Picture 1 thumbnail
See all Electro-Voice items

Electro-Voice ZXA1-90 8" 2-Way 120V Powered Full-Range Loudspeaker, 800W Power, White, Single

SKU: EVZXA190W12V

This item is no longer available.

Recommended Alternatives

Electro-Voice EVID-C44: Picture 1 regular
Electro-Voice EVID-C44 Ceiling Mount Speaker System, White
$975.00
Electro-Voice EVID-S8.2T: Picture 1 regular
Electro-Voice EVID-S8.2T 8" 2-Way 70/100V Commercial Loudspeaker, Pair, White
$803.00$679.00
Electro-Voice EVID-S8.2: Picture 1 regular
Electro-Voice EVID-S8.2 8" 2-Way 8 Ohms Commercial Loudspeaker, Pair, White
$778.00$669.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Electro-Voice ZXA1-90 Specifications

  • Freq. Response (-3dB)

    60Hz-20kHz

  • Freq. Range (-10dB)

    48Hz-20kHz

  • Max. Measured SPL

    126dB

  • Coverage (Horiz. x Vert.)

    90 deg. x 50 deg.

  • Power Rating

    800W

  • LF Transducer

    (1) EV-8L, 204mm (8") Woofer

  • HF Transducer

    DH-2005, 25mm (1") Exit Compression Driver

  • Crossover Frequency

    1.8kHz

  • Connectors

    (1) XLR Mic Input with Gain Control, (1) XLR/TRS Combo Jack, (1) XLR Link Output

  • Enclosure Material

    ABS

  • Grille

    18GA Steel with Black Powdercoat

  • Mains Requirements

    95V-132V, 0.6A, 50-60Hz

  • Dimensions (HxWxD)

    457 x 282 x 264mm (17.99 x 11.10 x 10.39")

  • Weight

    8.6kg (18.96 lbs)

  • UPC Code

    800549682794

About Electro-Voice ZXA1-90

Make your live sound production stand out with the Electro-Voice ZXA1-90 8" 2-Way 120V Powered Full-Range Loudspeaker. This high-quality, durable and reliable loudspeaker is a self-powered version of the best-selling ZX1 compact two-way loudspeaker, a testament to Electro-Voice's commitment to superior audio technology.

The ZXA1-90 is equipped with an impressive 800W power amplifier module, a feature derived from Electro-Voice's esteemed Tour Grade series. This series is renowned for its world-class audio quality and reliability, making it a trusted choice for professionals worldwide.

This powerful loudspeaker is designed to deliver exceptional sound quality, making it an ideal choice for live sound production. It's not just about power, though. The ZXA1-90 also offers versatility with its 1/4" and XLR connection options, accommodating different applications with ease.

Encased in a sleek white exterior, this professional-grade loudspeaker not only performs well but also adds a touch of elegance to your setup. Experience the difference in audio quality with the Electro-Voice ZXA1-90 8" 2-Way 120V Powered Full-Range Loudspeaker.

Electro-Voice ZXA1-90 Features

  • Integrated 800 watt power amplifier
  • Bi-amplified design with transducer protection
  • EV8L 8" high-output LF transducer
  • DH2005 1" exit true compression driver
  • 90 deg. x 50 deg. coverage pattern
  • Rotatable horn design
  • 126 dB maximum SPL
  • Selectable high-pass filter for use with subwoofers
  • Line and microphone inputs
  • Integral monitor angle on enclosure
  • Built-in pole mount
  • Lightweight (less than 20 lbs) with integral handle for easy carrying

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-quality 8" 2-Way 120V Powered Full-Range Loudspeaker, perfect for live sound production
  • Versatile connectivity options with both 1/4" and XLR connections
  • Durable and reliable, designed by reputable audio equipment manufacturer, Electro-Voice
  • Professional-grade audio equipment, offering superior sound quality
  • Sleek white exterior, adding a touch of elegance to any setup
