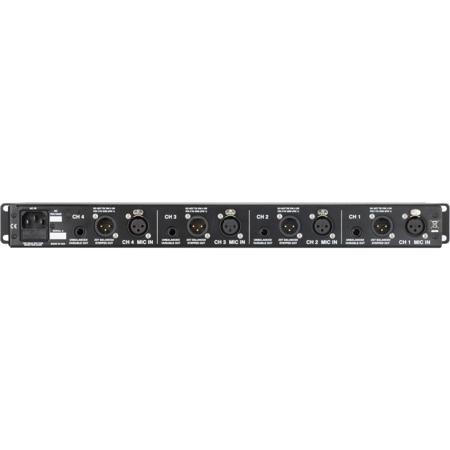

Earthworks 1024 Four Channel Zero Distortion Technology Preamplifier
See all Earthworks items

Earthworks 1024 Four Channel Zero Distortion Technology Precision Microphone Preamplifier, Solid State, 1 Rack Space

SKU: EW1024

This item is no longer available.

Recommended Alternatives

Earthworks : Picture 1 regular
Earthworks 1022 Two Channel Zero Distortion Technology Preamplifier
$2,749.00$2,199.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Earthworks 1024 Four Channel Zero Distortion Technology Preamplifier Specifications

  • Preamp Type

    Solid State

  • Number of Channels

    4

  • Frequency Response

    2Hz-100kHz +/-0.1dB, 1Hz-200kHz +/-0.5dB

  • Impulse Response

    1.4ms

  • Distortion

    XLR out: less than 1ppm (0.0001%), 1/4" out 0.001%

  • Input Noise

    1.6nVHz½ at 20dB gain, 0.6nV/Hz½ at 60dB gain

  • EIN

    -132dBV at 20dB gain; -143dBV at 60dB gain

  • Slew Rate

    22V/ms

  • Output DC Offset

    +/- 1 mV typical, servo balanced

  • Power Requirement

    120V AC (100V and 200-240V versions available)

  • Input

    4 XLR Female balanced transformerless

  • Input Impedance

    10K Ohms phantom on, 100K Ohms phantom off

  • Outputs

    4 XLR Male balanced transformerless (stepped)
    4 1/4" TRS XLR Fem. balanced transformerless (variable)

  • Dimensions

    1 Rack space: 1.75 x 19 x 10.375" (4.44 x 48.26 x 26.35cm)

  • Weight

    6lbs (2.72kg)

  • UPC Code

    827517113005

About Earthworks 1024 Four Channel Zero Distortion Technology Preamplifier

The Earthworks 1024 Zero Distortion TechnologyTM (ZDT) precision microphone preamplifier is a discrete-component Class A bipolar input circuitry device. The primary signal path from the balanced XLR input to a balanced and symmetrical XLR output is completely differential (the signal is never converted to single-ended). The are no transformers or electrolytic capacitors in the signal path. All connectors and switches are gold-plated.

The ZDT preamplifier have extremely flat wideband frequency response from 1Hz to 200kHz, slew rate of 22V/ms and the lowest self-noise. The nonlinear distortion is kept well below one part per million even at the highest signal levels (below clipping). A separate 1/4" output has additional vernier gain reduction of up to 20dB after the stepped gain.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Earthworks 1024 Four Channel Zero Distortion Technology Preamplifier
  • Earthworks 2 Year Warranty
