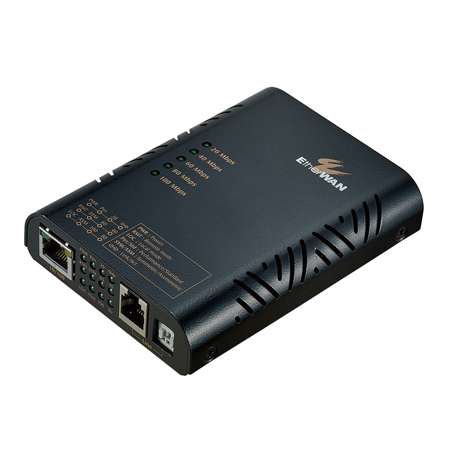

EtherWAN ED3501 10/100BASE-TX Industrial Ethernet Extender
See all EtherWAN items

EtherWAN ED3501 10/100BASE-TX Industrial Ethernet Extender

SKU: EWD351 MFR: ED3501
Be the first to review this itemAsk a Question
$344.50
$365.48
Save: $20.98 (6%)
OR
$58/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Extend your network reliably with this EtherWAN Ethernet Extender, up to 8,530ft!
  • Achieve optimal performance with this industrial Ethernet extender, supporting speeds up to 100Mbps.
  • This Ethernet extender is built with a durable aluminum casing and IP30 rating for harsh environments.
  • Enjoy flexible installation with DIN-rail or wall mounting options for this Ethernet extender.
  • Ensure seamless connectivity with auto-negotiation and MDI/MDIX support on this extender.
  • This Ethernet extender supports a wide operating temperature range from 14 to 140°F for reliability.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EtherWAN ED3501 Specifications

Interface

Interface

Jump to...

  • Ethernet Port

    Port: One RJ-45 port
    Speed: 10/100Mbps
    Distance: 100 meters (328ft.)

    Cable:
    10BASE-T: UTP Cat. 3, 4, 5 (2-pair wire)
    100BASE-TX: UTP Cat. 5 (4-pair wire)

  • Ethernet Extender Port

    Port: One RJ-11/Terminal Block port
    Speed: Up to 100Mbps
    Distance: 2600 meters (8,530ft.)
    Cable: Telephone wire 24AWG (0.5mm diameter, 1-pair wire) or larger

  • DIP Switch

    DIP 1: Auto/Loc
    DIP 2: SYM/ASM
    DIP 3: Perf./Std.

  • LED Indicators

    Per Unit: Power 1
    Per 10/100TX Port: Link/Activity, full-duplex
    Line Speed: 100/80/60/40/20Mbps and link below
    SYM: Symmetric mode (distance <=1000m)
    ASM: Asymmetric mode
    RMT: Remote mode
    LOC: Local mode
    Per: On/Performance mode; Off/Standard mode

Technology

Jump to...

  • Standards

    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3x full duplex and flow control

  • Processing Type

    Half-duplex back-pressure and full-duplex
    flow control
    Auto-negotiation
    Auto MDI/MDIX

Power

Jump to...

  • Input

    12VDC (DC Jack)

  • Power Consumption

    4.56W max. 0.38A@12VDC

  • Protection

    Over Current Protection
    Reverse Polarity Protection

Environmental

Jump to...

  • Operating Temp.

    14 to 140 Degree F (-10 to 60 Degree C)

  • Storage Temp.

    -4 to 158 Degree F (-20 to 70 Degree C)

  • Relative Humidity

    5% to 95% (non-condensing)

Regulatory

Jump to...

  • ISO

    Manufactured in ISO-9001 facility

  • EMI

    FCC Part 15B Class A
    VCCI Class A
    EN 61000-6-4
    EN 61000-3-3

  • EMS

    EN 61000-6-2
    EN 61000-4-2 (ESD)
    EN 61000-4-3 (Radiated RFI)
    EN 61000-4-4 (Burst)
    EN 61000-4-5 (Surge)
    EN 61000-4-6 (Induced RFI)
    EN 61000-4-8 (Magnetic field)

  • Safety

    UL 60950-1
    EN 60950-1
    IEC 60950-1

  • Vibration

    IEC 60068-2-6 Fc

  • Shock

    IEC 60068-2-27 Ea

  • Free Fall

    FED STD 101C Method 5007.1

Physical

Jump to...

  • Casing Material

    Aluminum

  • IP Rating

    IP30

  • Installation Type

    DIN-rail mounting (Top hat type 35mm) or wall mounting

  • Dimensions (W x D x H)

    3.16 x 4.30 x 0.94" (80.3 x 109.2 x 23.8mm)

  • Weight

    5.28 oz (149.68g)

Other

Jump to...

  • UPC Code

    847653003848

About EtherWAN ED3501

The ED3501 Ethernet extender allows the extension of IP services beyond normal Ethernet distance limitations without changing cables, breaking the 100-meter Ethernet barrier.

The ED3501's design features high shock, vibration, electrical noise immunity, an operating temperature range from -10 Degree C to 60 Degree C, and ruggedized aluminum housing. The ED3501 is the ideal Ethernet extender for environments where connectivity is crucial.

High Speed Performance
• Up to 100Mbps at 300 meters distance
• Up to 1Mbps at 2600 meters distance

Industrial Operating Temperature
-10 to 60 Degree C (14 to 140 Degree F) operating temperature range design is suitable for installation in outdoor cabinets

EtherWAN ED3501 Features

  • Long distance transmission of 100Mbps rate at 300 meters, or 1Mbps at 2600 meters
  • LEDs display transmission rate on front panel
  • DIN-Rail or wall mounting

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extend your network reliably with this EtherWAN Ethernet Extender, up to 8,530ft!
  • Achieve optimal performance with this industrial Ethernet extender, supporting speeds up to 100Mbps.
  • This Ethernet extender is built with a durable aluminum casing and IP30 rating for harsh environments.
  • Enjoy flexible installation with DIN-rail or wall mounting options for this Ethernet extender.
  • Ensure seamless connectivity with auto-negotiation and MDI/MDIX support on this extender.
  • This Ethernet extender supports a wide operating temperature range from 14 to 140°F for reliability.

What's in the box:

  • EtherWAN ED3501 10/100BASE-TX Industrial Ethernet Extender
  • 12VDC Power Adapter
  • EtherWAN Lifetime Limited Warranty
