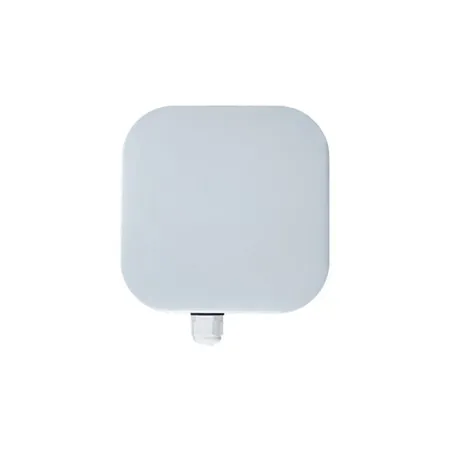

EtherWAN EasyLink Pro MP Series Wireless Bridge Base with 2x Bridge Clients
EtherWAN EasyLink Pro MP Series: Picture 1 thumbnail
EtherWAN EasyLink Pro MP Series: Picture 2 thumbnail
See all EtherWAN items
New Arrival

EtherWAN EasyLink Pro MP Series Wireless Bridge Base with 2x Bridge Clients

SKU: EWEASYLINKPR MFR: EASYLINK-PRO-US-MP-02
Be the first to review this itemAsk a Question
$2,088.00
OR
$174/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience high-speed Wi-Fi 6/6E connectivity, perfect for seamless streaming and rapid data transfers.
  • Enjoy extended coverage range with this wireless bridge, ensuring strong signals across your entire property.
  • Benefit from robust security protocols like WPA3 Passphrase and 256-bit AES-CCM Encryption for safe networking.
  • Achieve multi-device support, connecting numerous devices simultaneously without compromising performance.
  • Set up your network effortlessly with the easy setup process, getting online quickly and efficiently.
  • Utilize this wireless access point to bridge networks across buildings, ideal for campus or business environments.
See More Product Details
New Item?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EtherWAN EasyLink Pro MP Series Specifications

General

General

Jump to...

  • Wireless

    Frequency: 5GHz
    Max data rate: 2400 Mbit/s
    Number of chains: 2 per unit
    Standards 802.11a/n/ac/ax
    WPA3 Passphrase
    256-bit AES-CCM Encryption
    Dynamic Frequency selection

  • Layer 2 Features

    Auto-negotiation for port speed and duplex

    Redundant Protocols (always enabled)
    IEEE 802.1D STP
    IEEE 802.1w RSTP
    IEEE 802.1s MSTP

Interface

Jump to...

  • Ethernet

    Primary Node: 10/100/1000BASE-T Passive PoE
    Auxiliary Node: 10/100/1000BASE-T

  • Wireless

    802.11a/n/ac/ax

Technology

Jump to...

  • Standards

    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-T
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x full duplex and flow control
    IEEE 802.1D STP
    IEEE 802.1s MSTP
    IEEE 802.1w RSTP
    IEEE 802.11w Management Frame Protection (MFP)

  • Power

    PoE in (Passive PoE)
    PoE in input Voltage 18-28V
    Max power consumption 15W

Environmental

Jump to...

  • Operating Temperature

    -40 to 167 Degree F (-40 to 75 Degree C)

  • Storage Temperature

    -49 to 185 Degree F (-45 to 85 Degree C)

  • Relative Humidity

    5% to 95% (non-condensing)

  • Wind Survivability

    200km/h

  • Environmental Test Compliance

    IEC 60068-2-6 Fc (Vibration Resistance)
    EN 61000-4-3 (Radiated RFI)

Regulatory

Jump to...

  • ISO

    Manufactured in ISO-9001 facility

  • EMI

    FCC Part 15B Class A
    PCC Part 15C

Physical

Jump to...

  • Casing Material

    UV Protected Polystyrene case

  • Installation Type

    Pole/Wall

  • Dimensions (W x H x D)

    Primary Node: 10.63 x 22.25 x 3" (270 x 565 x 76mm)
    Auxiliary Node: 7.28 x 7.28 x 2.5" (185 x 185 x 63.5mm)

Auxiliary Node Antenna

Jump to...

  • VSWR

    < 2.0@ 5-5.9GHz

  • Dual polarized

    Horizontal & Vertical

  • High gain

    Up to 13dBi

  • Front to Back Ratio

    >20dB

  • Port isolation

    >30dB

  • Frequency Range

    5-5.9GHz

  • Gain

    13dBi typ.

  • Polarization

    Dual linear-V & H

  • Beamwidth Horizontal

    37 deg@ -3dB

  • Beamwidth Vertical

    37 deg @ -3dB

  • Impedance

    50 Ohm

  • RF Interface

    2 x SMA Female

  • Front-to-Back Ratio

    >20dB

  • Port-to-Port Isolation

    >30dB

Primary Node Antenna

Jump to...

  • VSWR

    2.5: 1 Max. <2

  • Polarization

    Linear & Vertical
    Vertical & Horizontal

  • Gain

    8 dBi Vertical
    7 dBi Horizontal

  • Frequency range

    5150 - 5875 MHz
    4.9 - 5.9GHz Vertical
    5 - 5.9GHz Horizontal

  • Beam width

    Horizontal 360 Degree
    Vertical 18 Degree

  • Impedance

    50 Ohm

  • Temperature

    -40 Degree F to 185 Degree F (-40 Degree C to +85 Degree C)

  • Humidity

    90% @ 77 Degree F (25 Degree C)

About EtherWAN EasyLink Pro MP Series

The EasyLink Pro MP series is a high-speed pre-configured Point to Multipoint Bridge kit that allows for connecting up to 6 sets of remote locations wirelessly up to 1.5 mile away. EasyLink Pro MP's simple setup allows you to connect locations by mounting the hardware, powering them on, and aligning the units using the built-in alignment LEDs.

Each kit contains one central bridge unit plus two/four/six auxiliary units that connect automatically using a highly secure, unique, and hidden SSID and randomly generated passphrase to keep your the equipment secure right out of the box. There is no need for any setup software, just mount, power, and align using the built in alignment LEDs, and you are connected.

Easy
• Mount units to a pole or wall using included mount kit
• Signal strength LED's for easy alignment
• Just power and align using supplied PoE injectors and power supplies
• No technical expertise or configuration needed. Simply mount, power, and align units for instant connectivity.

Highly Secure
• Encrypted & Authenticated Wireless Connection (WPA3)
• Every kit has unique SSID and security settings
• Management Frame Protection (MFP) enabled

Hardened-Grade for Outdoor & Harsh Environments
• Fanless and ruggedized outdoor IP67 enclosure (Rainproof)
• Wide operating temperature range (-40 to 167 Degree F)
• Connections up to 2 miles away

EtherWAN EasyLink Pro MP Series Features

  • Up to 2400Mbps data rate for multiple video connections
  • Plug & Play design - simply power up and align units w/ built in alignment LEDs
  • Connect up to 6 remote locations
  • Kit includes all accessories needed for powering up and mounting
  • Highly secure with encrypted and authenticated wireless connection (WPA2)
  • Hardened-grade and NEMA-TS2 compliant for outdoor and harsh environments

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience high-speed Wi-Fi 6/6E connectivity, perfect for seamless streaming and rapid data transfers.
  • Enjoy extended coverage range with this wireless bridge, ensuring strong signals across your entire property.
  • Benefit from robust security protocols like WPA3 Passphrase and 256-bit AES-CCM Encryption for safe networking.
  • Achieve multi-device support, connecting numerous devices simultaneously without compromising performance.
  • Set up your network effortlessly with the easy setup process, getting online quickly and efficiently.
  • Utilize this wireless access point to bridge networks across buildings, ideal for campus or business environments.

What's in the box:

  • Wireless Bridge Base
  • 2x Wireless Bridge Clients
  • 3x Power Supplies
  • 3x Passive PoE Injectors
  • 3x Passive PoE Injector/Converter
  • 3x Mounting Hardware
  • EtherWAN 3 Year Limited Warranty
