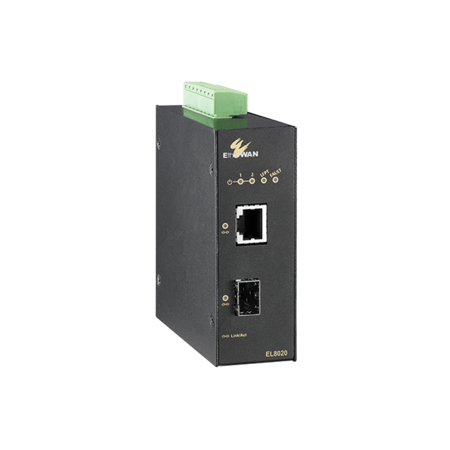

EtherWAN EL8020-V1E 10/100/1000BASE-TX to 100/1000 SFP Hardened Media Converter

The EL8020 Series provides media conversion between 10/100/1000BASE-TX and 100/1000 SFP Fiber. Built specifically for mission critical applications in harsh environments, the EL8020's hardened design features high shock & vibration resistance, electrical noise immunity, wide operating temperature range from -40 to 75 Degree C (-40 to 167 Degree F), and aluminum housing. With two power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options, the EL8020 is the ideal media converter for environments where connectivity is crucial.

Full Gigabit bandwidth and Jumbo frames
• 10/100/1000BASE-TX and 100/1000 SFP Ethernet transmission conversion
• 1000Mbps Full duplex and full wire-speed forwarding rate
• Jumbo frames up to 10K bytes to increase throughput and transmission efficiency

Port Failure Alarm
Relay alarm configured by DIP switch to notify users when power fails or link is down

Hardened Grade
• Supports -40 to 75 Degree C (-40 to 167 Degree F) operating temperature
• Redundant power inputs on terminal block connector
• Supports DIN-Rail mounting

Link-Fault-Pass-Through (LFPT)
• Provides constant monitoring of the links connected to the media converters
• If a copper or a fiber link fails, the media converter will pass the fail state on throughout the link, disabling the fiber link and the copper link on the opposite end
