EtherWAN EasyLink Series Preconfigured IP67 Wireless Bridge, 2-Pack
See all EtherWAN items

EtherWAN EasyLink Series Preconfigured IP67 Wireless Bridge, 2-Pack

SKU: EWLINK3 MFR: EASYLINK-300-US
Be the first to review this itemAsk a Question
$533.33
OR
$89/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Get reliable WiFi connectivity with this preconfigured wireless bridge, no setup needed.
  • Experience strong security with WPA2 Passphrase & 256-bit AES-CCM encryption for peace of mind.
  • Enjoy a fast processor and data rates up to 300 Mbps with the 802.11a/n wireless standard.
  • Extend your network easily; this wireless access point supports point-to-point or multi-point setups.
  • With its rugged IP67 casing, this wireless bridge thrives in extreme conditions, from -40° to 75°C.
  • Benefit from the latest standard with dual linear antennas providing up to 13 dBi gain for superior range.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EtherWAN EasyLink Bridge Kit Specifications

Hardware Wireless

Hardware Wireless

Jump to...

  • Frequency

    5 GHz

  • Max data rate

    300 Mbit/s

  • Number of chains

    2

  • Standards

    802.11a/n
    WPA2 Passphrase
    256-bit AES-CCM Encryption
    Dynamic Frequency selection

Hardware Layer 2 Features

Jump to...

  • Layer 2 Features

    Auto-negotiation for port speed and duplex

  • Redundant Protocols (always enabled)

    IEEE 802.1D Spanning Tree Protocol (STP)
    IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

Hardware Interface

Jump to...

  • Ethernet

    10/100/1000BASE-T Passive PoE

  • Wireless

    802.11a/n

Hardware Environmental

Jump to...

  • Operating Temp.

    -40 to 167 Degree F (-40 to 75 Degree C)

  • Storage Temp.

    -49 to 185 Degree F (-45 to 85 Degree C)

  • Relative Humidity

    5% to 95% (non-condensing)

  • Wind Survivability

    200km/h

Hardware Regulatory

Jump to...

  • ISO

    Manufactured in ISO-9001 facility

  • EMI

    FCC Part 15B Class A
    PCC Part 15C

Hardware Environmental Test Compliance

Jump to...

  • Environmental Test Compliance

    IEC 60068-2-6 Fc (Vibration Resistance)
    EN 61000-4-3 (Radiated RFI)

Hardware Technology

Jump to...

  • Standards

    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-T
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x full duplex and flow control
    IEEE 802.1D STP
    IEEE 802.1s MSTP
    IEEE 802.1w RSTP
    IEEE 802.11w Management Frame
    Protection (MFP)

  • Power

    PoE in (Passive PoE)
    PoE in input Voltage 6-30V
    Max power consumption 10W

Hardware Physical

Jump to...

  • Casing Material

    UV Protected Polystyrene case

  • Installation Type

    Pole/Wall

  • Dimensions (W x D x H)

    7.28 x 7.28 x 2.5" (185 x 185 x 63.5mm)

Antenna Performance

Jump to...

  • VSWR

    < 2.0 @ 5 - 5.9 GHz

  • Dual polarized

    Horizontal & Vertical

  • High gain

    Up to 13 dBi

  • Front to Back Ratio

    > 20dB

  • Port isolation

    > 30dB

Antenna Electrical

Jump to...

  • Frequency Range

    5 - 5.9 GHz

  • Gain

    13 dBi typ.

  • Polarization

    Dual linear - V & H

  • Beamwidth Horizontal

    37 deg @ -3dB

  • Beamwidth Vertical

    37 deg @ -3dB

  • VSWR

    < 2.0 typ.

  • Impedance

    50 Ohm

  • RF Interface

    2x SMA Female

  • Front-to-Back Ratio

    > 20 dB

  • Port-to-Port Isolation

    > 30 dB

Other

Jump to...

  • UPC Code

    847653004777

About EtherWAN EasyLink Bridge Kit

EtherWAN's EasyLink is a pre-configured point to point (PtP) Bridge kit which allows for connecting remote locations wirelessly up to 2 miles away. EasyLink's simple setup allows you to connect locations by mounting the hardware, powering them on and aligning the units using the built-in alignment LEDs. Each kit contains two paired units that connect automatically using a highly secure, unique, hidden SSID and randomly-generated passphrase to keep your valuable equipment secure right out of the box. No need for complicated setup software, just plug it in, aim it and you are connected.

Easy
• Mount units to a pole or wall using included mount kit
• Signal strength LED's for easy alignment
• Just power and align using supplied PoE injectors and power supplies
• No technical expertise needed

Highly Secure
• Encrypted & Authenticated Wireless Connection (WPA2)
• Every kit has unique SSID and security settings
• Management Frame Protection (MFP) Enabled

Hardened-Grade for Outdoor & Harsh Environments
• Fanless and ruggedized outdoor IP67 enclosure (Rainproof)
• Wide operating temperature range (-40 Degree to 167 Degree F)
• Connections up to 2 miles away

EtherWAN EasyLink Bridge Kit Features

  • Highly Secure
  • 2 x 2 MIMO antennas with high gains
  • Hardened grade for Outdoor and Harsh Environments
  • Wide operating temperature range for extreme environments
  • Fanless and ruggedized outdoor IP67 enclosure
  • RF strength LEDs to ease installation effort

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Get reliable WiFi connectivity with this preconfigured wireless bridge, no setup needed.
  • Experience strong security with WPA2 Passphrase & 256-bit AES-CCM encryption for peace of mind.
  • Enjoy a fast processor and data rates up to 300 Mbps with the 802.11a/n wireless standard.
  • Extend your network easily; this wireless access point supports point-to-point or multi-point setups.
  • With its rugged IP67 casing, this wireless bridge thrives in extreme conditions, from -40° to 75°C.
  • Benefit from the latest standard with dual linear antennas providing up to 13 dBi gain for superior range.

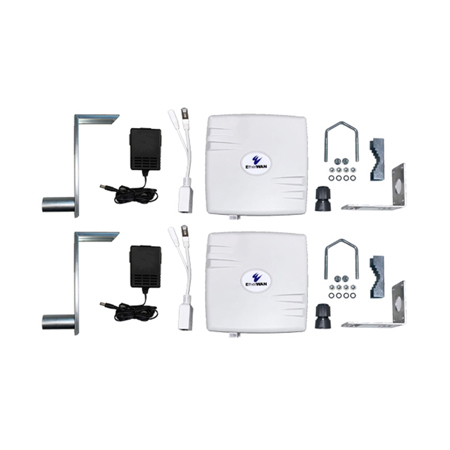

What's in the box:

  • 2x EtherWAN EasyLink Wireless Bridge
  • 2x Wall and Pole Mounting Hardware
  • 2x PoE Injectors
  • 2x Power Supplies
  • Antennas
  • EtherWAN 3 Year Limited Warranty
