EtherWAN EasyLink MP Hardened Wireless Bridge Base with 4x Bridge Clients
See all EtherWAN items

EtherWAN EasyLink MP Hardened Wireless Bridge Base with 4x Bridge Clients

SKU: EWLINK3MP4 MFR: EASYLINK-300-US-MP-04
Be the first to review this itemAsk a Question
$2,120.00
OR
$177/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Expand your network easily with this wireless bridge kit, offering seamless connectivity.
  • Experience reliable data transmission with a 300 Mbit/s wireless access point system.
  • This hardened wireless bridge is built to withstand extreme temperatures (-40° to 75°C).
  • Enjoy secure wireless connections with WPA2 Passphrase and 256-bit AES-CCM encryption.
  • Extend your network range with high-gain antennas, up to 11 dBi for superior coverage.
  • Simplify setup with included PoE injectors; perfect for remote wireless access point installs.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EtherWAN EasyLink MP Specifications

General

General

Jump to...

  • Wireless

    Frequency: 5 GHz
    Max data rate: 300 Mbit/s
    Number of chains: 2 per unit
    Standards 802.11a/n
    WPA2 Passphrase
    256-bit AES-CCM Encryption
    Dynamic Frequency selection

  • Layer 2 Features

    Auto-negotiation for port speed and duplex

    Redundant Protocols (always enabled)
    IEEE 802.1D STP
    IEEE 802.1w RSTP
    IEEE 802.1s MSTP

Interface

Jump to...

  • Ethernet

    Primary Node: 10/100/1000BASE-T
    Active PoE 802.3at/bt
    Auxiliary Node: 10/100/1000BASE-T

  • Wireless

    802.11a/n

  • LED Indicators

    System on
    Link Activity
    Signal Strength

Technology

Jump to...

  • Standards

    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-T
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x full duplex and flow control
    IEEE 802.1D STP
    IEEE 802.1s MSTP
    IEEE 802.1w RSTP
    IEEE 802.11w Management Frame Protection (MFP)

  • Power

    Primary Node:
    PoE in (Active PoE 802.3at/bt)
    Max power consumption 17W

    Auxiliary Nodes:
    PoE in (Passive PoE)
    PoE in input Voltage 6-30V
    Max power consumption 11W

Environmental

Jump to...

  • Operating Temp.

    -40 to 167 Degree F (-40 to 75 Degree C)

  • Storage Temp.

    -49 to 185 Degree F (-45 to 85 Degree C)

  • Relative Humidity

    5% to 95% (non-condensing)

  • Wind Survivability

    200km/h

  • Environmental Test Compliance

    IEC 60068-2-6 Fc (Vibration Resistance)
    EN 61000-4-3 (Radiated RFI)

Regulatory

Jump to...

  • ISO

    Manufactured in ISO-9001 facility

  • EMI

    FCC Part 15B Class A
    PCC Part 15C

Physical

Jump to...

  • Casing Material

    UV Protected Polystyrene case

  • Installation Type

    Pole/Wall

  • Dimensions (W x H x D)

    Primary Node: 10.63 x 22.25 x 3" (270 x 565 x 76mm)
    Auxiliary Node: 7.28 x 7.28 x 2.5" (185 x 185 x 63.5mm)

Antenna: Auxiliary Node

Jump to...

  • VSWR

    < 2.0 @ 5GHz

  • Dual polarized

    Horizontal & Vertical

  • High gain

    Up to 11 dBi

  • Medium gain, widebeam radiation pattern

    HPBW approx. 35-40 deg and 75-90deg in elevation and azimuth

  • Front to Back Ratio

    > 16dB

  • Port isolation

    > 25dB

  • Frequency Range

    2400 - 2500 (S-Band)

  • Gain

    11 dBi typ.

  • Polarization

    Dual linear - V & H

  • Beamwidth

    Horizontal: 35 - 40 deg @ -3dB
    Vertical: 75 - 90 deg @ -3dB

Antenna: Primary Node

Jump to...

  • VSWR

    < 2.0 typ.

  • VSWR

    < 2.0 typ.

  • Impedance

    50 Ohm

  • Impedance

    50 Ohm

  • RF Interface

    2x SMA Female

  • Front-to-Back Ratio

    >16 dB

  • Port-to-Port Isolation

    >25 dB

  • Polarization

    Linear & Vertical

  • Peak gain

    8 dBi

  • Average gain

    6 dBi

  • Frequency range

    5150 - 5875 MHz

  • Power handling

    2W (cw)

  • Connector

    N PLUG

  • Temperature

    -40 Degree F to 185 Degree F (-40 Degree C to +85 Degree C)

  • Humidity

    90% @ 77 Degree F (25 Degree C)

Other

Jump to...

  • UPC Code

    847653005279

About EtherWAN EasyLink MP

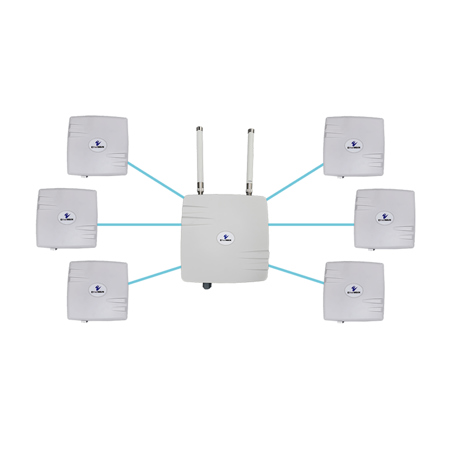

EtherWAN's EasyLink is a pre-configured Multipoint Bridge kit which allows for connecting a set of remote locations wirelessly up to 2 miles away. EasyLink MP's simple setup allows you to connect locations by mounting the hardware, powering them on, and aligning the units using the built-in alignment LEDs. Each kit contains one central bridge unit plus two/four/six auxiliary units that connect automatically using a highly secure, unique, and hidden SSID and randomly generated passphrase to keep your valuable equipment secure right out of the box. No need for complicated setup software, just plug it in, aim it and you are connected.

Easy
• Mount units to a pole or wall using included mount kit
• Signal strength LED's for easy alignment
• Just power and align using supplied PoE injectors and power supplies
• No technical expertise needed

Highly Secure
• Encrypted & Authenticated Wireless Connection (WPA2)
• Every kit has unique SSID and security settings
• Management Frame Protection (MFP) enabled

Hardened-Grade for Outdoor & Harsh Environments
• Fanless and ruggedized outdoor IP67 enclosure (Rainproof)
• Wide operating temperature range (-40 to 167 Degree F)
• Connections up to 2 miles away

EtherWAN EasyLink MP Features

  • Easy set up - just power and align using supplied PoE injectors and power supplies
  • Highly secure with encrypted & authenticated Wireless Connection (WPA2)
  • Hardened-grade for outdoor & harsh environments

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Expand your network easily with this wireless bridge kit, offering seamless connectivity.
  • Experience reliable data transmission with a 300 Mbit/s wireless access point system.
  • This hardened wireless bridge is built to withstand extreme temperatures (-40° to 75°C).
  • Enjoy secure wireless connections with WPA2 Passphrase and 256-bit AES-CCM encryption.
  • Extend your network range with high-gain antennas, up to 11 dBi for superior coverage.
  • Simplify setup with included PoE injectors; perfect for remote wireless access point installs.

What's in the box:

  • Wireless Bridge Base
  • 4x Wireless Bridge Clients
  • 5x Power Supplies
  • 5x Passive PoE Injectors
  • 5x Mounting Hardware
  • EtherWAN 3 Year Limited Warranty
