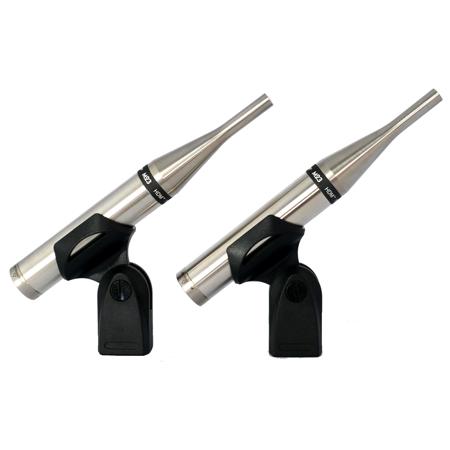

Earthworks M23 Omni High Definition Measurement Microphone, Matched Pair
See all Earthworks items

Earthworks M23 Omnidirectional High Definition Measurement Microphone, 3Hz-23kHz Frequency Response, 65 Ohms Output Impedance, Matched Pair

SKU: EWM23MP

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Earthworks M23 Specifications

  • Frequency Response

    3Hz-23kHz

  • Polar Pattern

    Omnidirectional

  • Sensitivity

    34mV/Pa (-29dBV/Pa)

  • Power Requirements

    24-48V Phantom, 10mA

  • Max Acoustic Input

    140dB SPL

  • Output

    XLR (pin 2+)

  • Output Impedance

    65 Ohms, balanced (50 Ohms ea. pin 2 & 3)

  • Min Output Load

    600 Ohms between pins 2 & 3

  • Noise

    200B SPL equivalent (A weighted)

  • Operating Temperature Range

    -10 deg. C to +40 deg. C ( 14 deg. F to 104 deg. F)

  • Storage Temperature Range

    -20 deg. C to +50 deg. C ( -4 deg. F to 122 deg. F)

  • Dimensions (L x D)

    165 x 22mm (6.49 x 0.86")

  • Weight

    0.35 lbs (158.75g)

  • UPC Code

    827517000565

11 Accessories for Earthworks M23 Omnidirectional High Definition Measurement Microphone, 3Hz-23kHz Frequency Response, 65 Ohms Output Impedance, Matched Pair

  • All Accessories (11)
  • Cables & Adapters (11)
H&A Value Series XLR M to F Professional Microphone Cable - 6'
H&A Value Series XLR M to F Professional Microphone Cable - 6'
$6.49
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 10'
H&A Value Series XLR M to F Professional Microphone Cable - 10'
$6.94
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 15'
H&A Value Series XLR M to F Professional Microphone Cable - 15'
$8.95
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 25'
H&A Value Series XLR M to F Professional Microphone Cable - 25'
$14.95
H&A Value Series XLR M to F Professional Microphone Cable - 50'
H&A Value Series XLR M to F Professional Microphone Cable - 50'
$15.95
H&A Value Series XLR M to F Professional Microphone Cable - 100'
H&A Value Series XLR M to F Professional Microphone Cable - 100'
$23.95
H&A Value Series XLR M to F Professional Microphone Cable - 1.5' RA
H&A Value Series XLR M to F Professional Microphone Cable - 1.5' RA
$6.49
H&A Value Series XLR M to F Professional Microphone Cable - 25' RA
H&A Value Series XLR M to F Professional Microphone Cable - 25' RA
$12.95
H&A Elite Pro 25' XLR M to Angled XLR F Microphone Cable with Rean Connectors
H&A Elite Pro 25' XLR M to Angled XLR F Microphone Cable with Rean Connectors
$24.95
H&A Platinum Pro Quad 15' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Platinum Pro Quad 15' XLR M to XLR F Microphone Cable with Rean Connectors
$24.95
H&A Platinum Pro Quad 25' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Platinum Pro Quad 25' XLR M to XLR F Microphone Cable with Rean Connectors
$28.95

About Earthworks M23

The Earthworks M23 Omni directional High Definition Measurement Microphone (Matched Pair) is designed and calibrated for measurement purposes. It is a pre-polarized condenser microphone directly coupled to a wideband, low output impedance preamplifier. The M23 requires a standard 48V phantom power supply.

It features a linear free-field frequency response from 3Hz to 23kHz, very low handling noise, uniform polar pattern and very high SPL handling capabilities. Its unique circuitry excludes the trans-conductance of the input FET from the overall gain structure. This means the sensitivity remains very stable when the microphone is subjected to variations in ambient temperature. The M23 meets or exceeds ANSI Type 1 requirements.

Applications
Earthworks M23 is ideally suited for acoustical measurements sound system setup and troubleshooting, room acoustics or any application where an accurate free-field measurement microphone is required.

The M23 is simple to operate. Connect the microphone to a microphone preamplifier supplying 48V phantom power using a standard XLR microphone cable. Allow up to one minute for the microphone to settle. Plugging in the microphone "hot" will not damage the microphone and is actually preferred for faster settling. For optimum results point the M23 toward the sound source. This microphone has no removable parts.

Calibration
The microphone is calibrated at the factory at 1 kHz (therefore independent of any frequency weighting).

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Earthworks M23 Omnidirectional High Definition Measurement Microphone (Matched Pair)
  • Mounting Clips
  • Case
  • Calibration Adapter
  • Calibration Chart
  • Earthworks 15 Year Parts and Labor Limited Warranty
