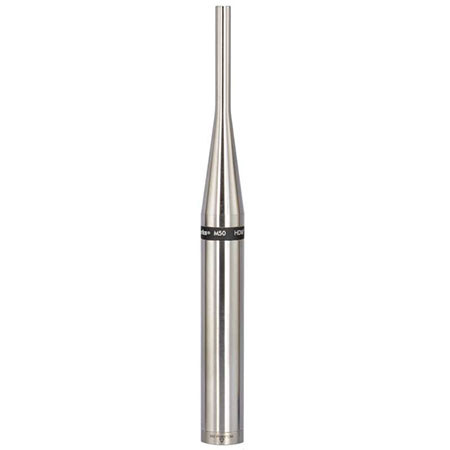

Earthworks M50 Omni High Definition Measurement Microphone, 3Hz-50kHz Frequency Response, 100 Ohms Output Impedance

The Earthworks M50 Omni directional High Definition Measurement Microphone(Matched Pair) is designed and calibrated for measurement purposes. It is a pre-polarized condenser microphone directly coupled to a wideband, low output impedance preamplifier. The M50 requires a standard 48V phantom power supply.

It features a linear free-field frequency response from 3Hz-50kHz, very low handling noise, uniform polar pattern and very high SPL handling capabilities. Its unique circuitry excludes the trans-conductance of the input FET from the overall gain structure. This means the sensitivity remains very stable when the microphone is subjected to variations in ambient temperature. The M50 meets or exceeds ANSI Type 1 requirements.

Applications
Earthworks M50 is ideally suited for acoustical measurements sound system setup and troubleshooting, room acoustics or any application where an accurate free-field measurement microphone is required.

The M50 is simple to operate. Connect the microphone to a microphone preamplifier supplying 48V phantom power using a standard XLR microphone cable. Allow up to one minute for the microphone to settle. Plugging in the microphone "hot" will not damage the microphone and is actually preferred for faster settling. For optimum results point the M50 toward the sound source. This microphone has no removable parts.

Calibration
The microphone is calibrated at the factory at 1 kHz (therefore independent of any frequency weighting).
