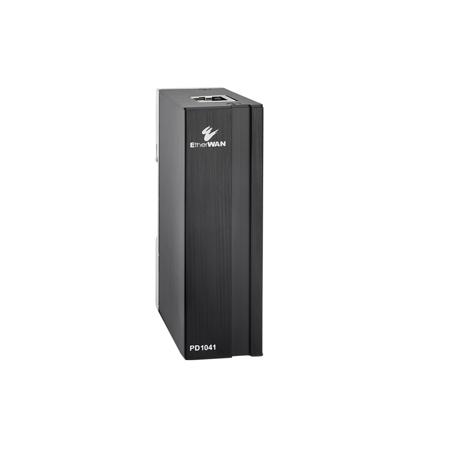

EtherWAN PD1041 Surge Hardened Protection Device with RJ45 Connector
EtherWAN_PD1041 Surge Protector Performance Test
EtherWAN PD1041: Picture 1 thumbnail
EtherWAN PD1041: Picture 2 thumbnail
EtherWAN PD1041: Picture 3 thumbnail
See all EtherWAN items

EtherWAN PD1041 Surge Hardened Protection Device with RJ45 Connector

SKU: EWPD141 MFR: PD1041
Be the first to review this itemAsk a Question
$122.64
$133.91
Save: $11.27 (8%)
Earn VIP Reward Points

Key Features

  • Protect your network with this EtherWAN surge protector, ensuring reliable connectivity.
  • This RJ45 connector offers robust surge protection, safeguarding Ethernet cables and devices.
  • With industrial compliance, this device provides top-tier Ethernet cable surge protection.
  • The EtherWAN PD1041 offers a wide temperature range, ensuring durability in harsh conditions.
  • Aluminum casing and DIN-Rail installation make this Ethernet protector easy to integrate.
  • Enjoy peace of mind with a 3-year warranty on this high-performance Ethernet surge device.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EtherWAN PD1041 Specifications

Electrical

Electrical

Jump to...

  • Maximum continuous

    <=3.3VDC (operating voltage UC)

  • Maximum continuous voltage UC

    Wire-Wire: <=3.3VDC ( +/-60VDC/PoE+)
    Wire-Ground: <=180VDC

  • Nominal current IN

    <=1.5A (25 Degree C)

  • Operating effective current IC at UC

    <=1micro A

  • Residual current IPE

    <=8micro A

  • Nominal discharge surge current

    100A (In (8/20) micros (Core-Core))
    2kA (per signal pair) (In (8/20) micros (Core-Earth))

  • Total surge current (8/20) micros

    10kA

  • Nominal pulse current

    <=40A (Ian (10/700) micros (Core-Core))
    160A (Ian (10/700) micros (Core-Earth))

  • Output voltage limitation

    <=85V (PoE) (at 1kV/micros (Core-Core) spike)
    <=700V (at 1kV/micros (Core-Earth) spike)
    <=9V (at 1kV/micros (Core-Core) static)
    <=700V (at 1kV/micros (Core-Earth) static)
    <=9V (at 100V/s (Core-Core))
    <=300V (at 100V/s (Core-Earth))
    <=9V (at 100V/micros (Core-Core))
    <=600V (at 100V/micros (Core-Earth))

  • Residual voltage at IN

    <=15V
    <=100V (PoE)
    (Conductor-Conductor)

  • Voltage protection level Up (Core-Core)

    <=9V (B2-1kV/25A)
    <=100V (B2-1kV/25A-PoE)
    <=15V (500V/100A)

  • Voltage protection level Up (Core-Earth)

    <=600V
    <=700V (C2-4kV/2kA)

  • Response time tA (Core-Core)

    <=1ns

  • Response time tA (Core-Earth)

    <=100ns

  • Input attenuation aE, sym.

    1dB (<=250MHz)

  • Near-end crosstalk attenuation

    <=35dB (At 250MHz/100 Ohm)

  • Cut-off frequency fg (3dB)

    >500MHz (sym. in 100 Ohm system)

  • Capacity (Core-Core)

    Typ. 5pF (f=1MHz/VR=0V)

  • Capacity (Core-Earth)

    Typ. 2pF (f=1MHz/VR=0V)

  • Surge carrying capacity in acc.

    With IEC 61643-21 (Core-Core):
    B2 (1kV/25A)

    With IEC 61643-21 (Core-Earth):
    B2 (4kV/100A)
    C2 (4kV/2kA)
    D1 (1kA)

Environment

Jump to...

  • Operating Temperature

    -40 to 167 Degree F (-40 to 75 Degree C)

  • Storage Temperature

    -40 to 185 Degree F (-40 to 85 Degree C)

  • Ambient Relative Humidity

    5% to 95% (non-condensation)

Regulatory Approvals

Jump to...

  • ISO

    Manufactured in an ISO 9001 facility

  • Safety

    UL 497B

  • EMI

    CE
    FCC Part 15 Class B
    VCCI

  • Industrial Compliance

    IEC 61643-21

Mechanical

Jump to...

  • Casing

    Aluminum Case
    IP20

  • Installation

    DIN-Rail

  • Connection

    RJ45 Connector

  • Dimensions (W x H x D)

    1.18 x 2.5 x 3.8" (30 x 62.5 x 100mm)

  • Weight

    6.49 oz (184g) (+/-5%)

Other

Jump to...

  • UPC Code

    847653004258

About EtherWAN PD1041

EtherWAN's PD1041 Hardened Surge Protection Device is designed to protect your EtherWAN Switch investment; however any Ethernet network device can be protected from dangerous electrical surges. Designed for harsh environments, the PD1041 can be placed where you need it to protect your valuable network equipment.

Protection Solution Against Voltage Surge
Provides pair-to-pair protection through RJ45 connector.

Flexible Installation
Supports DIN-rail or desktop installation.

Wide Temperature Range
Provides -40 to 75 Degree C operating temperature range for extreme environments

Compatible with 10/100BASE-T, Gigabit and PoE products
Pass-through Data and PoE Power

EtherWAN PD1041 Features

  • Provides pair-to-pair protection through RJ45 connector
  • Compatible with 10/100/1000BASE-T and PoE

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Protect your network with this EtherWAN surge protector, ensuring reliable connectivity.
  • This RJ45 connector offers robust surge protection, safeguarding Ethernet cables and devices.
  • With industrial compliance, this device provides top-tier Ethernet cable surge protection.
  • The EtherWAN PD1041 offers a wide temperature range, ensuring durability in harsh conditions.
  • Aluminum casing and DIN-Rail installation make this Ethernet protector easy to integrate.
  • Enjoy peace of mind with a 3-year warranty on this high-performance Ethernet surge device.

What's in the box:

  • EtherWAN PD1041 Surge Hardened Protection Device with RJ45 Connector
  • EtherWAN 3 Year Limited Warranty
