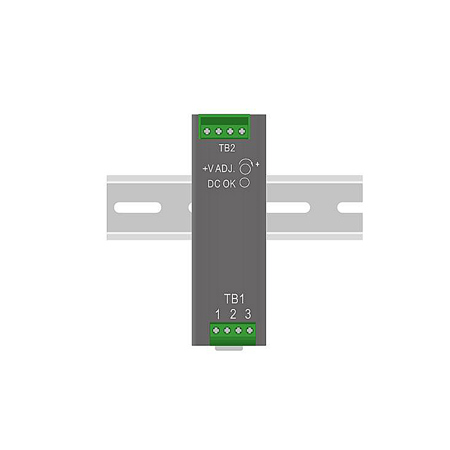

EtherWAN EPHX-48-240 240W Industrial DIN-Rail Power Supply

SKU: EWPHX4824 MFR: EPHX-48-240
$190.16
$201.75
Save: $11.59 (6%)
Earn VIP Reward Points

Key Features

  • Ensure reliable power for your industrial network switches with this 240W power supply.
  • This industrial DIN-Rail power supply offers a wide 100-240V AC input voltage range for flexibility.
  • With a high efficiency of up to 93%, this power supply helps reduce energy costs and waste.
  • Get robust performance in extreme conditions, from -13°F to 158°F, perfect for harsh environments.
  • This reliable power supply boasts an MTBF of over 1,000,000 hours, ensuring long-term operation.
  • Compact design (1.77 x 5.11 x 5.07") saves space while delivering 240W of stable power.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

EtherWAN EPHX-48-240 Specifications

  • Input voltage range

    100 V AC - 240 V AC (-15 % - +10 %)

  • Mains buffering

    typ. 20 ms (120 V AC)
    typ. 20 ms (230 V AC)

  • Nominal output voltage

    48 V DC

  • Setting range of the output voltage

    42 V DC - 56 V DC (>=48 V DC, constant capacity restricted<48 V DC, constant current restricted)

  • Nominal output current

    5A

  • Output power

    240W

  • Efficiency

    typ. 91.5 % (120 V AC)
    typ. 93 % (230 V AC)

  • Residual ripple

    typ. 50 mVPP (with nominal values)

  • MTBF (IEC 61709, SN 29500)

    > 1000000 h (25 Degree C)
    > 550000 h (40 Degree C)
    > 280000 h (55 Degree C)

  • Ambient temperature (operation)

    -13 Degree F to 158 Degree F (-25 Degree C - 70 Degree C) (> 55 Degree C Derating: 2.5 %/K)

  • Dimensions (W x H x D)

    1.77 x 5.11 x 5.07" (45 x 130 x 129mm)

  • Weight

    1.88 lbs (855g)

  • UPC Code

    4063151024840

About EtherWAN EPHX-48-240

Stable Performance under Difficult Environments
EtherWAN provides DC single output industrial DIN rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment. It uses the free air convection cooling system to prevent operating temperature from rising. Being able to operate under the temperature range from -20 to 70 degrees C (maximum), the DC single output industrial DIN rail power supply units can be placed in almost any difficult environments.

EtherWAN EPHX-48-240 Features

  • Tool-free connection via push-in connection technology
  • Safe operation, thanks to electrically and mechanically robust design
  • Especially slim design
  • Worldwide use, thanks to wide-range input
  • Reliable starting of heavy loads, thanks to dynamic boost
  • Simplified error diagnostics for remote signaling via DCOK signal contact

Key Features

  • Ensure reliable power for your industrial network switches with this 240W power supply.
  • This industrial DIN-Rail power supply offers a wide 100-240V AC input voltage range for flexibility.
  • With a high efficiency of up to 93%, this power supply helps reduce energy costs and waste.
  • Get robust performance in extreme conditions, from -13°F to 158°F, perfect for harsh environments.
  • This reliable power supply boasts an MTBF of over 1,000,000 hours, ensuring long-term operation.
  • Compact design (1.77 x 5.11 x 5.07") saves space while delivering 240W of stable power.

What's in the box:

  • EtherWAN EPHX-48-240 240W Industrial DIN-Rail Power Supply
  • EtherWAN 3 Year Limited Warranty
