EtherWAN EASYPOE4B NEMA Indoor/Outdoor Cabinet w/120W 4-Port Gigabit PoE Switch
EtherWAN - EasyPoE Box - No Logo
EtherWAN EASYPOE: Picture 1 thumbnail
See all EtherWAN items
17% Off

EtherWAN EASYPOE4B NEMA-Rated Indoor/Outdoor Cabinet with 120W 4-Port Gigabit Unmanaged PoE Switch

SKU: EWPOE4B MFR: EASYPOE4B
Be the first to review this itemAsk a Question
$700.00
$846.68
Save: $146.68 (17%)
OR
$117/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • This EtherWAN switch offers high speed port density, ensuring seamless network performance.
  • With PoE support, this switch simplifies installations, powering devices directly through Ethernet.
  • Enjoy easy network manageability, optimizing your network for peak efficiency and control.
  • Built for reliability, this EtherWAN switch provides consistent performance in harsh conditions.
  • Enhance network security with VLAN support, segmenting traffic for improved data protection.
  • NEMA-rated for indoor/outdoor use, this switch thrives in diverse, challenging environments.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$124.99

3 Year

$159.99

4 Year

$189.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EtherWAN EASYPOE Specifications

Interface

Interface

Jump to...

  • Ethernet Port

    10/100/1000BASE-T PoE: 5 or 8 ports

  • LED Indicators

    Per Unit: Power 1, Power 2, Power 3, Relay
    Per Port: Link/Activity, PoE

  • Alarm Contact

    1x Relay Output

Technology

Jump to...

  • Standards

    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX/100BASE-FX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x full duplex and flow control
    IEEE 802.3af/at/bt Power over Ethernet

  • Forward/Filtering Rate

    14,880pps for 10Mbps
    148,880pps for 100Mbps
    1,488,000pps for 1000Mbps

  • Processing Type

    Store-and-Forward
    Auto-Negotiation
    Half-duplex back-pressure full-duplex flow control
    Auto MDI/MDIX

  • Address Table Size

    4-Port Switch: 2K

Power

Jump to...

  • Input

    100-277VAC

  • PoE Power Budget

    4-Port Switch: 120W @ 167 Degree F (75 Degree C)

Environmental

Jump to...

  • Operating Temp.

    -40 to 167 Degree F (-40 to 75 Degree C)

  • Storage Temp.

    -40 to 185 Degree F (-40 to 85 Degree C)

  • Relative Humidity

    10% to 95% (non-condensing)

  • MTBF

    450,000 hours

Regulatory

Jump to...

  • ISO

    Manufactured in ISO-9001 facility

  • EMI

    FCC Part 15B Class A
    EN 55.32/35

  • EMS

    EN 61000-4-2 (ESD)
    EN 61000-4-4 (Burst)

  • Safety

    UL 60950-1

  • Vibration

    IEC 60068-2-6

  • Shock

    IEC 60068-2-27

Physical

Jump to...

  • Casing Material

    Polycarbonate (PC)

  • IP Rating

    IP67

  • NEMA Rating

    NEMA 4/4X

  • Impact Protection

    IK10

  • Installation Type

    Wall or Pole Mounting

  • Dimensions (W x D x H)

    11.75 x 5.22 x 13.81" (298 x 127 x 351mm)

  • Weight

    8.9 lbs (4.3kg)

Other

Jump to...

  • UPC Code

    850047425003

About EtherWAN EASYPOE

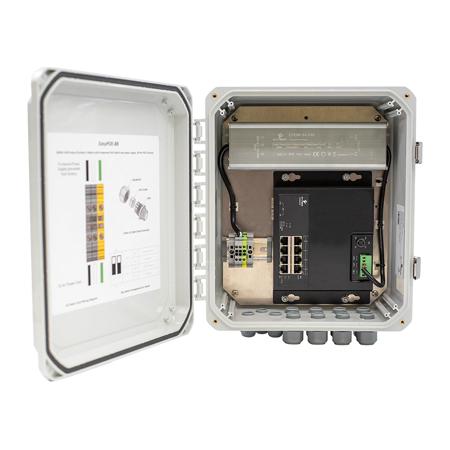

EtherWAN's EasyPoE Lite series is an integrated solution that combines a PoE switch, power supply, all in a single, secure, NEMA 4X rated cabinet enclosure. Equipped with either 4 gigabit PoE ports that provide a full 30W max PoE output per port (with a power budget of 120W for 4-ports), the EasyPoE Lite series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance and other networking applications.

NEMA-Rated Indoor/Outdoor Design for Non-Ventilated & Harsh Environments
• Wide operating temperature -40 to 75 Degree C (-40 to 167 Degree F)
• Fanless, integrated design
• Weather-resistant, anti-corrosion, and vandal-resistant design

Time/Cost Saving Features
• Integrated components ready out of the box
• Wall and pole mountable (pole mounting kit option available)
• Preinstalled bulkheads for cable connections

Replaceable Hardened Components
• The integrated PoE switch comes with 4 port at full 30W PoE per port
• Outdoor-rated, IP67 power supply
• Optional surge suppressor

EtherWAN EASYPOE Features

  • NEMA 4X Rated indoor/outdoor Design for non-ventilated and harsh environments
  • Replaceable Hardened Components
  • Integrated components are ready out of the box

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • This EtherWAN switch offers high speed port density, ensuring seamless network performance.
  • With PoE support, this switch simplifies installations, powering devices directly through Ethernet.
  • Enjoy easy network manageability, optimizing your network for peak efficiency and control.
  • Built for reliability, this EtherWAN switch provides consistent performance in harsh conditions.
  • Enhance network security with VLAN support, segmenting traffic for improved data protection.
  • NEMA-rated for indoor/outdoor use, this switch thrives in diverse, challenging environments.

What's in the box:

  • EtherWAN EASYPOE4B NEMA-Rated Indoor/Outdoor Cabinet
  • Wall Mounting Adapter
  • Quick Start Guide
  • EtherWAN Lifetime Limited Warranty
