EtherWAN EASYPOEBOX2C NEMA-Rated Enclosure with 165W 2-Port Gigabit PoE Switch
EtherWAN - EasyPoE Box - No Logo

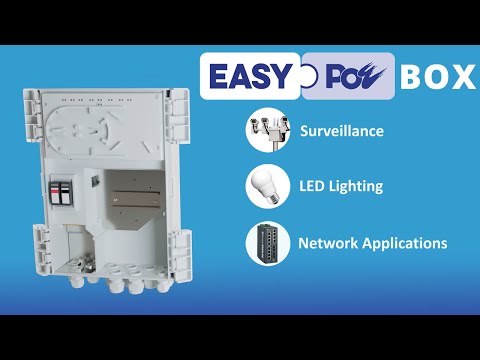

EasyPoE Box - All-in-One Surveillance Networking Solution
EtherWAN EASYPOEBOX: Picture 1 thumbnail
See all EtherWAN items

EtherWAN EASYPOEBOX2C NEMA-Rated Indoor/Outdoor Enclosure with 165W 2-Port Gigabit Managed PoE Switch

SKU: EWPOEBOX2C MFR: EASYPOEBOX2C
Be the first to review this itemAsk a Question
$1,653.60
$1,754.30
Save: $100.7 (6%)
OR
$138/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • This EtherWAN PoE switch enclosure is NEMA-rated for reliable outdoor networking.
  • Enjoy high-speed Gigabit Ethernet with this managed switch, perfect for demanding networks.
  • Simplify installations using PoE support, delivering power and data over one network cable.
  • Manage your network effectively with Layer 3 features for advanced traffic control options.
  • Ensure network uptime with a reliable switch designed for continuous operation, minimizing downtime.
  • Use in harsh environments; this enclosure protects your managed switch from elements and impact.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EtherWAN EASYPOEBOX Specifications

Software

Software

Jump to...

  • Interface

    CLI and Web Browser
    SNMP v2/v3

  • Management

    Firmware upgrade
    Configuration backup
    DHCP Client
    RMON (Remote Monitoring)
    Port Mirroring
    SNTP (Simple Network Time Protocol) synchronization
    LLDP (Link Layer Discovery Protocol)
    IPv4/IPv6

  • Security

    MAC address filtering
    Enable/Disable port
    System logging
    IEEE 802.1x LAN Access Control
    Remote authentication through RADIUS
    SSH for CLI and Telnet security
    SSL and HTTPS for Web security
    Multi-user login and privileged access management
    Port security

  • Layer 2 Features

    Auto-negotiation for port speed and duplex mode:
    Flow Control
    IEEE 802.3x full duplex mode
    Back-pressure half duplex mode

    Redundant Protocol:
    IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

    VLANs:
    IEEE 802.1Q Tag VLANs (Up to 32 VLANs)

Interface

Jump to...

  • Ethernet Port

    10/100/1000BASE-T PoE: 2 or 4 ports
    10/100/1000BASE-T: 0 or 2 ports
    100/1000BASE SFP: 0 or 2 ports

  • LED Indicators

    Per Unit: Power (Green), Aux Power (Green)
    Per Port: Link/Activity (Green: 10/100M, Orange: 1000M; On: connection established, Flashing: data transmission in progress)
    Per Port: PoE (Green: Auto Mode, Orange: Force Mode)

  • Mode Button

    Exiting without changes
    Resetting to the factory settings
    Operating with a static IP address
    Setting DHCP mode
    Setting BootP
    Setting unmanaged mode

Technology

Jump to...

  • Standards

    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX/100BASE-FX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x full duplex and flow control
    IEEE 802.1p QoS
    IEEE 802.1Q Tag VLANS
    IEEE 802.1w RSTP
    IEEE 802.1ab LLDP
    IEEE 802.3af/at/bt Power over Ethernet
    IEEE 802.1x Port-based Network Access Control

  • Forward/Filtering Rate

    14,880pps for 10Mbps
    148,880pps for 100Mbps
    1,488,000pps for 1000Mbps

  • Processing Type

    Store-and-Forward
    Auto-Negotiation
    Half-duplex back-pressure full-duplex flow control
    Auto MDI/MDIX

  • Address Table Size

    8K

Power

Jump to...

  • Input

    100-240VAC, -15% - +10% (single-phase)

  • Output

    24VDC, 300mA (typical)

  • PoE Power Output

    Ports 1-3: Up to 90W/port

  • PoE Power Budget

    165W (155W if power output used)

Environmental

Jump to...

  • Operating Temp.

    -40 to 167 Degree F (-40 to 75 Degree C)

  • Storage Temp.

    -40 to 185 Degree F (-40 to 85 Degree C)

  • Relative Humidity

    5% to 95% (non-condensing)

  • MTBF

    805,920 hours

Regulatory

Jump to...

  • ISO

    Manufactured in ISO-9001 facility

  • EMI

    FCC Part 15B Class A
    VCCI Class A
    ICES-003
    EN 61000-6-4

  • EMS

    EN 61000-6-2
    EN 61000-6-3
    EN 61000-4-2 (ESD)
    EN 61000-4-3 (Radiated RFI)
    EN 61000-4-4 (Burst)
    EN 61000-4-5 (Surge)
    EN 61000-4-6 (Induced RFI)

  • Safety

    UL 61010

  • Vibration

    IEC 60068-2-6

  • Shock

    IEC 60068-2-27

Physical

Jump to...

  • Casing Material

    Polycarbonate (PC)

  • IP Rating

    IP65

  • NEMA Rating

    NEMA 4/4X

  • Impact Protection

    IK10

  • Installation Type

    Wall or Pole Mounting

  • Dimensions (W x D x H)

    11.2 x 4.8 x 14.3" (284 x 121 x 364mm)

  • Weight

    9.5 lbs (4.3kg)

Other

Jump to...

  • UPC Code

    847653005224

About EtherWAN EASYPOEBOX

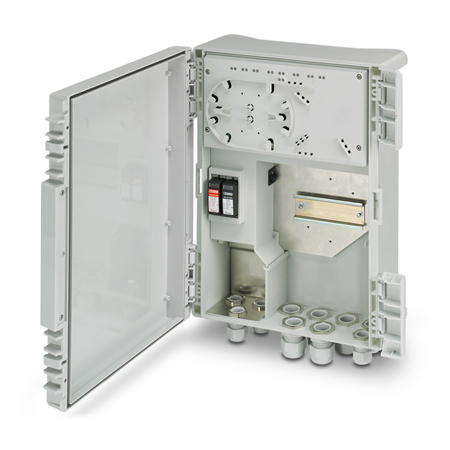

EtherWAN's EasyPoE Box Series is an integrated solution that combines a managed PoE switch, splice tray, power supply, and a DIN-rail for accessories, all in a single, secure, NEMA-rated cabinet enclosure. Equipped with 2 gigabit PoE ports that provide from 15W up to 90W output per port using the latest IEEE 802.3bt technology and 2 uplink ports, the smart camera box series provides the power, time-saving design, and convenience to support a wide variety of applications including surveillance, LED lighting, and other networking applications.

NEMA-Rated Indoor/Outdoor Design for Non-Ventilated & Harsh Environments
• Wide operating temperature -40 to 70 Degree C (-40 to 158 Degree F)
• Fanless design
• Weather-resistant, anti-corrosion, and vandal-resistant design

Time/Cost Saving Features
• Integrated splicing tray for safe fiber connection storage
• Adapter for wall and pole mounting

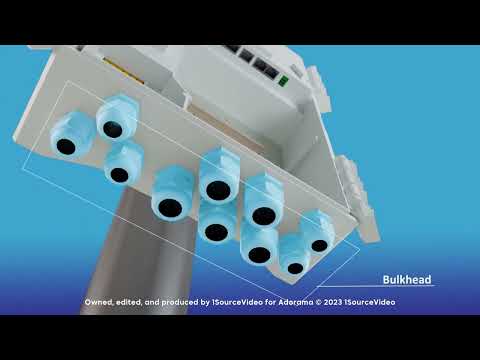

• Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories

Smart PoE and Power
• Futureproof with 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
• PoE watchdog monitors status of connected PoE devices
• Built-in power supply and surge protection with auxiliary DC power output

EtherWAN EASYPOEBOX Features

  • NEMA 4X Rated indoor/outdoor Design for non-ventilated and harsh environments
  • Futureproof with 90W/port and backward compatibility with all PoE protocols (60W/30W/15W)
  • Integrated splicing tray for safe fiber connection storage
  • Preinstalled bulkheads for cable connections and DIN-rail for additional devices/accessories

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • This EtherWAN PoE switch enclosure is NEMA-rated for reliable outdoor networking.
  • Enjoy high-speed Gigabit Ethernet with this managed switch, perfect for demanding networks.
  • Simplify installations using PoE support, delivering power and data over one network cable.
  • Manage your network effectively with Layer 3 features for advanced traffic control options.
  • Ensure network uptime with a reliable switch designed for continuous operation, minimizing downtime.
  • Use in harsh environments; this enclosure protects your managed switch from elements and impact.

What's in the box:

  • EtherWAN EASYPOEBOX2C NEMA-Rated Indoor/Outdoor Enclosure
  • Mounting Adapter
  • 3x M20 Filler Plugs and 5x M25 Plugs
  • Quick Start Guide
  • EtherWAN Lifetime Limited Warranty
