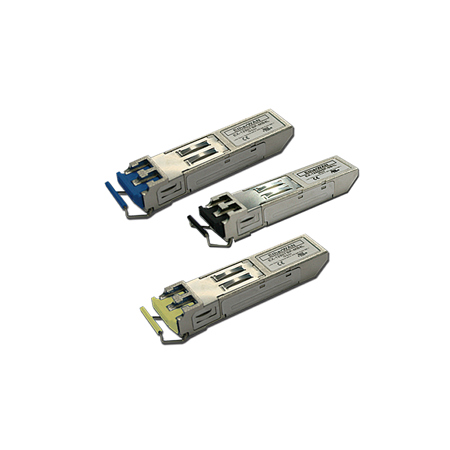

EtherWAN 10GBASE 20km 1310nm Single-Mode Hardened SFP+ Duplex LC Fiber Optical Transceiver Module, DDM

SKU: EWSFPTIS2M MFR: SFPTIS20M
Earn VIP Reward Points

Key Features

  • Achieve reliable 10GBASE connectivity up to 20km with this hardened SFP+ transceiver module.
  • Ensure seamless network performance with a 1310nm wavelength for single-mode fiber optic cables.
  • This EtherWAN SFP+ module supports Duplex LC connectors for easy and secure connections.
  • Operates in harsh environments with a wide temperature range of -40 to 85 degrees Celsius.
  • Compliant with MSA standards, this SFP+ module ensures compatibility with your networking equipment.
  • Utilize this high-performance SFP+ transceiver for robust data transmission in demanding applications.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

EtherWAN SFP Transceiver Specifications

  • Regulatory Compliance

    Compliant with Multi-Sourcing Agreement (MSA) Small Form Factor Pluggable (SFP)
    Eye Safety: Compliant with Class 1 laser safety requirements EN 60825-1
    Environmental: RoHS compliant, lead-free
    EMC: FCC part 15, CENELEC EN 55022

  • Power Supply Voltage

    Single +3.3V

  • Operating Temperature

    -40 to 185 Degree F (-40 to 85 Degree C)

  • Distance

    20km

  • Cable Type

    9/125microm, SM

  • Connector Type

    Duplex LC

  • Wavelength

    1310nm

  • Link Budget

    9.4dBm

  • Optical Output Power

    -5 to +1dBm

  • Sensitivity

    -14.4dBm

  • UPC Code

    847653005637

About EtherWAN SFP Transceiver

This is a Single Mode fiber transceiver with a 20km distance, an operating temperature of -40 to 85 degrees Celsius, and a wavelength of 1310nm.

The small form-factor pluggable (SFP) is a compact, hot-pluggable transceiver used for both telecommunication and data communications applications. EtherWAN products that support SFP Modules are fully tested using EtherWAN SFP Modules for the highest level of reliability and compatibility.

EtherWAN SFP Transceiver Features

  • All SFPs have been tested with the best operating performance on EtherWAN switches
  • The characteristics are performed in accordance with Telcordia Specification GR-468-CORE
  • Single +3.3V Power Supply
  • RoHS Compliant and Lead-free
  • AC/AC Differential Electrical Interface
  • Eye Safety Designed to meet Laser Class 1 compliant with EN 60825-1
  • Compliant with Multi-Source Agreement (MSA), Small Form Factor Pluggable (SFP)
  • EMC requirement meets FCC

Key Features

  • Achieve reliable 10GBASE connectivity up to 20km with this hardened SFP+ transceiver module.
  • Ensure seamless network performance with a 1310nm wavelength for single-mode fiber optic cables.
  • This EtherWAN SFP+ module supports Duplex LC connectors for easy and secure connections.
  • Operates in harsh environments with a wide temperature range of -40 to 85 degrees Celsius.
  • Compliant with MSA standards, this SFP+ module ensures compatibility with your networking equipment.
  • Utilize this high-performance SFP+ transceiver for robust data transmission in demanding applications.

What's in the box:

  • EtherWAN 10GBASE 20km 1310nm Single-Mode Hardened SFP+ Duplex LC Fiber Optical Transceiver Module (DDM)
  • EtherWAN 3 Year Limited Warranty
