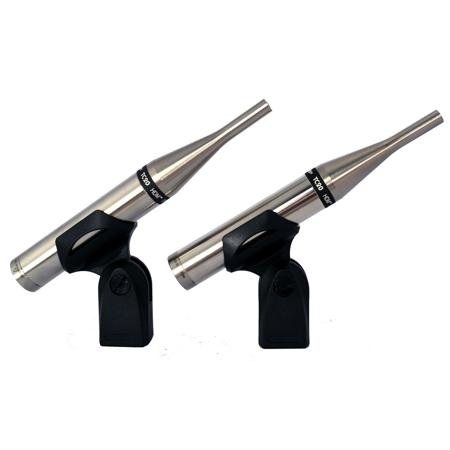

Earthworks TC20 Matched Pair Omnidirectional Microphone for Loud Sources
See all Earthworks items

Earthworks TC20 Matched Pair Omnidirectional Microphone for Loud Sources, 9Hz-20kHz Frequency Response, 65 Ohms Balanced Output Impedance

SKU: EWTC20MP

This item is no longer available.

Recommended Alternatives

Earthworks ETHOS: Picture 1 regular
Earthworks ETHOS XLR Broadcasting Microphone, Stainless Steel
$399.00
Earthworks ICON PRO: Picture 1 regular
Earthworks ICON PRO XLR Streaming Microphone, Stainless Steel
$499.00
Earthworks M23: Picture 1 regular
Earthworks M23 Omnidirectional High Definition Measurement Microphone
$499.00
Earthworks : Picture 1 regular

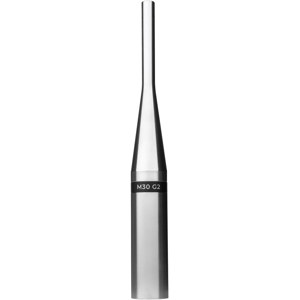

Earthworks Omnidirectional Measurement Microphone, 5Hz-30kHz Frequency Response
$699.00$629.10
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Earthworks TC20 Specifications

  • Frequency Response

    9Hz to 20kHz

  • Polar Pattern

    Omnidirectional

  • Sensitivity

    8mV/Pa (-42dBV/Pa)

  • Power Requirements

    24-48V Phantom, 10mA

  • Max Acoustic Input

    150dB SPL

  • Output

    XLR (pin 2+)

  • Output Impedance

    65 Ohms, balanced (50 Ohm ea. pin 2 & 3)

  • Min Output Load

    600 Ohms between pins 2 & 3

  • Noise

    26dB SPL equivalent (A weighted)

  • Dimensions (L x D)

    6.5 x 0.86" / 16.51 x 2.18cm

  • Weight

    0.35lbs / 0.15kg

  • UPC Code

    827517102009

11 Accessories for Earthworks TC20 Matched Pair Omnidirectional Microphone for Loud Sources, 9Hz-20kHz Frequency Response, 65 Ohms Balanced Output Impedance

  • All Accessories (11)
  • Cables & Adapters (11)
H&A Value Series XLR M to F Professional Microphone Cable - 6'
H&A Value Series XLR M to F Professional Microphone Cable - 6'
$6.49
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 10'
H&A Value Series XLR M to F Professional Microphone Cable - 10'
$6.94
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 15'
H&A Value Series XLR M to F Professional Microphone Cable - 15'
$8.95
Recommended
H&A Value Series XLR M to F Professional Microphone Cable - 25'
H&A Value Series XLR M to F Professional Microphone Cable - 25'
$14.95
H&A Value Series XLR M to F Professional Microphone Cable - 50'
H&A Value Series XLR M to F Professional Microphone Cable - 50'
$15.95
H&A Value Series XLR M to F Professional Microphone Cable - 100'
H&A Value Series XLR M to F Professional Microphone Cable - 100'
$23.95
H&A Value Series XLR M to F Professional Microphone Cable - 1.5' RA
H&A Value Series XLR M to F Professional Microphone Cable - 1.5' RA
$6.49
H&A Value Series XLR M to F Professional Microphone Cable - 25' RA
H&A Value Series XLR M to F Professional Microphone Cable - 25' RA
$12.95
H&A Elite Pro 25' XLR M to Angled XLR F Microphone Cable with Rean Connectors
H&A Elite Pro 25' XLR M to Angled XLR F Microphone Cable with Rean Connectors
$24.95
H&A Platinum Pro Quad 15' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Platinum Pro Quad 15' XLR M to XLR F Microphone Cable with Rean Connectors
$24.95
H&A Platinum Pro Quad 25' XLR M to XLR F Microphone Cable with Rean Connectors
H&A Platinum Pro Quad 25' XLR M to XLR F Microphone Cable with Rean Connectors
$28.95

About Earthworks TC20

The Earthworks TC20 Matched Pair Omnidirectional Microphone is designed for recording louder sources such as drums, percussion, amplified instruments and loud sound effects. This Microphone allow recording of louder acoustic sources without overloading the preamplifier. It is often the choice for recording drum overheads, close miked or amplified instruments and sound effects.

Earthworks TC20 Features

  • Ideal for a wide variety of instruments and vocals, including acoustic guitar, string instruments and piano
  • For live sound it can be used for close miking instrument amps, drums or brass
  • Omnidirectional polar pattern
  • Accurate and uncolored
  • Effortlessly handle high sound pressure levels up to 150dB SPL while simultaneously capturing subtle details
  • Fast impulse response and diaphragm settling time
  • Exceptional flat frequency response and are time coherent, so they sound natural and uncolored
  • Requires 48V Phantom Power

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Accurate and uncolored
  • Fast impulse response and diaphragm settling time
  • Requires 48V Phantom Power

What's in the box:

  • Earthworks TC20 Matched Pair Omnidirectional Microphone
  • Mic Clips
  • Case
  • Earthworks 15 Year Parts and Labor Warranty
