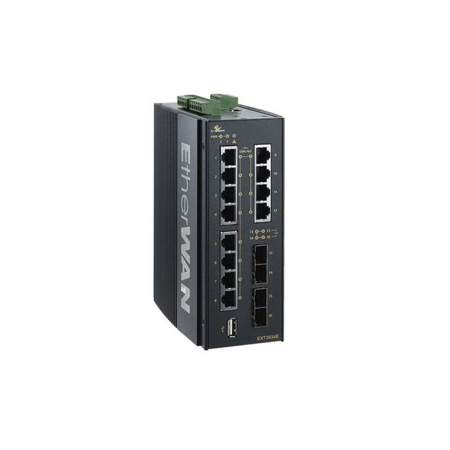

EtherWAN EX73934E-0VB 12-Port Gigabit Managed Ethernet Switch with 4-Port SFP
EX73900E _ Hardened Managed Gigabit Switch
EtherWAN EX73934E-0VB: Picture 1 thumbnail
See all EtherWAN items

EtherWAN EX73934E-0VB 12-Port Gigabit Hardened Managed Ethernet Switch with 4-Port SFP

SKU: EWX73934EVB MFR: EX73934E-0VB
Be the first to review this itemAsk a Question
$1,860.30
$1,973.59
Save: $113.29 (6%)
OR
$156/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience seamless connectivity with this 12-Port Gigabit Ethernet Switch, ensuring fast data transfer.
  • This hardened managed switch features 4 SFP ports, perfect for expanding your network with fiber connections.
  • Enjoy robust network security with advanced features like ACL and RADIUS authentication on this EtherWAN switch.
  • With a wide operating temperature range, this switch is ideal for industrial environments needing reliable networking.
  • Simplify network management using the web GUI, CLI, and SNMP for efficient monitoring and configuration.
  • Benefit from high switching capacity, supporting demanding applications with ease and optimal performance.
See More Product Details
Special Order?Estimated to Ship: 08/10/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

EtherWAN EX73934E-0VB Specifications

Software

Software

Jump to...

  • Interface

    CLI, Telnet, Web GUI

  • Management

    Firmware upgrade
    Configuration backup
    DHCP Server/Client
    RMON (Remote Monitoring)
    Port Mirroring
    NTP (Network Time Protocol) synchronization
    LLDP (Link Layer Discovery Protocol)
    IPv4/IPv6
    SNMP v1/v2c/v3
    Modbus TCP

  • Security

    MAC Address filtering
    Enable/Disable port
    Storm control
    System logging
    IEEE 802.1x LAN Access control
    Remote authentication through RADIUS and TACACS+
    Complex password support
    Multi-user login and privileged access management
    SSH for CLI and Telnet security
    SSL and HTTPS for web security
    ACL (Access Control List, up to 4096 entries)

  • Quality of Service (QoS)

    Priority Queues: 8 queues per port
    Traffic classification based on IEEE 802.1p CoS (Cost of Service), DSCP (Differentiated Services Code Point), WRR (Weighted Round Robin), and strict mode
    Rate Limiting (Ingress/Egress)

  • Layer 2 Features

    Auto-negotiation for port speed and duplex
    Flow Control
    IEEE 802.3x full duplex mode
    Back-pressure half duplex mode

    Redundant Protocols
    IEEE 802.1D STP
    IEEE 802.1w RSTP
    IEEE 802.1s MSTP
    EtherWAN's Alpha-Ring network fault recovery

    VLANs
    IEEE 802.1Q Tag VLANs
    GVRP
    GMRP

    Link Aggregation
    Static Trunk (4 groups)
    IEEE 802.3ad LACP

    IGMP Snooping v1/v2/v3

  • Layer 3 Features

    IP Packet Routing
    Maximum number of routes in hardware: 64 entries
    Static Routing
    RIP v1/v2
    OSPF v2

    Routing Redundancy
    VRRP

  • Software Properties and Performance

    Switching Fabric: 32Gbps
    Forwarding Rate: 23.5Mpps
    Total VLAN Entries: 256 (4096 VID)
    Jumbo Frame Size: 9KB
    MAC Table Size: 16K
    Packet Buffer Memory: 12M bits

Interface

Jump to...

  • Ethernet

    12x 10/100/1000BASE-T(X)
    4x 100/1000BASE SFP

  • Console

    1x RJ45

  • Config Backup

    1x USB (Type A Connector)

  • Digital Input

    2x Digital Input
    Wet Contact:
    0-3V for State 0
    13-30V for State 1
    max input current: 8mA

    Dry Contact
    Logic Level 1-Close to GND
    Logic Level 0-Open

  • Alarm Contact

    2x Relay output, current capacity
    0.6A/30VDC

  • LED Indicators

    Per Unit: Power 1, Power 2, Alarm
    Per Port: Link/Activity

Technology

Jump to...

  • Standards

    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX/100BASE-FX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3ad link aggregation control
    IEEE 802.3z 1000BASE-SX/1000BASE-LX
    IEEE 802.3x full duplex and flow control
    IEEE 802.1D STP
    IEEE 802.1p QoS
    IEEE 802.1Q Tag VLANs
    IEEE 802.1s MSTP
    IEEE 802.1w RSTP
    IEEE 802.1x PNAC
    IEEE 802.1ab LLDP
    IEEE 802.3az EEE
    IEEE 1588v2 PTP

  • Forward/Filtering Rate

    14,880pps for 10Mbps
    148,810pps for 100Mbps
    1,488,100pps for 1000Mbps

  • Processing Type

    Store-and-forward
    Auto-negotiation
    Half-duplex back-pressure and fullduplex flow control
    Auto MDI/MDIX

  • System Memory

    2Gb DDR3 SDRAM

  • Flash Storage

    1Gb

Power

Jump to...

  • Input

    12-48VDC Redundant (Terminal block)

  • Power Consumption

    20W Max

  • Protection

    Reverse Polarity Protection
    Overload Current Protection

Environmental

Jump to...

  • Operating Temp.

    -40 to 167 Degree F (-40 to 75 Degree C)

  • Storage Temp.

    -49 to 185 Degree F (-45 to 85 Degree C)

  • Relative Humidity

    5% to 95% (non-condensing)

  • MTBF

    2,046,665 hours

Regulatory

Jump to...

  • ISO

    Manufactured in ISO-9001
    facility

  • EMI

    FCC Part 15B Class A
    VCCI Class A
    EN 61000-6-4
    EN 61000-3-2
    EN 61000-3-3

  • EMS

    EN 61000-6-2
    EN 61000-4-2 (ESD)
    EN 61000-4-3 (Radiated RFI)
    EN 61000-4-4 (Burst)
    EN 61000-4-5 (Surge)
    EN 61000-4-6 (Induced RFI)
    EN 61000-4-8 (Magnetic field)

  • Safety

    UL 61010

  • Traffic

    NEMA TS2

  • Rail

    EN 50121-4

  • Power Substation

    IEC 61850-3/IEEE 1613

  • Vibration

    IEC 60068-2-6

  • Shock

    IEC 60068-2-27

  • Free Fall

    FED STD 101C Method 5007.1

Physical

Jump to...

  • Casing Material

    Aluminum

  • IP Rating

    IP40

  • Installation Type

    DIN-rail mounting

  • Dimensions (W x D x H)

    2.8 x 5.5 x 6.7" (72 x 140 x 170mm)

  • Weight

    3.08 lbs (1.4kg)

Other

Jump to...

  • UPC Code

    847653005460

About EtherWAN EX73934E-0VB

EtherWAN's EX73900E series is a hardened DIN-rail mounted managed Ethernet switch platform. Equipped with 12 gigabit Ethernet and 4 dual-rate gigabit SFP ports, and the IEEE1588v2 Precision Time Protocol (PTP) that uses network packets and time stamps for network time synchronization. The EX73900E series provides flexibility, speed, and reliability to support networks for urban infrastructure, transportation, security, power substations, and other areas where connectivity is crucial.

High Bandwidth and Versatility
• 12x 10/100/1000BASE-T(X) ports for High bandwidth connections
• Up to 4x Dual-rate 100/1000BASE SFP uplink ports for fiber connections
• Full capacity switching running at full duplex

Hardened-Grade for Non-Ventilated & Harsh Environments
• Wide operating temperature range -40 to 75 Degree C (-40 to 167 Degree F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance

Lite Layer 3 Functionality
• Static routing, RIP v1/v2, and OSPF support
• Redundancy with VRRP
• Reduces amount of broadcast traffic

Compliance
• IEC 61850-3/IEEE 1613 certified for power substations
• NEMA TS2 rated
• UL certified for safety

Management/Security Features
• Port control
• Dying gasp feature provides SNMP trap upon power off
• Configure and monitor with eVue and eLite

EtherWAN EX73934E-0VB Features

  • IP40 Protection Level
  • Integrated with 2 DIs (Digital Input) and 2 Relay Output
  • Supports static routes, RIP v1/v2, and VRRP
  • Dual Rate gigabit SFP ports

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience seamless connectivity with this 12-Port Gigabit Ethernet Switch, ensuring fast data transfer.
  • This hardened managed switch features 4 SFP ports, perfect for expanding your network with fiber connections.
  • Enjoy robust network security with advanced features like ACL and RADIUS authentication on this EtherWAN switch.
  • With a wide operating temperature range, this switch is ideal for industrial environments needing reliable networking.
  • Simplify network management using the web GUI, CLI, and SNMP for efficient monitoring and configuration.
  • Benefit from high switching capacity, supporting demanding applications with ease and optimal performance.

What's in the box:

  • EtherWAN EX73934E-0VB 12-Port Gigabit Hardened Managed Ethernet Switch with 4-Port SFP
  • Console Cable
  • Mounting Brackets
  • Screws
  • User Manual
  • EtherWAN Lifetime Limited Warranty
