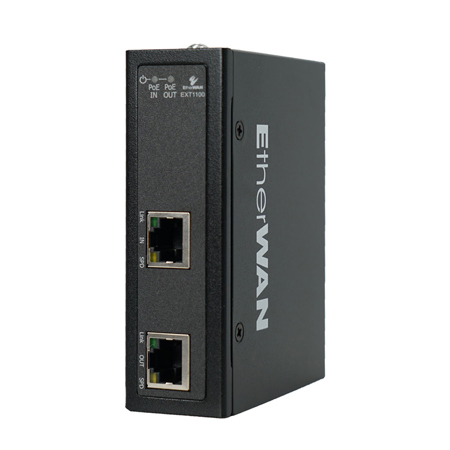

EtherWAN EXT1100 Gigabit Hardened PoE Extender

SKU: EWXT11 MFR: EXT1100
Earn VIP Reward Points

Key Features

  • Extend your network's reach with this Gigabit PoE Extender, perfect for remote IP cameras.
  • Experience reliable connectivity in harsh environments with its hardened, industrial design.
  • Simplify installations; this PoE extender supports both DIN-rail and wall mounting options.
  • High performance: Enjoy a 4Gbps switching fabric and 9KB jumbo frame size for data transfer.
  • Wide operating temp: -40° to 75°C, ensures consistent performance in extreme conditions.
  • This durable extender supports IEEE 802.3af/at PoE/PoE+ for versatile power solutions.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$29.99

2 Year

$53.99

3 Year

$69.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

EtherWAN EXT1100 Specifications

Interface

Interface

Jump to...
  • Interface

    LED Indicators

Technology

Jump to...
  • Standards

    IEEE 802.3 10BASE-T
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3x Flow Control and Back Pressure
    IEEE 802.3af PoE
    IEEE 802.3at PoE+
    IEEE 802.3ab 1000BASE-T

  • Forward Filtering Rate

    14,800pps for 10Mbps
    148,810pps for 100Mbps
    1,488,100pps for 1000Mbps

  • Processing Type

    Store-and-forward
    Auto-negotiation
    Half-duplex back-pressure and full-duplex flow control
    Auto MDI/MDIX

Switch Properties and Performance

Jump to...
  • Switching Fabric

    4Gbps

  • Jumbo Frame Size

    9KB

  • MAC Table Size

    2K

  • Packet Buffer Memory

    1Mb

  • PoE Power Input

    15W/30W/60W/95W

  • Power Consumption

    2.7W without PoE load

  • PoE Power Output

    15W/30W/60W

Environment

Jump to...
  • Operating Temperature

    -40 to 167 Degree F (-40 to 75 Degree C)

  • Storage Temperature

    -40 to 185 Degree F (-40 to 85 Degree C)

  • Ambient Relative Humidity

    5% to 95% (non-condensing)

  • MTBF

    >500,000 hours @ 50 Degree C

Regulatory Approvals

Jump to...
  • ISO

    Manufactured in an ISO 9001 facility

  • Safety

    UL 60950-1
    IEC 60950-1

  • EMI

    FCC Part 15B Class A
    EN 55032
    EN 55024

  • EMS

    EN61000-4-2 (ESD Standards)
    EN61000-4-2 (Burst Standards)
    EN61000-4-2 (Surge Standards)

  • Environmental Test Compliance

    IEC 60068-2-6 Fc (Vibration)
    IEC 60068-2-27 Ea (Shock)
    IEC 60068-2-32 Ed (Free fall w/package)

Physical

Jump to...
  • Casing

    Aluminum case

  • IP Rating

    IP30

  • Installation

    DIN-rail or wall mount

  • Dimensions (W x D x H)

    1.26 x 3.21 x 4.07" (32 x 81.5 x 103.5mm)

  • Weight

    4.93 oz (140g)

  • UPC Code

    847653005750

About EtherWAN EXT1100

EtherWAN's EXT1100 is a compact hardened DIN-rail mounted PoE Extender. Requiring no external power, the EXT1100 provides a simple and cost-effective method of extending a PoE connection beyond the standard 100 meter limit for copper Ethernet cabling.

PoE (Power over Ethernet)
• Provides PoE extension functionality for ethernet applications that require distances longer than 100m (328ft)
• Up to 60W output for various security applications such as PTZ cameras
• Can be daisy-chained up to 4 units

Hardened-Grade for Non-Ventilated & Harsh Environments
• Wide operating temperature range -40 to 75 Degree C (-40 to 167 Degree F)
• Fanless operation
• High impact, thermal shock, and electrical noise resistance

EtherWAN EXT1100 Features

  • Provides PoE extension functionality for ethernet applications that require distances longer than 328' (100m)
  • Up to 60W output for various security applications such as PTZ cameras
  • Can be daisy-chained up to 4 units

Key Features

  • Extend your network's reach with this Gigabit PoE Extender, perfect for remote IP cameras.
  • Experience reliable connectivity in harsh environments with its hardened, industrial design.
  • Simplify installations; this PoE extender supports both DIN-rail and wall mounting options.
  • High performance: Enjoy a 4Gbps switching fabric and 9KB jumbo frame size for data transfer.
  • Wide operating temp: -40° to 75°C, ensures consistent performance in extreme conditions.
  • This durable extender supports IEEE 802.3af/at PoE/PoE+ for versatile power solutions.

What's in the box:

  • EtherWAN EXT1100 Gigabit Hardened PoE Extender
  • Mounting Brackets & Screws
  • User Manual
  • EtherWAN Lifetime Limited Warranty
