Extech EX310 9 Function Manual Ranging Mini MultiMeter with Voltage Detector
See all Extech items

Extech EX310 9 Function Manual Ranging Mini MultiMeter with Non-Contact Voltage Detector

SKU: EXEX310

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Extech EX310 Specifications

  • Diode Test

    Bias voltage: 2.3VDC

  • Continuity Check

    Audible signal will sound if the resistance is less than 100Ohms

  • Input Impedance

    1MOhms (VDC & VAC)

  • AC Bandwidth

    50 / 60Hz

  • Polarity

    Automatic (no indication for positive); Minus (-) sign for negative

  • Measurement Rate

    2 times per second, nominal

  • Battery

    9V battery

  • Fuses

    mA range; 200mA/250V fast blow
    A range; 10A/250V fast blow, ceramic

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Operating Humidity

    Max 70% up to 31 deg. C (88 deg. F) decreasing linearly to 50% at 50 deg. C (122 deg. F)

  • Storage Humidity

    < 80% RH

  • Operating Altitude

    2000m (6561.60')

  • Display Counts

    2000 counts

  • Basic Accuracy

    0.50%

  • NCV Detector

    100 to 600V AC

  • DC Voltage

    0.1mV to 600V

  • AC Voltage

    0.1V to 600V

  • DC/AC Current

    0.1mA to 10A

  • Resistance

    0.1Ohms to 2000kOhms

  • Diode/Continuity

    Yes

  • Category Rating

    CAT III-600V, CAT II-1000V

  • Dimensions

    147 x 76 x 42mm (5.79 x 2.99 x 1.65")

  • Weight

    260g (9.17oz)

  • UPC Code

    793950393109

About Extech EX310

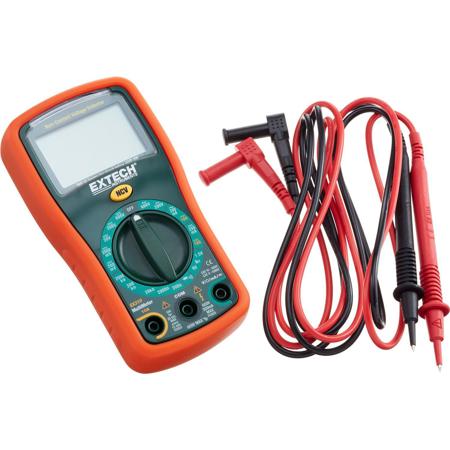

The EX310 is a compact manual ranging multi meter which features an extra-large 2000 count display and built-in non-contact AC voltage detector (NCV). AC/DC Voltage & Current, Resistance, Diode/Continuity measurements. Includes battery test function (1.5 Volt and 9 Volt). Rubber holster protects the meter. UL listed Cat III - 600 Volt safety rating. Includes test leads, 9 Volt battery and tilt stand.

Extech EX310 Features

  • Manual ranging DMM with 9 functions and 0.5% basic accuracy
  • AC/DC Voltage & Current, Resistance, Diode/Continuity
  • Built-in non-contact AC voltage detector (NCV) with red LED indicator and audible beeper
  • Battery test function for 1.5V and 9V batteries
  • Large-digit 2,000 count LCD display
  • 10A max Current
  • Low battery indicator
  • Complete with test leads, tilt stand, protective holster and 9V battery

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Extech EX310 9 Function Manual Ranging Mini MultiMeter with Non-Contact Voltage Detector
  • Protective Holster
  • Test Leads
  • 9 Volt Battery
  • Tilt Stand
  • Extech 1 Year Limited Warranty
