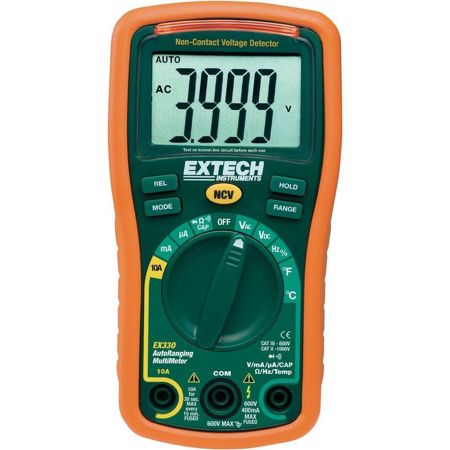

Extech EX330 12 Function Auto Ranging Mini MultiMeter with Voltage Detector
See all Extech items

Extech EX330 12 Function Auto Ranging Mini MultiMeter with Non-Contact Voltage Detector

SKU: EXEX330

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?DOUGLAS B : The non contact AC ability was the deciding factor

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Extech EX330 Specifications

  • Diode Test

    Test current: 0.3mA max., Open circuit voltage: 1.5V DC typ.

  • Continuity Check

    Audible signal will sound if the resistance is less than 35Ohms

  • Temperature Sensor

    Requires type K thermocouple

  • Input Impedance

    10MOhms (VDC & VAC)

  • AC Bandwidth

    50 / 60Hz

  • Display

    4000 count (0 to 3999 digits) LCD

  • Overrange indication

    For all functions "OL" is displayed (Note: For ACV measurements only, an audible beep will also sound)

  • Auto Power Off

    After 15 minutes (approximately) of inactivity

  • Polarity

    No indication for positive; Minus (-) sign for negative

  • Measurement Rate

    2 times per second, nominal

  • Battery

    2x 1.5V 'AAA' batteries

  • Fuses

    mA, MuA ranges: 500mA/250V fast blow
    'A' range: 10A/250V fast blow

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Operating Humidity

    <70% RH

  • Storage Humidity

    <80% RH

  • Operating Altitude

    2000m (6561.60' (Max.)

  • Display Counts

    4000 counts

  • Basic Accuracy

    0.50%

  • NCV Detector

    100 to 600V AC

  • DC Voltage

    0.1mV to 600V

  • AC Voltage

    0.1mV to 600V

  • DC/AC Current

    0.1MuA to 10A

  • Resistance

    0.1Ohms to 40MOhms

  • Capacitance

    0.001nF to 200MuF

  • Frequency

    0.001Hz to 10MHz

  • Temperature

    -4 to 1382 deg. F (-20 to 750 deg. C)

  • Duty Cycle

    0.1 to 99.9%

  • Diode/Continuity

    Yes

  • Category Rating

    CAT III-600V, CAT II-1000V

  • Dimensions

    147 x 76 x 42mm (5.79 x 2.99 x 1.65") (including holster)

  • Weight

    9.17oz (259.96g)

  • UPC Code

    793950393307

About Extech EX330

The EX330 is a compact autoranging multimeter which features extra large 4000 count display and a built-in non-contact AC voltage detector. Advanced function include Frequency, Duty Cycle, Capacitance and Temperature, Diode test and continuity. Rubber holster protects meter. UL listed Cat III - 600V. Includes test leads, Type K temperature probe, two AA batteries and tilt stand.

Extech EX330 Features

  • Autoranging DMM with 12 functions and 0.5% basic accuracy
  • AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity
  • Built-in non-contact AC voltage detector (NCV) with red LED indicator and audible beeper
  • Large-digit 4,000 count LCD display
  • 10A max Current
  • Data Hold, Relative and Auto power off
  • Type K temperature measurements
  • Complete with test leads, tilt stand, protective holster, general purpose Type K bead wire probe and 2x AAA batteries

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Extech EX330 12 Function Auto Ranging Mini MultiMeter with Non-Contact Voltage Detector
  • Test Leads
  • Tilt Stand
  • Protective Holster
  • Type K Bead Wire Probe
  • 2x AAA Battery
  • Extech 1 Year Limited Warranty
