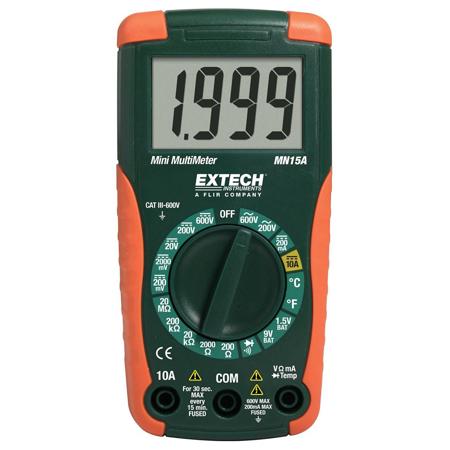

Extech MN15A 8 Function Manual Ranging Digital Mini MultiMeter
See all Extech items

Extech MN15A 8 Function Compact Manual Ranging Digital Mini MultiMeter

SKU: EXMN15A

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Extech MN15A Specifications

  • Diode Test

    Bias voltage: 2.8VDC typical

  • Continuity Check

    Audible signal will sound if the resistance is less than 100Ohms

  • Input Impedance

    1MOhms (VDC & VAC)

  • AC Bandwidth

    50 / 60Hz

  • Display

    2000 count (0 to 1999) LCD

  • Polarity

    Automatic (no indication for positive); Minus (-) sign for negative

  • Measurement Rate

    2 times per second, nominal

  • Battery

    9V battery (NEDA 1604)

  • Fuses

    mA range; 200mA/250V ceramic fast blow (5x20mm)
    A range; 10A/250V ceramic fast blow (5x20mm)

  • Operating Temperature

    41 to 104 deg. F (5 to 40 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Operating Humidity

    Max 70% up to 87 deg. F (31 deg. C) decreasing linearly to 50% at 122 deg. F (50 deg. C)

  • Storage Humidity

    < 80% RH

  • Operating Altitude

    7000' (2133.63m (maximum)

  • DC Voltage

    600V (0.1mV)

  • AC Voltage

    600V (0.1V)

  • DC Current

    10A (0.1mA)

  • Resistance

    20MOhms (0.1Ohms)

  • Dimensions

    5.43 x 2.83 x 1.5" (137.92 x 71.88 x 38.10mm)

  • Weight

    5.4oz (153.09g)

  • UPC Code

    793950380154

About Extech MN15A

Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. It is also a great gift idea for a hobbyist, hacker/maker, tinkerer or DIYer working on home improvement, automotive electrical and A/V projects. Use the MN15A for big and small tasks at home and in the garage.

Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5-volt and 9-volt batteries. The MN15A comes with built-in stand, 9-volt battery, test leads, general use temperature probe, user manual and one-year limited warranty.

Extech MN15A Features

  • Large easy to read digital display
  • AC/DC Voltage, DC Current, Resistance, Continuity, Diode Test and Type K Temperature
  • 1.5V and 9V Battery test function
  • Complete with 9V battery, general purpose Type K bead wire probe and test leads

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Extech MN15A 8 Function Compact Manual Ranging Digital Mini MultiMeter
  • 9V Battery
  • Test Leads
  • Type K Bead Wire Probe
  • User Manual
  • Extech 1 Year Limited Warranty
