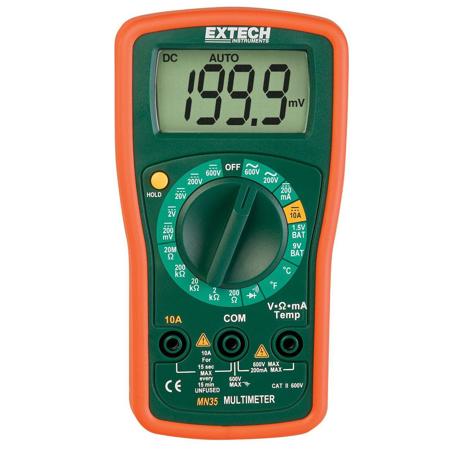

Extech MN35 8 Function Manual Ranging Digital Mini MultiMeter

Extech MN35 8 Function Manual Ranging Digital Mini MultiMeter

SKU: EXMN35
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Extech MN35 Specifications

  • Accuracy

    Stated at 23 deg. C +/-5 deg. C (73 deg. F +/-10 deg. F) and less than 70% RH

  • Diode Test

    Test current of 1mA maximum, open circuit voltage 2.8V DC typical

  • Continuity Check

    Audible signal will sound if the resistance is less than approximately <40Ohms +/- 5Ohms

  • Temperature sensor

    Requires type K thermocouple

  • Input Impedance

    10MOhms (VDC) and 4.5MOhms (VAC)

  • Display

    1999 count LCD

  • Over range

    "1 or -1" is displayed

  • Polarity

    Automatic (no indication for positive polarity); Minus (-) sign for negative polarity

  • Measurement Rate

    3 times per second, nominal

  • Low Battery

    Requires one 9V battery (NEDA 1604 or equivalent)

  • Fuses

    mA range; 250mA/250V fast blow
    10A range, no protection

  • Operating Temp

    0 deg. C to 40 deg. C (32 deg. F to 104 deg. F)

  • Storage Temp

    -20 deg. C to 60 deg. C (-4 deg. F to 140 deg. F)

  • Relative Humidity

    Maximum relative humidity 80% for temperatures up to 31deg. C decreasing linearly to 50% relative humidity at 40deg. C

  • Operating Altitude

    2000m / 6561.60' maximum

  • DC Voltage

    600V (0.1mV)

  • AC Voltage

    600V (0.1V)

  • DC Current

    10A (0.1mA)

  • Resistance

    20MOhms (0.1MuOhms)

  • Temperature

    -4 to 1400 deg. F / -20 to 760 deg. C

  • Battery Test

    9V and 1.5V

  • Power

    9V battery

  • Dimensions

    5.43 x 2.83 x 1.5" (137.92 x 71.88 x 38.10mm)

  • Weight

    5.4oz (153.09g)

  • UPC Code

    793950380352

About Extech MN35

The MN35 is a convenient mini size multimeter with protective rubber holster and tilt stand. Manual ranging, measures AC and DC Voltage to 600V, Resistance with Continuity and Diode functions, DC Current to 10A, Temperature and 9V/1.5V Battery test. Includes protective rubber holster, 9V battery, test leads and Type K thermocouple probe.

Extech MN35 Features

  • Large easy to read digital display
  • AC/DC Voltage, DC Current, Resistance, Type K Temperature, Continuity/Diode
  • 1.5V and 9V Battery test function
  • Convenient mini size with protective rubber holster and tilt stand
  • Data Hold locks reading in the display
  • Includes protective rubber holster, 9V battery, bead wire Type K temperature probe and test leads

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Extech MN35 8 Function Manual Ranging Digital Mini MultiMeter
  • 9V Battery
  • Bead Wire Type K temperature Probe
  • Test Leads
  • Extech 1 Year Limited Warranty
