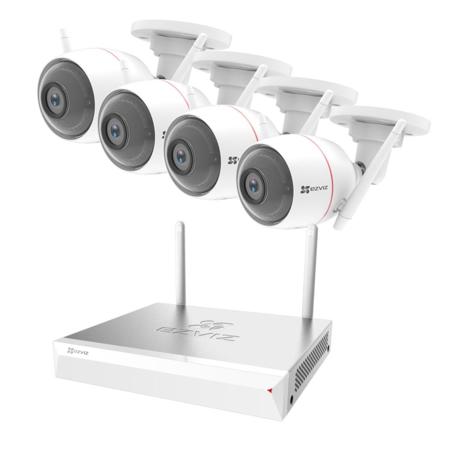

EZVIZ 8 Channel Indoor/Outdoor Security System Includes X5C NVR with 1TB HDD & 4x C3W 1080p Wi-Fi Bullet Cameras

SKU: EZBW2824B1

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

EZVIZ 8 Channel Security System Specifications

X5C-8 NVR: Network Specifications

X5C-8 NVR: Network Specifications

Jump to...
  • Antenna Number

    2

  • Maximum Wireless Access Bandwidth

    30mbps

  • Maximum Wireless Range

    100m

  • Radio Frequency

    2.4GHz

  • Ethernet Port

    One 10/100M adaptable Ethernet port

  • Wired Access Bandwidth

    50mbps

X5C-8 NVR: Video Output

Jump to...
  • VGA

    1 channel (Homologous to HDMI output)

  • HDMI

    1 channel

X5C-8 NVR: Audio/Video Codec

Jump to...
  • Access Camera Number

    4/8

  • Video Compression

    H.264

  • Decoded Playback

    Supports 4 1080P / Supports 8 1080P

X5C-8 NVR: Video Record Management

Jump to...
  • Video Capture

    Manual video recording; dynamic detection video; regular video recording; alarm recording

  • Backup Modes

    Supports hard disk backup, web application backup

X5C-8 NVR: HDD

Jump to...
  • Type

    One Built-in SATA port

  • Capability

    Supports 1TB to 6TB 3.5inch HDD

X5C-8 NVR: External Interface

Jump to...
  • Audio Output

    Support

  • Hardware Reset

    Support

  • USB2.0 Port

    1

X5C-8 NVR: Other

Jump to...
  • Operating Conditions

    32 to 104 Degree F (0 to 40 Degree C)
    Humidity 90% or less

  • Dimensions

    9.25 x 10.63 x 1.75" (235 x 270 x 44.5mm)

  • Weight

    1.98 lb (900g)

C3W Camera

Jump to...
  • Image Sensor

    1/2.7" Progressive Scan CMOS

  • Minimum Illumination

    0.02 lux @(F2.0, AGC ON), 0 lux with IR

  • Shutter Speed

    Self-adaptive shutter

  • Lens

    2.8mm@ F2.2, Horizontal angle: 103 Degree Diagonal angle: 118 Degree 4mm@ F2.0, Horizontal angle: 87 Degree Diagonal angle: 104 Degree 6mm@ F2.0, Horizontal angle: 54 Degree Diagonal angle: 62 Degree

  • Lens Mount

    M12

  • Day & Night

    IR-cut filter with auto-switching

  • DNR

    3D DNR

  • WDR

    Digital WDR

C3W Camera: Compression

Jump to...
  • Video Compression

    H.264

  • H.264 Type

    Main profile

  • Video Bit Rate

    HD, Balanced and Smooth. Adaptive bit rate.

C3W Camera: Image

Jump to...
  • Max. Resolution

    1920x1080

  • Image setting

    Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio)

  • BLC

    Support

C3W Camera: Network

Jump to...
  • Storage

    Support Micro SD card (Max. 128G)

  • Smart Alarm

    Intelligent motion detection

  • Wi-Fi Pairing

    SmartConfig (Wi-Fi One-Key Configuration)/AP paring

  • Protocol

    EZVIZ cloud proprietary protocol

  • Interface Protocol

    EZVIZ cloud proprietary protocol

  • General Features

    Anti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark

  • Communication Interface

    RJ45 10M/100M self-adaptive Ethernet port*1

  • Minimum Network Requirements

    2M

C3W Camera: Wi-Fi

Jump to...
  • Standard

    IEEE802.11 b/g/n

  • Frequency Range

    2.4 GHz - 2.4835 GHz

  • Channel Bandwidth

    Supports 20MHz

  • Security

    64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

C3W Camera: General

Jump to...
  • Transmission Rate

    11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

  • Operating Conditions

    -22 to 140 Degree F (-30 to 60 Degree C)
    Humidity 95% or less (non-condensing)

  • Power Supply

    DC 12V +/-10%

  • Power Consumption

    Max. 6W

  • IP Grade

    IP66

  • IR Range

    Max. 30meters

  • Dimensions

    5.92 x 3.78 x 2.82" (150.44 x 85.8 x 71.64mm)

  • Weight

    0.72 lb (326g)

  • UPC Code

    842571111552

About EZVIZ 8 Channel Security System

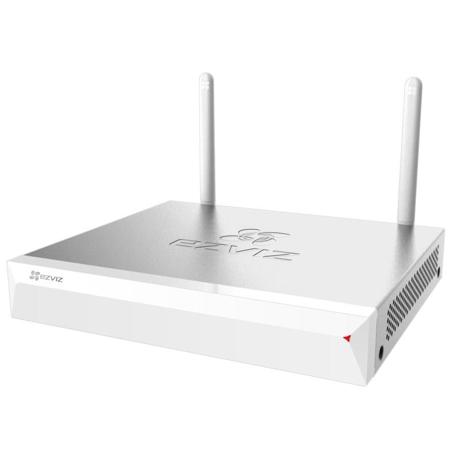

- X5C Wireless NVR -

Flexible and Easy to Use
The X5C (ezNVR) is a wireless NVR with HDMI and VGA ports that supports up to 8 Wi-Fi cameras and conforms to ONVIF standards. It features strong wall penetration and an enhanced Wi-Fi signal.

HDMI and VGA ports
Equipped with HDMI and VGA ports, the X5C (ezNVR) is compatible with a variety of monitors to suit your needs.

Achieve Total Coverage
The X5C (ezNVR) connects up to 8 Wi-Fi cameras so you can monitor different rooms simultaneously within multi-split screens. Enjoy complete coverage with no blind spots.

Quick Setup
The X5C (ezNVR) features "One-Key Access" setup for connecting multiple cameras quickly and easily and supports real-time status monitoring.

High-Definition Video Playback
The X5C (ezNVR) supports Full HD 1080p live view and video playback, so you don't miss any details. (720p default setting. Can be changed to 1080p manually.)

ONVIF Compatible
The X5C (ezNVR) works with ONVIF conformant Wi-Fi cameras regardless of manufacturer

Up to 6TB Local Storage
Select from 1TB to 6TB built-in storage so that your videos can be stored locally and securely.

Easy Control and Management
With the EZVIZ app or EZVIZ Studio, you can remotely control the X5C (ezNVR) to playback video or view a live feed even when you're away from your home or shop


- C3W Camera -

A Camera with Pro Deterrence
The C3W (ezGuard), a Full HD wall-mounted outdoor Wi-Fi camera, uses a built-in strobe light and alarm for deterrence, while also offering two-way talk and durability in any type of weather.

A Camera with Pro Deterrence
The C3W (ezGuard), a Full HD wall-mounted outdoor Wi-Fi camera, uses a built-in strobe light and alarm for deterrence, while also offering two-way talk and durability in any type of weather.

Active Light and Sound Alarms for Enhanced Defense
Upon detection, the C3W (ezGuard) activates a loud siren and strobe light to scare off intruders. The siren can reach up to 100 dB strong enough to act as a deterrent.

Two-Way Talk with HiFi Quality
Not every outdoor security camera supports two-way audio. The C3W (ezGuard) comes with a built-in microphone and HiFi quality speaker for enhanced two-way talk.

See Everything with 30m Night Vision
The integration of efficient infrared lighting, an anti-reflection panel and ICR infrared filter enables excellent night vision up to 30 meters.

External Dual Wi-Fi Antennas
Featuring powerful antennas, the C3W (ezGuard) delivers long-range transmission with strong penetration and anti-interference capabilities.

Designed for All Weather
The IP66-certified C3W (ezGuard) is a reliable and durable camera that can protect you in all types of weather: rain, sunshine or even snow.

360 Degree Swivel and Base
With the 360 Degree swivel and base, the C3W (ezGuard) supports both ceiling and wall-mounted installations to meet your security needs.

Multiple Storage Options
With multiple storage options, you can choose where to save your recordings. The cameras can even save to all three locations at the same time for added backup in case a camera is damaged or your network crashes.

• Supports MicroSD Card
• Encrypted Cloud Storage
• EZVIZ NVR

Security at Your Fingertips
With EZVIZ app or EZVIZ Studio, you can protect, capture, save and share what s valuable to you.

• Live View
• Real-Time Talk
• Instant Alerts
• Video History
• Up to 8x Zoom
• Smart Home Enabled

EZVIZ 8 Channel Security System Features

  • X5C Wireless NVR Features:
  • Wireless NVR with HDMI/VGA output to view live or recording
  • Dedicated Wi-Fi signal for recording up to 300ft/100m long range
  • Connect up to 8 1080p Wi-Fi cameras (the default setting is 720p, support change to 1080p manually)
  • Up to 6TB storage for 24/7 continuous live viewing and recording
  • Support ONVIF conformant camera
  • HDMI and VGA ports
  • Equipped with HDMI and VGA ports, the X5C (ezNVR) is compatible with a variety of monitors to suit your needs
  • C3W Camera Features:
  • 720p/1080p Video
  • Two-Way Audio
  • Supports 2.4GHz Wi-Fi
  • Infrared Night Vision (Up to 30 meters)
  • IP66 Dust and Water Protection
  • Active Defense
  • Supports MicroSD Card (Up to 128GB)

Key Features

  • X5C Wireless NVR Highlights:
  • Wireless NVR with HDMI/VGA output to view live or recording
  • Dedicated Wi-Fi signal for recording up to 300ft/100m long range
  • Up to 6TB storage for 24/7 continuous live viewing and recording
  • C3W Camera Highlights:
  • 720p/1080p Video

What's in the box:

  • X5C NVR with 1TB HDD
  • 4x C3W 1080p Wi-Fi Bullet Cameras
  • EZVIZ 1 Year Limited Warranty
