EZVIZ DB1 3MP Wi-Fi Smart Doorbell

SKU: EZDB11B3

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ANDREW C : night vision 5 g wifi hard wired local image storage plan not requiredBRUNO A : Hard wired, no battery neededJASPER C : I chose this door bell for ease of install, the 3mp and price . I tell you more once it is installedpirom p : Want to try one.SCOTT P : As an added enhancement to home security.PABLO H : For security

Reviews about this item

Review Summary

2020-08-03T20:00:00

Rated 3 out of 5

Door bell

Have to have existing electrical door bell to use

Great

2020-07-23T20:00:00

Rated 3 out of 5

WiFi connection

Can’t give a rating because I have not been able to connect to my WiFi

Mousie

2020-06-18T14:19:36

Rated 4 out of 5

Worth the money

It is worth the money I paid. Very easy to install. Works well so far. Make sure you have a door bell transformer that outputs voltage 16 ~ 24.

Jain K.

2020-06-11T09:15:49

Rated 5 out of 5

Good so far.

It is really good. I bought a power adapter from ebay and installed it. And also have ezviz wireless cams.I can controller those devices on same app. But it was really hard to configure wiring if you don't have any chimes. I watched you tube video to figure it out. I installed on iron door in apartment. It was hard to fix on the door after removed manual chime.

KIBAEK K.

2019-12-04T19:00:00

Rated 3 out of 5

Good camera, easy to setup the hardware, not easy to setup the software.

The camera quality is good but the application features & performance is very limiting.

CompuTechNet

2019-09-20T09:48:48

Rated 5 out of 5

Works great

I didn't have a wired doorbell prior so I had to have an installer put it in, but works great and the video and audio are a great convenience.

Anthony S.

2019-02-19T10:56:54

Rated 5 out of 5

Great smart doorbell

No problems, easy install, just a little sensitive on notifications, but you can adjust for shorter distance. All in all very good product.

Bobby C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

EZVIZ DB1 Specifications

System
  • Processor

    High-Performance Embedded SOC Processor

  • Operation System

    Embedded RTOS

  • Sensor

    1/2.8" 3-Megapixel starlight sensor

  • Lens

    2.2mm@F2.4

  • Field of View

    Vertical FOV 180 Degree , Horizontal FOV 105 Degree

  • Night Vision

    Up to 16' (5m)

  • Compression Standard

    Smart H.264

  • Max. Resolution

    2048x1536, QXGA

  • Frame Rate

    60Hz @ 30fps, Adaptive frame rate of network

  • DNR

    3D DNR

  • WDR

    DWDR

  • BLC

    Support

  • Audio Input

    Built-in omnidirectional microphone

  • Audio Output

    Built-in loud speaker

  • Audio Quality

    Noise suppression and echo cancellation

Network and Storage

Jump to...
  • Wireless

    Built-in 2.4GHz & 5GHz Wi-Fi

  • Network Configuration

    AP Pairing

  • Minimum Network Requirements

    2Mbps

  • Local Storage

    Support microSD card (Up to 128GB)

  • Cloud Storage

    EZVIZ Cloud Storage

  • Sensor

    PIR Motion Detection Sensor

  • Alarm

    Customized Alert Area

General

Jump to...
  • Power Supply

    8VAC - 24VAC

  • Power Consumption

    Max. 5W

  • Weatherproof

    IP65

  • Operating Conditions

    -22 to 140 Degree F (-30 to 60 Degree C), Humidity 95% or less (no condensation)

  • Dimensions

    5.1 x 1.8 x 0.83" (130 x 46 x 21mm)

  • Weight

    0.28 lb (125g)

  • UPC Code

    842571118858

About EZVIZ DB1

FEATURED REVIEWS

Good so far.

By KIBAEK K.

It is really good. I bought a power adapter from ebay and installed it. And also have ezviz wireless cams.I can controller those devices on same app. But it was really hard to configure wiring if you don't have any chimes. I watched you tube video to figure it out. I installed on iron door in apartment. It was hard to fix on the door after removed manual chime.

Works great

By Anthony S.

I didn't have a wired doorbell prior so I had to have an installer put it in, but works great and the video and audio are a great convenience.

3 Hours of Free Cloud Storage

EZDB11B3

Now includes 3 hours of EZVIZ Cloud motion detection scenes for ease of mind security

Always There to Answer the Door

Secure Your Home with A Smart Doorbell

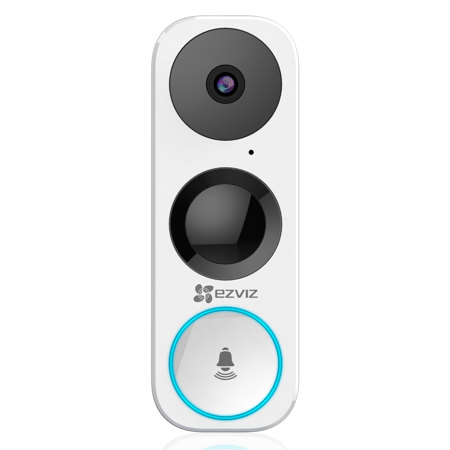

EZVIZ's DB1 is a 3MP Wi-Fi Smart Doorbell that lets you see who's there from head to toe and even talk to them when you are not home. Connect it to your smartphone to keep your home safe.

Note
• Please make sure your door is compatible with the DB1 before installing
• For the first time use, please power on the doorbell and wait for 3 hours before using it, or else the chime in your home may not work.

From Head to Toe, Every Detail is There
Even a tiny package on the ground is easily captured by the DB1, thanks to its 180 Degree vertical field of view and high-quality 3 Megapixel video.

Answer the Door from Anywhere
The DB1 initiates a video call via the EZVIZ App when someone rings your doorbell, so you'll never miss a visitor.

Get Intelligent Alerts with Two-Way Talk
See and talk to your visitors from your smartphone anywhere, any time. The built-in microphone and speaker make it easy for you to hear what's happening outside the door.

Be the First to Know Who's There
Featuring PIR motion detection, the DB1 sends an instant alert to you when a visitor is approaching. The DB1 also lets you customize the detection area, so you'll only get efficient alerts from the area you want to have your eyes on.

Designed for All Conditions
The DB1 comes with clear, 5-meter night vision and an IP65 weatherproof design, so you can see who is at your door any time of day and in any kind of weather.

Multiple Storage Solutions
Save your recordings with flexible and secured solutions. The DB1 comes with a built-in MicroSD card slot that can store up to 128 GB of recorded footage. You can also save your images to the EZVIZ Cloud for additional back-up.

Security at Your Fingertips
With EZVIZ app or EZVIZ Studio, you can protect, capture, save and share what's valuable to you.

• Live View
• Real-Time Talk
• Instant Alerts
• Video History
• Up to 8x Zoom
• Smart Home Enabled

EZVIZ DB1 Features

  • PIR Motion Detection
  • 2048x1536 Video Resolution
  • View Anywhere
  • Two-Way Talk
  • 180 Degree Vertical Field of View
  • IP65 Dust and Water Protection
  • Night Vision (Up to 5 meters)
  • 2.4/5GHz Wi-Fi
  • Supports MicroSD Card (Up to 128GB)

Key Features

  • PIR Motion Detection
  • 2048x1536 Video Resolution
  • View Anywhere
  • Two-Way Talk
  • 180 Degree Vertical Field of View
  • IP65 Dust and Water Protection

What's in the box:

  • 1x EZVIZ Doorbell DB1
  • 3x Faceplate
  • 3x Mounting Plate
  • 1x Plate Foam
  • 1x Screwdriver
  • 1x Drill Bit
  • 4x Wire Connectors
  • 3x Mounting Screws
  • 3x Anchors
  • 2x Security Screws
  • 2x Fixing Screws
  • 2x Doorbell Screws
  • 1x Wire Harness
  • 1x Fuse Wire
  • 2x U-shaped Wires
  • 1x Power Kit
  • 1x Mini-Level
  • EZVIZ 1 Year Limited Warranty
