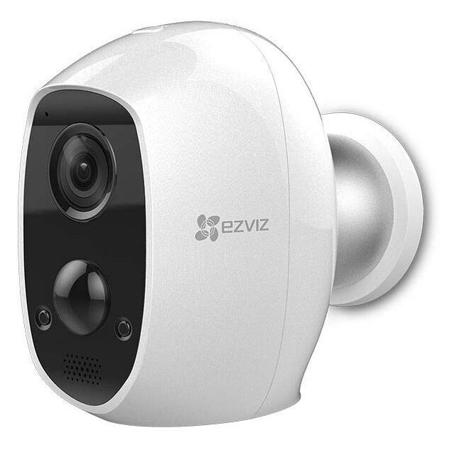

EZVIZ C3A 2MP 1080p Wi-Fi Wire-Free Security Camera with W2D Base Station
Video Review of the C3A 1080P Camera
EZVIZ C3A + W2D: Picture 1 thumbnail
See all EZVIZ items

EZVIZ C3A 2MP 1080p Indoor/Outdoor Wi-Fi Wire-Free Security Camera with W2D Base Station, 24.61' Night Vision, Weather-Proof

SKU: EZW2DB2

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

EZVIZ C3A + W2D Specifications

Camera

Camera

Jump to...

  • Processor

    High-Performance Embedded SOC Processor

  • Operation System

    Embedded RTOS

  • Image Sensor

    1/4" 2-Megapixel sensor

  • Lens

    2.2mm at F2.4

  • Field of View

    Diagonal FOV 126 deg.

  • Night Vision

    Up to 7.5m (24.61')

  • Video: Compression Standard

    Smart H.264

  • Video: Max. Resolution

    1920 x 1080, FHD

  • Video: Frame Rate

    50Hz at 25fps, 60Hz at 30fps Adaptive frame rate of network transmission

  • Video: DNR

    3D DNR

  • Video: WDR

    DWDR

  • Video: BLC

    Support

  • Audio Input

    Built-in omni-direction microphone

  • Audio Output

    Built-in loudspeaker

  • Audio Quality

    Noise suppression

  • Wireless

    Built-in 2.4G Wi-Fi

  • Network Configuration

    AP Pairing

  • Minimum Network Requirement

    2Mbps

  • Local Storage

    Support Micro SD Card (Up to 128GB)

  • Cloud Storage

    EZVIZ Cloud Storage

  • Sensor

    PIR Motion Detection Sensor

  • Alarm

    Customized Alert Area

  • Power Supply

    5500mAh Rechargeable Lithium Battery or 5V DC

  • Power Consumption

    Max. 5W

  • Ingress Protection Grade

    IP65

Base Station

Jump to...

  • Network Interface

    1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface

  • Minimum Network Environment

    2Mbps

  • Wireless Interface

    Supports 2.4G connection. The actual available channels vary according to the sales area regulations. Theoretical maximum rate is 144M at 802.11b/g/n. Supports Sub-1G connection with Low-Power Private Protocol. Working Band of 433M/868M/915M and available channels vary according to the sales area regulations

  • Battery Camera

    Supports up to 6 Wire-Free Cameras

  • CPU

    Qualcomm at 650 MHz (Maximum)

  • RAM

    128MB

  • Flash

    16MB

  • Alarm Siren

    Supports

  • Antenna

    2.4G: 2 internal at 2dB max Sub-1G: 1 internal

  • Indicator

    One System LED One WAN Port LED

  • Buttons

    One SYNC button. One Power button. One Reset button, hold 10 seconds to RESET

  • Power

    DC 5V 2A, typical power consumption < 10watts. The adapter supports a wide voltage range, expected 100V to 240V

General

Jump to...

  • Dimensions

    Camera: 56.08 x 70.02 x 92.09mm (2.21 x 2.76 x 3.63")
    Base Station: 95 x 95 x 110mm (3.74 x 3.74 x 4.33")

  • Weight

    Camera: 215g (7.58 oz)
    Base Station: 180g (6.35 oz)

Other

Jump to...

  • UPC Code

    842571121148

About EZVIZ C3A + W2D

HD 1080p Wire-Free Security Kit
With a long-lasting 5,500 mAh rechargeable battery and 100% wire-free design, the standalone C3A can be placed anywhere you need it to go. With the help of the W2D, battery life lasts even longer.

• PIR Motion Detection
• 1080p Video
• Two-Way Talk
• 5500 mAh Rechargeable Lithium Battery
• Night Vision (Up to 7.5 meters)
• 126 deg. Diagonal Field of View
• 2.4GHz Wi-Fi
• IP65 Dust and Water Resistance
• Supports MicroSD Card (Up to 128GB)

W2D
• Supports up to 6 C3A Units
• Prolongs Battery Life of Connected C3A
• Supports 100 Decibel Siren

Hassle-Free, Effortless Security
Use the C3A to monitor anywhere - whether indoors or outdoors or even in places without power outlets. Thanks to its wireless, battery powered and weatherproof design, the options are limitless!

Watches over What Matters Most
The C3A lets you see wide-angle, Full HD images. Its night vision also ensures 24/7 protection even when it's dark outside.

Easy Two-Way Talk
Speak with visitors and hear what's happening anywhere and at any time using your smartphone.

Extra Protection with Accurate Detection
The C3A's passive infrared (PIR) motion detection feature sends you an instant alert with images and videos captured when a visitor approaches. Once you connect the C3A with the W2D, the W2D will even emit a 100-decibel siren when triggered, reminding you to check on what's happening.

Worry Less with Longer Battery Life
The C3A equips with a removable and rechargeable 5,500 mAh Lithium battery. Paired with the W2D, the C3A's battery life can last even longer. With one-click sync buttons, the C3A and W2D will pair in seconds.

Multiple Storage Solutions
Save your recordings with flexible and secured solutions. The C3A comes with a built-in MicroSD card slot that stores up to 128 GB of recorded footage. You can also save your images to the EZVIZ Cloud for additional back-up.

Security at Your Fingertips
With the EZVIZ App and EZVIZ Studio Software, you can capture, save, protect and share what's valuable to you.

• Live View
• Real-Time Talk
• Instant Alerts
• Video History
• Up to 8x Zoom
• Smart Home Enabled

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • EZVIZ C3A 2MP 1080p Indoor/Outdoor Wi-Fi Wire-Free Security Camera
  • Battery
  • Magnetic Mount
  • USB Cable
  • Power Adapter
  • Screw Kit
  • Quick Start Guide
  • W2D Base Station
  • 5' (1.5m) USB Cable
  • 3.3' (1m) Ethernet Cable
  • EZVIZ 1 Year Limited Warranty
