Fluid Audio FPX7 Specifications

  • Frequency Response

    42Hz - 27kHz

  • Crossover Frequency

    3.5kHz

  • Amplifier Power

    140W RMS Class A/B
    LF Driver: 90W
    HF Driver: 50W

  • LF Driver Size

    7" composite paper cone with high-temperature voice coil and damped rubber surround

  • HF Driver Size

    AMT Coaxial-Mounted Tweeter: 1.1 x 1.7" / 27.94 x 43.18mm

  • Signal to Noise

    > 100dB typical (A-weighted)

  • Maximum Sound Pressure Level (SPL)

    106 dB at 3.3' / 1.01m

  • Polarity

    Positive signal at + input produces outward LF cone displacement

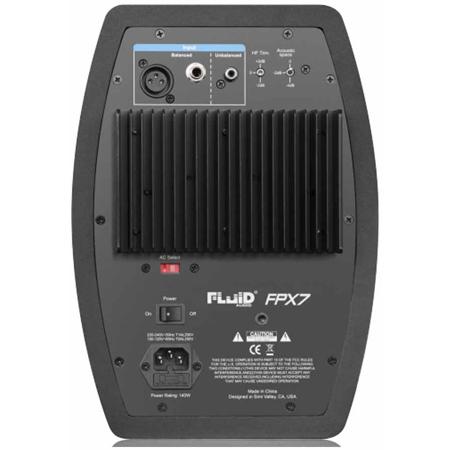

  • Input Connector

    1x XLR, balanced
    1x RCA, unbalanced
    1x TRS 1/4", balanced/unbalanced

  • Input Impedance

    20 kOhms balanced, 10 kOhms unbalanced

  • Input Sensitivity

    85 mV pink noise input produces 95 dBA output SPL at 3.3' / 1.01m with volume control at maximum

  • Fuse Protection

    Yes
    External main fuse holder (also houses a spare)

  • Protection

    RF interference, output current limiting, over temperature, turn-on/off transient and subsonic filter

  • Power Connector

    IEC

  • Power Indication

    Power on/off logo LED on front panel

  • Power Requirement

    Factory programmed to handle 100-120 VAC/60 Hz and 220-230VAC/50 Hz
    Voltage selection switch and on/off switch on rear panel

  • Cabinet

    Vinyl-laminated, acoustic-efficient MDF

  • Dimensions (H x W x D)

    12.1 x 8.5 x 10.4" / 307.34 x 215.90 x 264.16mm

  • Weight

    16.5lbs / 7.48kg

  • UPC Code

    858445004424

1 Accessories for Fluid Audio FPX7 140W 7" Two-Way Active Coaxial Studio Monitor, Single

  • All Accessories (1)
  • Speaker Accessories (1)

About Fluid Audio FPX7

Building upon the acclaimed Fader Series of studio monitors, Fluid Audio now announces the new FPX (Fader Pro Coax) line of monitors, with the FPX7 leading the way. Featuring beefed-up Class AB amplifiers, a performance toroidal transformer for superior noise characteristic, optimized composite cone woofers and AMT tweeters, the FPX7 produces the most accurate monitoring experience in its price range. With its lightning fast response, the AMT tweeter provides detail and depth only seen in Professional studios. What makes the FPX7 so unique, however, is that the AMT tweeter is mounted in the center of the woofer - in a coaxial configuration, which makes this speaker the first of its kind.

Coaxial drivers, found in such world renowned monitors such as the Manley ML10, provide such accuracy and detail because all of the frequencies coming from the tweeter and woofer radiate from the exact same position in space. This is critical for accurate off-axis response as well as phase coherence. The AMT tweeter is mounted to a custom designed waveguide, which provides it with wide dispersion and an expansive sweet spot. The complex, DSP controlled crossover provides a perfect blending of the woofer to the AMT tweeter and ensures that there is effectively zero variance speaker-to-speaker. The "engine" is DSP powered.

Fluid Audio FPX7 Features

  • Seamless, transparent response in a compact footprint
  • 7" composite cone, low-frequency driver
  • Air motion transformer (ribbon) tweeter provides an extremely fast and accurate response
  • Bi-amplified 140Watt Class A/B amplification (90w woofer/50w AMT tweeter)
  • Acoustic Space Control lets you calibrate the FPX7 to your mixing environment ( 0, -2, -4db )
  • Tweeter high frequency trim control ( +2, 0, -2db )
  • Fader Volume control on front baffle for easy access
  • 42Hz - 27kHz frequency response
  • Front loaded slot port for directional bass response
  • Amplifier standby function to conserve energy

Key Features

  • Seamless, transparent response in a compact footprint
  • 7" composite cone, low-frequency driver
  • Air motion transformer (ribbon) tweeter provides an extremely fast and accurate response
  • Bi-amplified 140Watt Class A/B amplification (90w woofer/50w AMT tweeter)
  • Acoustic Space Control lets you calibrate the FPX7 to your mixing environment ( 0, -2, -4db )
  • Tweeter high frequency trim control ( +2, 0, -2db )

What's in the box:

  • Fluid Audio FPX7 140W 7" Two-Way Active Coaxial Studio Monitor
  • AC Power Cord
  • 4x Acoustic Isolation Pad -Fluid Audio 3 Year Limited Warranty with Registration
