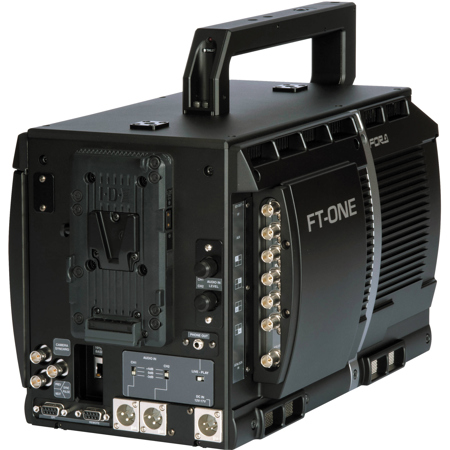

For.A FT-ONE-S Full 4K Ultra HD High Speed Variable Frame Rate Camera

For.A FT-ONE-S Full 4K Ultra HD High Speed Variable Frame Rate Camera with Remote Base Station, Up to 360 fps

SKU: FAFTONES
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

For.A FT-ONE-S Specifications

  • Camera Sensor

    CMOS sensor

  • Camera Effective resolution

    4096 x 2304 (4096 x 2160 DCI-compliant)

  • Camera Sensor size

    Super 35 mm-equivalent

  • Camera Color filter

    RGB Bayer

  • Camera Shutter mechanism

    Global shutter

  • Camera Quantization

    12-bit

  • Camera Shutter speed

    1/frame rate to 1/50,000 sec.

  • Camera Lens mount

    PL mount

  • Camera Trigger method

    START, CENTER, END
    Pre-roll function: Adjustable playback position

  • Camera Trigger signal input

    Remote control, GPI

  • Video settings: Gain

    Digital gain: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB, 30 dB, 36 dB, 42 dB
    Analog gain: 0 dB, 3 dB, 6 dB, 9 dB, 12 dB

  • Video settings: White balance

    PRESET: 3200K, 5600K, 6500K, 9300K
    AUTO WHITE

  • Video settings: Pedestal

    Black level set via R, G, B, Master

  • Video settings: Color correction

    Linear matrix: RB, RG, GR, GB, BR and BG

  • Video settings: Gamma

    Gamma1, Gamma0.45,Gamma0.50, HDTV, CINEMA

  • Video settings: Knee

    Knee point and Knee slope setting

  • Video settings: Enhancement

    On/Off, horizontal (H), vertical (V)

  • Audio Input: Mic In

    5-pin XLR (female) x 1 (stereo), balanced, high impedance
    Input level: -60 dBu/-50 dBu/-40 dBu
    Phantom power supply: +48 V/OFF

  • Video Output

    4K video output:
    3G-SDI (Level-A), 3840 x 2160, 75Ohms, 4x BNC
    Output formats: 1080/59.94p, 1080/50p

    VF output:
    HD-SDI
    Output formats: 1080/59.94i, 1080/50i

  • Audio Output

    Embedded: 2x channels (1 stereo pair), 48 kHz, synchronous

  • External Interfaces

    Iris control: 12-pin D-sub (female), manual/auto
    Intercom headset: 1x 4-pin XLR (female)

  • Base Station: Frame rate/recording time

    24 fps: 352.5 sec.
    60 fps: 141.7 sec.
    120 fps: 70.8 sec.
    180 fps: 47.2 sec.
    240 fps: 35.4 sec.
    300 fps: 28.3 sec.
    360 fps: 23.6 sec.

  • Base Station: Partitioning

    1 to 16 spaces

  • Base Station: Cartridge Type

    SSD Cartridge

  • Base Station: Cartridge Capacity

    Approx. 2TB (accepts two 2TB cartridges, 4TB in total)

  • Base Station: Cartridge Recording time

    Equivalent to 211 sec. of RAW material per cartridge at 360 fps

  • Base Station: From internal memory

    1000 frames in approx. 45 sec.

  • Base Station: Cartridge switching

    Hot-swappable (unused cartridge only)

  • Base Station: 4K video O/p (PLAY/LIVE)

    3G-SDI (Level-A), 3840 x 2160, 75Ohms, 8x BNC (Two 4K channels)
    Output format: 1080/59.94p, 1080/50p

  • Base Station: VF/auxiliary output

    2x HD-SDI (1x VF output, 1x AUX output)
    (Down converted signals of 4K material, with menus and markers layered on VF output)
    Output formats: 1080/59.94i, 1080/50i

  • Base Station: RET input

    HD-SDI
    Input format: 1080/59.94i, 1080/50i

  • Base Station: Genlock input

    BB: NTSC: 0.429 Vp-p
    PAL: 0.45 Vp-p
    Tri-sync: 1x +/-0.3 Vp-p

  • Base Station: Genlock mode

    Internal or external sync (BB or Tri-sync)

  • Base Station: External Interfaces

    Ethernet: 1x 100Base-TX/1000Base-T (for remote control unit and remote control panel connection)
    Intercom CLEAR-CAM, 2W, 4W

  • Power

    Camera: 100 V to 240 V AC (Supplied from the base station. Maximum distance: 1 km)
    Base Station: 100 V to 240 V AC

  • Consumption

    Camera: Approx. 100W

  • Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Humidity

    30% to 85% (no condensation)

  • Dimensions (W x H x D)

    Camera: 180 x 210 x 325mm (7.09 x 8.27 x 12.80") (excluding protrusions)
    Base Station: 430 x 88 x 500mm (16.93 x 3.46 x 19.69")

  • Weight

    Camera: 8.5kg (18.74lbs)

About For.A FT-ONE-S

Unbeatable Mobility to Capture the Moment
A new FT-ONE camera is here, building on the breakthrough of super slow-motion 4K shooting. Separating the camera head from the body offers exceptional mobility, enabling unprecedented shooting positions or angles for live sports or other events. Expand your creative horizons by combining super slow-motion 4K shooting-a highlight of FT-ONE cameras-with the superior mobility of this model.

More convenient camera head
At about 180 x 210 x 325 mm and 8.5 kg, the camera head is smaller and lighter than that of the original FT-ONE, yet it remains full-featured. The camera operator is linked optically and via an intercom system. Such a maneuverable camera head can be used where larger cameras cannot, as part of a system that expands creative possibilities.

Superb mobility at many live events
Camera operators have room to roam when covering live events, thanks to the 1 km range of the optical connection between the camera head and base station.

Fast 500 fps shooting at 4K
By adding mobility to the fast 4K shooting introduced by the FT-ONE, the FT-ONE-S can capture exciting moments better than ever.

Super 35 mm sensor
Capture live events with the sense of depth of TV dramas or movies. Content is immersive and beyond the reach of ordinary HD cameras with 2/3-inch image sensors. Even familiar scenes look more exciting.

12-axis color correction
In video output, color correction along 12-axis surpasses ordinary trichromatic correction. Specific colors can be corrected by adjusting hue and saturation on the 12-axis. This is convenient for on-site color-matching between scenes or when ensuring color consistency with video from other cameras.

Base Station
Designed for installation in vans or where events are covered, the base station features solid construction. Exceptionally reliable, it also eliminates the need for a control computer. FT-ONE-S base station meets all broadcast needs in a core system. Communication with the camera includes tally signals, shooting feedback and intercom functionality. Besides powering the camera head, the base station receives video and controls super slow-motion material. For material transfer, the base station accommodates two SSD cartridges which can hold nearly 7 minutes of material in all.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • For.A FT-ONE-S Full 4K Ultra HD High Speed Variable Frame Rate Camera
  • Remote Base Station
  • AC Cable
  • Operation Manual
  • For.A 1 Year Limited Warranty
