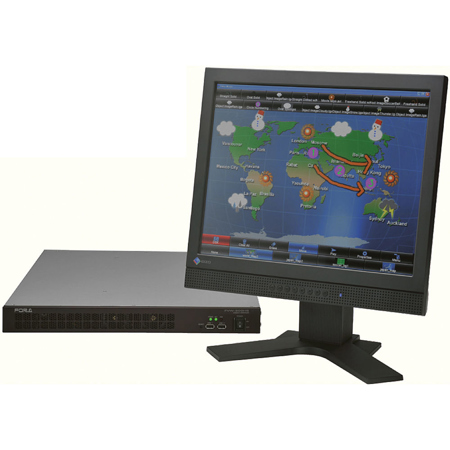

For.A FVW-500HS HD/SD Video Writer without Touchscreen and Keyboard/Mouse

The FVW-500HS is a video writer (telestrator) system that enables freehand drawing and positioning of objects and image files over video. The FVW-500HS is ideal not only for replay commentary in sports broadcasts, weather forecasts and news programs, but also provides the ultimate in freehand tools for creating educational materials and usage in various medical venues.

Freely Assignable Custom Buttons
The drawing tool buttons and background buttons positioned on the main screen are freely assignable. The drawing tools include function buttons for line, spotlight, circle, object and movie (animation) and any needed buttons can be freely positioned at the top of the screen. Each drawing tool button can be saved with preset colors, shapes and other options. The background buttons can be saved with a selected still image similar to a still store. These buttons can also be freely positioned at the bottom of the screen in the same way as the drawing tools.

Straight Line, Circle and Freehand Drawing
The drawing of straight lines, circles and in freehand is possible. The straight line, circle and freehand tools can be freely assigned to the drawing tool buttons. Multiple tools having different line colors, thicknesses, edges and shapes can be saved as buttons. To draw, the user simply selects his or her desired tool button and uses the mouse or finger to draw in the drawing area. The drawn line is stored in a separate layer for allowing each object to be handled individually even after drawing. Operations such as moving and deleting are also possible on individual objects.

Spotlight Effects
With linear converters that do simple frame rate conversion, there has been a problem of doing appropriate conversion for moving objects. FOR-A's FRC series, with their proven image processing technology, realizes motion compensation processing by using motion vectors. It detects motion vectors of objects and generates the object's motion in interpolated frames from the amount of vector fluctuation in the frames before and after, realizing frame rate conversion with minimal juddering.

Paste Still Image
Besides freely-assignable drawing functions such as straight line and freehand, image files can also be positioned on the screen as objects. In the same way as other tools, the object tool can be saved and used as a button. The size of an object image can be adjusted freely on the setting screen. To paste an image, simply select the tool button and place the image in the desired position by clicking with the mouse or finger in the drawing area. The image can be treated as a separate object. Operations such as moving and deleting are also possible on individual images.

Paste Movie Files
Besides the placement of still image objects, animation using sequentially-numbered files can be stored as an object. The sequentially-numbered files are converted to a movie file for use in the software in advance. Operations such as moving and deleting are also possible on individual movies. The movie playback settings include normal playback and loop playback in addition to an auto reverse setting that enables simultaneous playback of the previous movie during regular movie playback. This function can be used, for instance, for drawing attention to certain objects such as when selecting news items.

Change Property Function
The various buttons assigned to the drawing tools are set by the Properties button. The settings of placed objects are changed with the Modify button.

Undo Function
An undo function is included. If the user makes a mistake when drawing, this function can be used to reverse the last action in order to restore the drawing area to the previous state.

DSK ON/OFF
A DSK (composition) function is included. Setting DSK to ON/OFF turns the output on/off for the drawn content (object). With this function, setting to DSK ON enables the drawn content to be output instantly and when set to DSK OFF, the drawn content is not output until DSK is set to ON. With this button, it is possible to switch at the touch of a button between situations needing real-time drawing and situations needing preparation before output.

Key Output
The FVW-500HS includes separate key output. The pre-composition video stage can be output separately as fill and key videos. This enables importing to broadcasting systems, such as for video composition with a video switcher. Also, of the two output lines, OUT 2 can be set to MIX for preview use.

Hardware Engineered to Leverage Advanced Technologies
Dedicated hardware; unlike products based on computer platforms, the converter can be easily turned on and off with a single switch.
