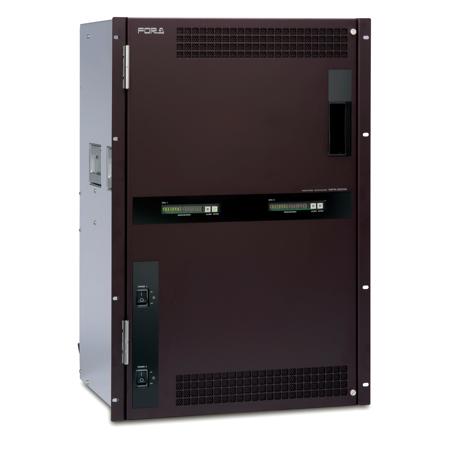

For.A MFR-8000 3G/HD/SD/ASI/AES/RS-422 Routing Switcher, 16-Channel

For.A MFR-8000 16-Channel 3G/HD/SD/ASI/AES/RS-422 Routing Switcher

SKU: FAMFR8000
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What types of signal formats does the MFR-8000 support?

The MFR-8000 supports multiple formats including 3G-SDI(Level A/B), HD-SDI, SD-SDI, and ASI signal input/output. It also has an automatic signal type detection feature.

Can the MFR-8000 be customized to fit specific needs?

Yes, the MFR-8000 is a modular rack mount chassis, designed to be customized to your specific needs. It can support up to 16 inputs/16 outputs of 8K signal and 64 inputs/64 outputs of 4K signal.

How can I control and manage the settings of the MFR-8000?

The MFR-8000 offers free access to control settings via its web-based control. This includes system settings, input and output settings, tally settings, remote control button assignments, and crosspoint switch settings.

What is the SNMP support feature in the MFR-8000?

The SNMP support feature allows for the MFR-8000 to be easily integrated into an SNMP monitoring system. This means you can monitor the status of various items including power source, fan and CPU units, presence/absence of signals, crosspoint errors, and more.

What is the maintainability feature of the MFR-8000?

Designed with maintainability in mind, all boards and power units of the MFR-8000 can be accessed from the front without removing cables. This makes it easier for maintenance and troubleshooting.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

For.A MFR-8000 Specifications

  • Video formats

    3G HD: 1080/60p, 1080/59.94p, 1080/50p
    HD: 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/30PsF, 1080/29.97p, 1080/29.97PsF, 1080/23.98p, 1080/23.98PsF, 1080/25p, 1080/25PsF, 1080/24p, 1080/24PsF, 720/60p, 720/59.94p, 720/50p
    SD: 525/60, 625/50

  • Matrix size

    Min. 16 x 16 - Max. 256 x 256 + 4 monitoring outputs
    Input slot: 16, Output slot: 16 (expandable on a 16-channel basis)

  • Video input: MFR-16SDIA

    SDI input card: 75Ohm, BNC x16 (max. 16 cards)
    Compliant with the following (75Ohm BNC)
    SMPTE 424M (2.97 Gbps, 2.97/1.001 Gbps)
    SMPTE 292M (1.485 Gbps, 1.485/1.001 Gbps)
    SMPTE 259M (270 Mbps)
    DVB-ASI

  • Cable equalization

    3G/HD-SDI: 100 m (5C-FB cable (Belden 1694A))
    SD-SDI: 200 m (5C-2V cable (Belden 8281))

  • Video output: MFR-16SDO

    Output card: 75Ohm, 16x BNC (max. 16 cards)
    Compliant with the following (75Ohm BNC) (Auto reclocking)
    SMPTE 424M (2.97 Gbps, 2.97/1.001 Gbps)
    SMPTE 292M (1.485 Gbps, 1.485/1.001 Gbps)
    SMPTE 259M (270 Mbps)
    DVB-ASI

  • Monitoring output

    3G/HD/SD-SDI, DVB-ASI: 4x 75Ohm BNC (Auto reclocking not supported)

  • Audio input: MFR-16ADI

    AES/EBU audio input card with SRC (max. 4 cards)
    16x BNC (16 stereo pairs, 32 channels)
    75Ohm, BNC
    Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz

  • Audio input: MFR-16AAI

    Analog audio input card with A/D converter (max. 4 cards)
    4x 25-pin D-sub (female) (16 stereo pairs, 32 channels)
    Balanced or unbalanced, 600Ohm or high impedance
    Sampling frequency: 48 kHz

  • Audio input: MFR-16AESI

    AES/EBU audio input card (max. 16 cards)
    16x BNC (16 stereo pairs, 32 channels)
    75Ohm, BNC

  • Audio output: MFR-16ADAO

    Embedded/AES/analog audio output card (max. 8 cards)
    AES/EBU (synchronous only)
    8x BNC (8 stereo pairs, 16 channels)
    48 kHz
    Embedded audio (1080/59.94i or 1080/60i)
    2x BNC (8 stereo pairs, 16 channels)
    unbalanced, 48 kHz
    Analog audio
    1x 25-pin D-sub (female) (4 stereo pairs, 8 channels)
    Balanced or unbalanced, less than 100Ohm, 48 kHz

  • Audio output: MFR-16AESO

    AES/EBU audio output card (max. 16 cards)
    16x BNC (16 stereo pairs, 32 channels)
    75Ohm BNC

  • RS-422 data input/output: MFR-16DTIO

    RS-422 data input / output card (max. 8 cards)
    Data rate: max. 115.2 kbps
    16x 9-pin D-sub (female)

  • Reference input

    BB: 0.429 Vp-p (NTSC)/0.45 Vp-p (PAL) or Tri-level sync: +/-0.3 Vp-p
    2x 75Ohm BNC, loop-through
    (terminate with 75Ohm terminator, if unused.)

  • Interfaces: MFR-LAN

    10/100/1000 Bade-T,2x RJ-45
    (for connecting up to 128 RU/GPI units)
    (second LAN port used in redundant CPU configuration)

  • Interfaces: PC-LAN

    10/100 Base-TX, 2x RJ-45 (for PC operation)
    (second LAN port used in redundant CPU configuration)

  • ARCNET1 / ARCNET 2

    Unused

  • SERIAL

    RS-232C/RS-422 (internal switch),1x 9-pin D-sub (male)

  • ALARM

    1x 9-pin D-sub (female) (input: reset, output: power, fan alarm)

  • Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Humidity

    30% to 85% (no condensation)

  • Power

    100 VAC to 240 VAC +/-10%, 50/60 Hz IN x2

  • Consumption

    256 x 256 input/output, dual CPU/redundant power unit (maximum configuration):
    630 VA (623 W) at 100 VAC to 120 VAC
    638 VA (606 W) at 220 VAC to 240 VAC

  • Consumables

    Power supply unit: replace every 5 years
    Fans P-1426, P-1429, P-1430, P-1431, P-1499, P-1500, P-1501, P-1502: replace every 4 years

  • Dimensions (W x H x D)

    482 x 710 x 403mm / 18.98 x 27.95 x 15.87" ,EIA 16 RU

  • Weight

    68kg / 149.91lbs (with full options)

About For.A MFR-8000

Are you seeking a durable, reliable, and high-quality routing switcher Look no further than the MFR-8000 16-Channel 3G/HD/SD/ASI/AES/RS-422 Routing Switcher. This advanced and sophisticated piece of equipment is a modular rack mount chassis, designed to be customized to your specific needs.

The MFR-8000 is a product of For.a, a reputable brand known for its superior professional equipment. It builds on the functions and control interfaces of the MFR-5000, offering an expanded matrix of up to 256 inputs/256 outputs in a compact 16U frame.

This routing switcher supports multiple formats including 3G-SDI(Level A/B), HD-SDI, SD-SDI, and ASI signal input/output, with an automatic signal type detection feature. It also routes control signals between master units like editing stations and slave units such as video servers, with an added I/O card for serial control.

The MFR-8000 can be configured to support up to 16 inputs/16 outputs of 8K signal and 64 inputs/64 outputs of 4K signal. It also offers free access to control settings via its web-based control, including system settings, input and output settings, tally settings, remote control button assignments, and crosspoint switch settings.

This routing switcher is designed with outstanding redundancy, featuring an LED display on the main unit for settings and alarms. It also offers a variety of crosspoint control features, including salvo function, take operation, link function, level operation, chop function, monitor out, and prevention of incorrect operation.

The MFR-8000 also supports SNMP remote monitoring, allowing for easy integration into an SNMP monitoring system. This means you can monitor the status of various items including power source, fan and CPU units, presence/absence of signals, crosspoint errors, and more.

Designed with maintainability in mind, all boards and power units can be accessed from the front without removing cables. This makes the MFR-8000 16-Channel 3G/HD/SD/ASI/AES/RS-422 Routing Switcher a reliable, high-quality choice for your routing and switching needs.

For.A MFR-8000 Features

  • Modular 16-Channel Routing Switcher with customizable 256 input/output matrix
  • Multi-Format Support for 3G-SDI, HD-SDI, SD-SDI, ASI with automatic detection
  • Web-Based Control for easy management of system and crosspoint settings
  • Advanced Redundancy with front LED display for real-time alerts and status
  • Comprehensive Crosspoint Control features for efficient signal routing
  • SNMP Support for seamless integration into remote monitoring systems

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly switch between 16 channels with this reliable routing switcher.
  • Enjoy wide compatibility with 3G/HD/SD/ASI/AES formats for video signals.
  • Expand your matrix size from 16x16 up to 256x256 for advanced routing needs.
  • Ensure a stable video input with cable equalization up to 100m for 3G/HD-SDI.
  • This video switcher supports AES/EBU audio input with SRC for pristine sound.
  • Integrate easily with RS-422 data input/output for comprehensive control systems.

What's in the box:

  • For.A MFR-8000 16-Channel 3G/HD/SD/ASI/AES/RS-422 Routing Switcher
  • Setup Guide
  • AC Cable with Retaining Clip
  • Rack Mount Brackets
  • Operation Manual
  • For.A 1 Year Limited Warranty
