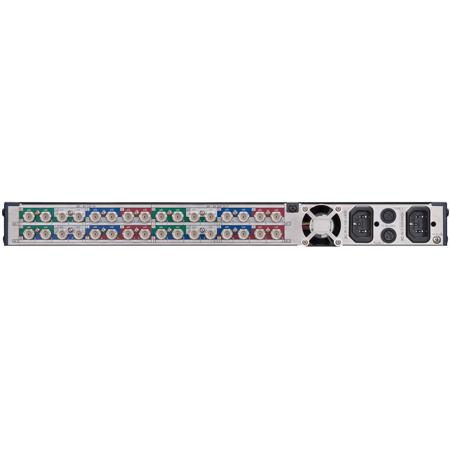

For.A SCV-8000 UHDTV Signal Converter
See all For.A items

For.A SCV-8000 UHDTV Signal Converter

SKU: FASCV8000

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What types of signals can the SCV-8000 UHDTV Signal Converter convert?

The SCV-8000 UHDTV Signal Converter can convert signals from a variety of sources including 3G HD-SDI, 4K/UHD, BNC, and multi-format converters. It can handle both 4K and 8K signals.

Does the SCV-8000 UHDTV Signal Converter support automatic conversion mode switching?

Yes, the SCV-8000 UHDTV Signal Converter features automatic conversion mode switching based on the input signal payload. It also offers the option for manual switching.

What kind of user interface does the SCV-8000 UHDTV Signal Converter have?

The SCV-8000 UHDTV Signal Converter features a user-friendly interface with convenient displays of operational mode, conversion mode, and frame frequency settings on the front LCD panel.

What happens if the power supply to the SCV-8000 UHDTV Signal Converter fails?

The SCV-8000 UHDTV Signal Converter is equipped with a built-in redundant power supply that ensures uninterrupted operation in the event of a power supply failure.

What is the purpose of audio remapping in the SCV-8000 UHDTV Signal Converter?

Audio remapping in the SCV-8000 UHDTV Signal Converter allows for precise channel configuration during the 1.5G to 3G conversion process.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

For.A SCV-8000 Specifications

  • Frame frequency

    59.94 Hz/ 50 Hz

  • Video Input: 8K

    7680 x 4320/59.94p (50p)
    SDI input can be switched between the following two types:
    8K input (3G-SDI x8) BNC x8 (1 line)
    SMPTE 424M-compliant
    DG-SDI signals with G1/G2/B/R mapped to 3G-SDI
    Level-B Dual Stream
    Payload IDs of each channel detected
    Audio multiplexing: BNC x2 (16 ch x2)

  • Video Input: 8K (Cont.)

    1x Time code multiplexing: BNC
    8K input (HD-SDI) BNC x16 (1 line)
    SMPTE 292M-compliant
    DG-SDI signals with G1/G2/B/R mapped to HD-SDI
    Payload IDs of each channel detected
    Audio multiplexing: BNC x4 (8 ch x4)
    1x Time code multiplexing: BNC

  • Video Input: 4K

    3840 x 2160/59.94p (50p) or 4096 x 2160/59.94p (50p)
    4K input (4x 3G-SDI Level-A/B )
    4x BNC (2 synced lines)
    SMPTE 424M-compliant
    Payload ID
    YUV 422 / 10-bit
    Square Division (SQD) or 2-Sample Interleave Division (2SI)
    Audio multiplexing: BNC x1 (2x 16 ch)
    Time code multiplexing: 1x BNC (2 lines)

  • Video output: 8K

    7680 x 4320/59.94p (50p)
    SDI output can be switched between the following two types:
    8K output (3G-SDI x8)
    BNC x8 (2 lines/distributed)
    SMPTE 424M-compliant
    DG-SDI signals with G1/G2/B/R mapped to 3G-SDI
    Level-B Dual Stream
    Payload IDs added to each 3G-SDI channel to prevent misconnection
    Audio multiplexing: 2x BNC (2x 16 ch)

  • Video output: 8K (Cont.)

    Time code multiplexing: 1x BNC
    8K output (HD-SDI x16) BNC x16 (1 line)
    SMPTE 292M-compliant
    DG-SDI signals with G1/G2/B/R mapped to HD-SDI
    Payload IDs added to each
    HD-SDI channel to prevent misconnection
    Audio multiplexing: 4x BNC (8 ch x4)
    Time code multiplexing: 1x BNC

  • Video output: 4K

    3840 x 2160/59.94p (50p) or
    4096 x 2160/59.94p (50p)
    4K output (3G-SDI Level-A/B x4) 4x BNC
    (2 lines/2-way distributed)
    SMPTE 424M-compliant
    Payload ID
    YUV 422 / 10-bit
    Square Division (SQD) or 2-Sample Interleave Division (2SI)
    Audio multiplexing: 1x BNC (16 ch x2)
    Time code multiplexing: 1x BNC
    (2 lines/2-way distributed)

  • I/O delay: 8K

    1 line max

  • I/O delay: 4k

    Between 2SI and SQD:1 frame max.
    2SI to 2SI, SQD to SQD:
    Level-A to Level-A: 1 line max.
    Level-B to Level-B: 1 line max.
    Level-A to Level-B: 3 lines max.
    Level-B to Level-A: 558 lines max

  • Video Input format: 3G-SDI

    Permitted phase difference
    between channels: within +/-0.5 H
    59.94 Hz: approx. +/-7.41 Mus max. / +/-1100 clk max.
    50 Hz: approx. +/-8.89 Mus max. / +/-1320 clk max.

  • Video Input format: HD-SDI

    Permitted phase difference
    between channels: within +/-0.5 H
    59.94 Hz: approx. +/-14.82 Mus max. / +/-1100 clk max.
    50 Hz: approx. +/-17.78 Mus max. / +/-1320 clk max.

  • Video output format: 3G-SDI

    Phase difference between channels: 64 clk max.

  • Video output format: HD-SDI

    Phase difference between channels: 64 clk max.

  • Video output format: Audio formats

    48 kHz, 24-bit, 32 channels (AES3-compliant)

  • Audio output: 8K

    8K output (3G-SDI) BNC x2
    (16 ch x2; shared with video output, 2 lines/distributed)
    SMPTE 299M-compliant
    8K output (HD-SDI) BNC x4
    (8 ch x4; shared with video output, 1 line)
    SMPTE 299M-compliant

  • Audio output: 4K

    4K output (3G-SDI) BNC x1
    (16 ch x1; shared with video output, 2 lines max.)
    SMPTE 299M-compliant

  • Time code input: 8K

    8K input (3G-SDI) BNC x1 (shared with video input; 1 line)
    SMPTE 12M-1/12M-2-compliant
    8K input (HD-SDI) BNC x1 (shared with video input; 1 line)
    SMPTE 12M-1/12M-2-compliant

  • Time code input: 4K

    4K input (3G-SDI) BNC x1 (shared with video input; 1 line)
    SMPTE 12M-1/12M-2-compliant

  • Time code output 8K

    8K output (3G-SDI) BNC x1 (shared with video output;
    2 lines/distributed)
    SMPTE 12M-1/12M-2-compliant
    8K output (HD-SDI) BNC x1 (shared with video output; 1 line)
    SMPTE 12M-1/12M-2-compliant

  • Time code output 4K

    4K output (3G-SDI) BNC x1 (shared with video output; 1 line)
    SMPTE 12M-1/12M-2-compliant

  • Temperature

    For operation: 5 to 40 deg. C / 41 to 104 deg. F
    For storage: -20 to 60 deg. C / -4 to 140 deg. F

  • Humidity

    For operation: 10% to 80% (no condensation)
    For storage: Lower than 80% (no condensation)

  • Power

    100 V AC to 240 V AC +/-10%, 50/60 Hz, redundant power supply

  • Consumption

    56 W max.

  • Dimensions (W x H x D)

    16.93 x 1.73 x 17.72" (430 x 44 x 450mm) ,EIA 1U, excluding protrusions

  • Weight

    14.33 lbs (6.5kg)

About For.A SCV-8000

A cutting-edge SCV-8000 UHDTV Signal Converter, this high-tech device offers bidirectional conversion for both 4K and 8K signals, making it an essential tool in any professional video production or broadcasting setting. This advanced converter, manufactured by the reputable FOR.A brand, is designed to seamlessly convert signals from a variety of sources including 3G HD-SDI, 4K/UHD, BNC, and multi-format converters.

This sophisticated device supports the conversion of Super Hi-Vision Dual Green Signal, 8K HD-SDI (x16) to 3G-SDI (x8), and 4K Level-A/B, SQD/2SI signals. It also supports embedded audio, time code, and other ancillary data, ensuring a comprehensive conversion process.

The innovative SCV-8000 UHDTV Signal Converter features automatic conversion mode switching based on input signal payload, with the option for manual switching also available. This state-of-the-art feature ensures optimal performance and versatility, as each channel can be separately configured to meet specific conversion needs.

In the 1.5G to 3G conversion process, this device offers audio remapping capabilities. Channels 9-16 are mapped behind 1-8 in stream A and channels 1-8 behind 9-16 in stream B in the G1-a/b output. Similarly, in the G1-c/d output, channels 25-32 are mapped behind 17-24 in stream A and channels 17-24 behind 25-32 in stream B.

The SCV-8000 UHDTV Signal Converter also boasts a user-friendly interface with convenient displays of operational mode (DG 8K/4K), conversion mode, and frame frequency settings on the front LCD panel. To ensure uninterrupted operation, this device is equipped with a built-in redundant power supply that kicks in during a power supply failure. This feature underscores the device's reliability and commitment to providing continuous, high-quality conversion services.

For.A SCV-8000 Features

  • Bidirectional 4K and 8K signal conversion for professional video production
  • Supports 3G HD-SDI, 4K/UHD, BNC, and multi-format source compatibility
  • Automatic and manual conversion mode switching for operational flexibility
  • Embedded audio and time code support for comprehensive data conversion
  • Audio remapping in 1.5G to 3G conversions for precise channel configuration
  • Built-in redundant power supply for reliable, uninterrupted operation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly convert video formats with stable connections for high-quality broadcasting.
  • Achieve real-time conversion of 8K and 4K video signals, ensuring no missed frames.
  • Enjoy easy setup with this video format converter, perfect for any production environment.
  • Ensure format compatibility across various SDI standards for versatile video workflows.
  • This UHDTV signal converter offers high resolution output, enhancing your viewing experience.
  • Get an affordable price on a professional-grade video converter without sacrificing quality.

What's in the box:

  • For.A SCV-8000 UHDTV Signal Converter
  • 2x Grounded Power Cables
  • Rack Mount Brackets (Including Screws)
  • Operation Manual
