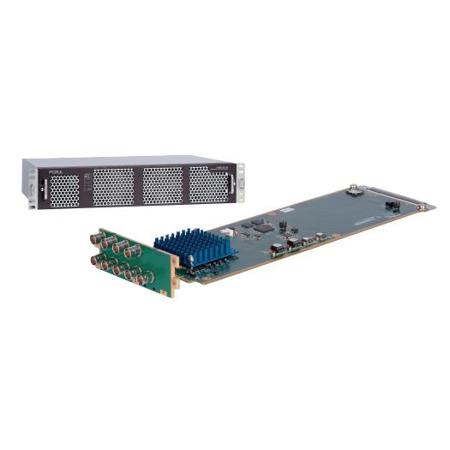

For.A 4K UHD Up/Down Conversion Module for USF-212S Universal System Frame

SKU: FAUSF1044UDC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What types of 4K signals does the 4K UHD Up/Down Conversion Module for USF-212S Universal System Frame support?

The 4K UHD Up/Down Conversion Module supports both SQD and 2SI 4K signals for an enhanced visual experience.

Does the 4K UHD Up/Down Conversion Module for USF-212S Universal System Frame have any audio features?

Yes, the module has audio gain and delay options for customizable audio settings. It also supports embedded audio with 16 channels, 12 of which are for SD output.

What is the function of the aperture feature in the 4K UHD Up/Down Conversion Module for USF-212S Universal System Frame?

The aperture feature in the module adjusts the sharpness of the image, allowing you to fine-tune your viewing experience.

Can I use the 4K UHD Up/Down Conversion Module for USF-212S Universal System Frame for up/down conversion between SD and HD?

No, up/down conversion between SD and HD is not available with this module.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

For.A Conversion Module Specifications

  • Video inputs

    One system is selected for conversion
    4K: 3G-SDI: 3 Gbps, 75Ohms, BNC x 4 (1080/59p, 1080/50p, Level-A/B), Signal format: SQD or 2SI, color space: ITU-R BT.709 or BT.2020
    HD (3G/1.5G), SD: 3G-SDI: 3 Gbps, HD-SDI: 1.5 Gbps, SD-SDI: 270 Mbps, 75Ohms, 1x BNC

  • Genlock input

    Supplied from the USF-212S frame (BB or Tri-level sync)

  • Video outputs

    Produces either as output, depending on conversion (3G/HD/SD: distributed to four outputs)
    4K:
    3G-SDI: 3 Gbps, 75Ohms, BNC x 4 (1080/59p, 1080/50p, Level-A/B)Signal format: SQD or 2SI, color space: ITU-R BT.709 or BT.2020
    HD (3G/1.5G), SD: 3G-SDI: 3 Gbps, HD-SDI: 1.5 Gbps, SD-SDI: 270 Mbps, 75Ohms, 4x BNC

  • Conversion delay

    0.3 to 160 msec

  • Audio inputs: Embedded

    4K/HD (3G/1.5G): 16 channels (Group 1 to 4), 48 kHz, 16-bit to 24-bit, synchronous/asynchronous
    SD: 12 channels (Group 1 to 3), 48 kHz, 24-bit, synchronous only

  • Video processing

    H/V enhancement, Noise reducer

  • Audio delay

    0 to 1000 msec (1 msec increments)

  • Control

    Browser-based setup (via USF-212S frame)

  • Monitoring

    SNMP v2c (via USF-212S frame)

  • Slots required

    2

  • Power

    DC +12V (supplied from the USF frame)

  • Consumption

    1.5A

  • Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Humidity

    30% to 85% (no condensation)

  • Dimensions (W x H x D)

    Front (W x D): 106 x 356mm / 4.17 x 14.02"
    Rear (W x H): 114 x 40.7mm / 4.49 x 1.60"

  • Weight

    0.3kg / 0.66lbs

About For.A Conversion Module

From enhancing your visual experience to delivering superior audio quality, the 4K UHD Up/Down Conversion Module for USF-212S Universal System Frame is a must-have for any tech enthusiast. This advanced module supports both SQD and 2SI 4K signals, ensuring high-definition visuals that are sure to impress.

The module's H/V enhancement feature optimizes the horizontal and vertical resolution, providing you with a crisp, clear picture every time. With support for ITU-R BT.2020/709 4K color space, this conversion module guarantees vibrant, true-to-life colors that will take your viewing experience to the next level.

The built-in noise reducer minimizes unwanted static and interference, ensuring a smooth, uninterrupted viewing experience. The clean edge feature further enhances the picture quality, providing sharp, well-defined images.

But this module isn't just about visuals. It also offers superior audio features, including audio gain and delay options. These features allow you to customize your audio settings to match your personal preferences and viewing environment.

The module also comes with an aperture feature, which adjusts the sharpness of the image, giving you the power to fine-tune your viewing experience.

For those who value high-quality sound, the module supports embedded audio with 16 channels, 12 of which are dedicated for SD output. This ensures a rich, immersive audio experience that complements the stunning visuals.

Please note that up/down conversion between SD and HD is not available with this module.

In summary, the 4K UHD Up/Down Conversion Module for USF-212S Universal System Frame is a comprehensive solution for enhancing your audio and visual experience. Its advanced features and superior performance make it a valuable addition to any home or professional setup.

For.A Conversion Module Features

  • Supports both SQD and 2SI 4K signals for high-definition visuals
  • Features H/V enhancement for optimized resolution and ITU-R BT.2020/709 4K color space compatibility for vibrant colors
  • Built-in noise reducer for a smooth, uninterrupted viewing experience
  • Audio gain and delay options for customizable audio settings
  • Aperture feature for image sharpness adjustment
  • Supports embedded audio with 16 channels, including 12 for SD output for immersive sound quality

Key Features

  • Seamlessly convert video formats with this 4K UHD up/down conversion module.
  • Achieve high-resolution video output with enhanced noise reduction features.
  • Enjoy stable connection via 3G-SDI inputs/outputs for reliable video processing.
  • Easily manage real-time streaming with browser-based setup and SNMP monitoring.
  • Ensure format compatibility with support for various SD, HD, and 4K standards.
  • Customize audio delay for perfect synchronization with embedded audio channels.

What's in the box:

  • For.A 4K UHD Up/Down Conversion Module
  • Operation Manual (CD-ROM)
  • For.A 1 Year Limited Warranty
