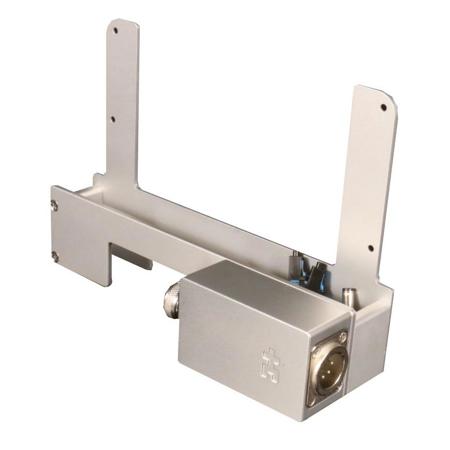

FieldCast One Plus Adapter for ATEM Camera Converter

Be empowered with the One Plus Adapter for ATEM Camera Converter, a superior tool designed to enhance your camera's power connectivity. This advanced adapter mirrors the functionality of Adapter One, but with an added four-pin XLR chassis connector. This allows you to leverage an external battery for a more secure and robust connection to your power supply.

The One Plus Adapter seamlessly connects the FieldCast Cable to Blackmagic Design's renowned ATEM Camera Converter. It provides comprehensive protection for the delicate fiber optic LC connections to the SFP of the Camera Converter.

This adapter is equipped with a FieldCast 2Core Chassis Connector, enabling a swift and easy connection of the FieldCast 2Core SM (single mode) Main Cable to the Blackmagic Design ATEM Camera Converter. It also features a Neutrik four-pin XLR chassis connector, facilitating the connection of an external battery pack to the Camera Converter using a standard adapter cable with an XLR four-pin female cable connector.

The One Plus Adapter is designed with a 90-degree power plug that taps into the power connector of the Camera Converter without altering its functionality. It is a robust all-aluminum solution, built around a milled-out block that fully covers and safeguards the vulnerable LC connections to the SFP of the Camera Converter.

Installation is effortless as it mounts to the back of the Camera Converter using the four taps of its housing. There's no need for customization, drilling, or gluing. The adapter is encased in a rugged milled-out aluminum case, glass blasted and anodized for durability.

The One Plus Adapter for ATEM Camera Converter is color-coded and features a FieldCast 2Core SM Chassis Connector with a D-size flange. It incorporates a custom FieldCast ultra-short bend insensitive patching cable inside, standard single mode 9/125 fiber optic technology, and standard PC polished LC Duplex connections to SFP.

The adapter also includes a Neutrik NC4MD-LX 4-pin XLR chassis connector for an external power supply and a 90-degree 5.5mm OD x 2.5mm ID power plug for connecting to the unit. It comes with countersunk M3 20mm mounting screws for connection to the Camera Converter.

Experience the benefits of the One Plus Adapter, which combines all the advantages of Adapter One and adds a four-pin XLR chassis connector for tapping into your power supply or battery. This adapter allows you to venture into the field with an extra battery pack to power your Camera Converter or recharge its battery with power supplies that use standard XLR connectors.

Choose the One Plus Adapter for ATEM Camera Converter for a secure, standard, low-cost, and readily available connection to an external battery or power supply. For maximum cost efficiency, substitute the laptop connector on your Camera Converter power supply for a female four-pin XLR connector and continue to use it.
